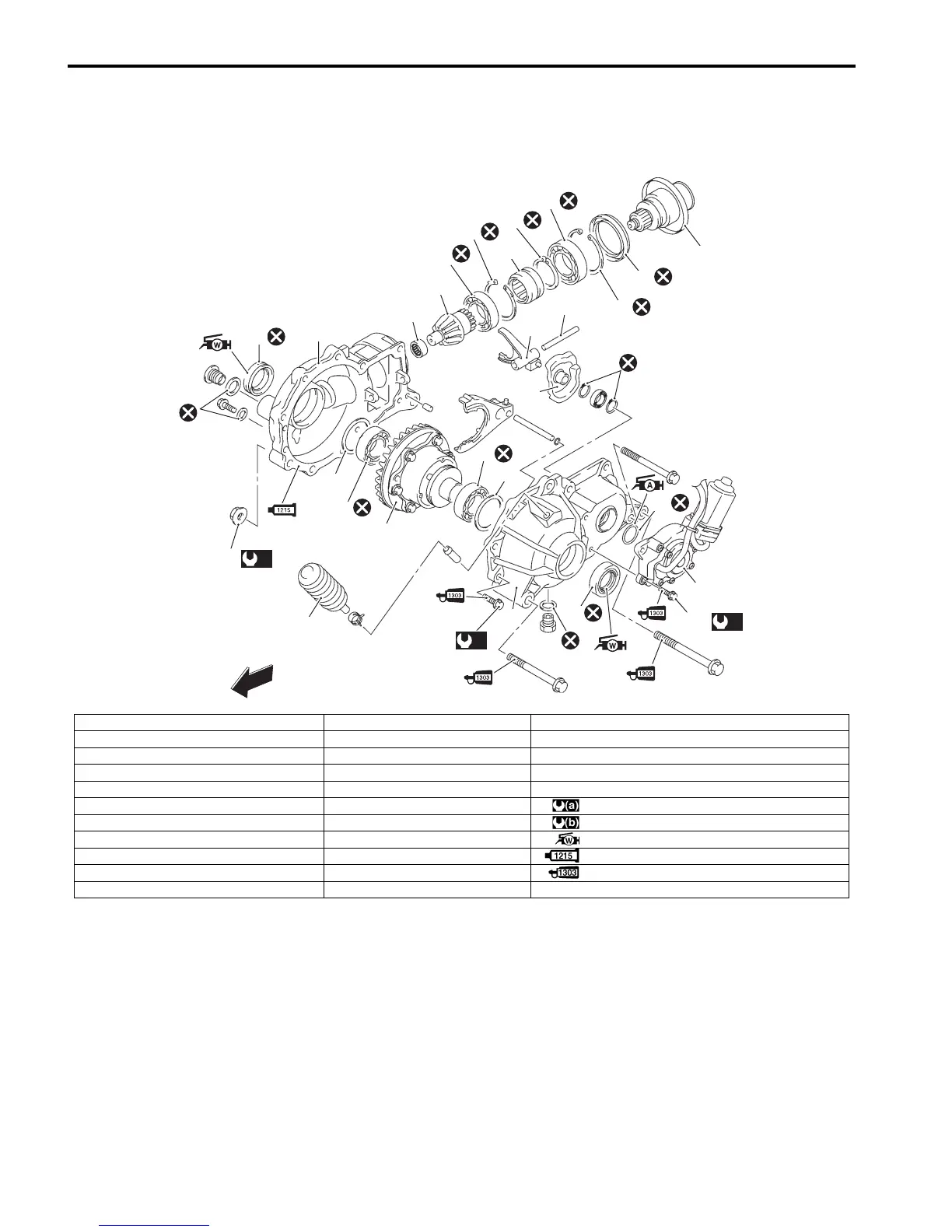

I831G1320001-06
1. Front drive (differential) gear case 12. O-ring 23. Input shaft
2. Front drive (differential) gear case cover 13. 4WD/Diff-lock Actuator 24. Breather rubber case
3. Shim (Right side) 14. Bearing 25. Front drive (differential) gear case mounting nut
4. Bearing 15. Drive bevel gear 26. Front drive (differential) gear case cover bolt
5. Front drive (differential) gear case 16. Bearing 27. Actuator mounting bolt
6. Bearing 17. Snap ring : 50 Nâ‹…m (5.0 kgf-m, 36.0 lb-ft)
7. Shim (Left Side) 18. 2WD/4WD shifting sleeve : 22 Nâ‹…m (2.2 kgf-m, 16.0 lb-ft)
8. 2WD/4WD shifting cam 19. Snap ring : Apply water resistance grease.
9. 2WD/4WD shifting fork 20. Bearing : Apply bond.
10. 2WD/4WD shifting fork shaft 21. Snap ring : Apply thread lock to the thread part.
11. Oil seal 22. Oil seal
