Wiring System
s:
9A-4

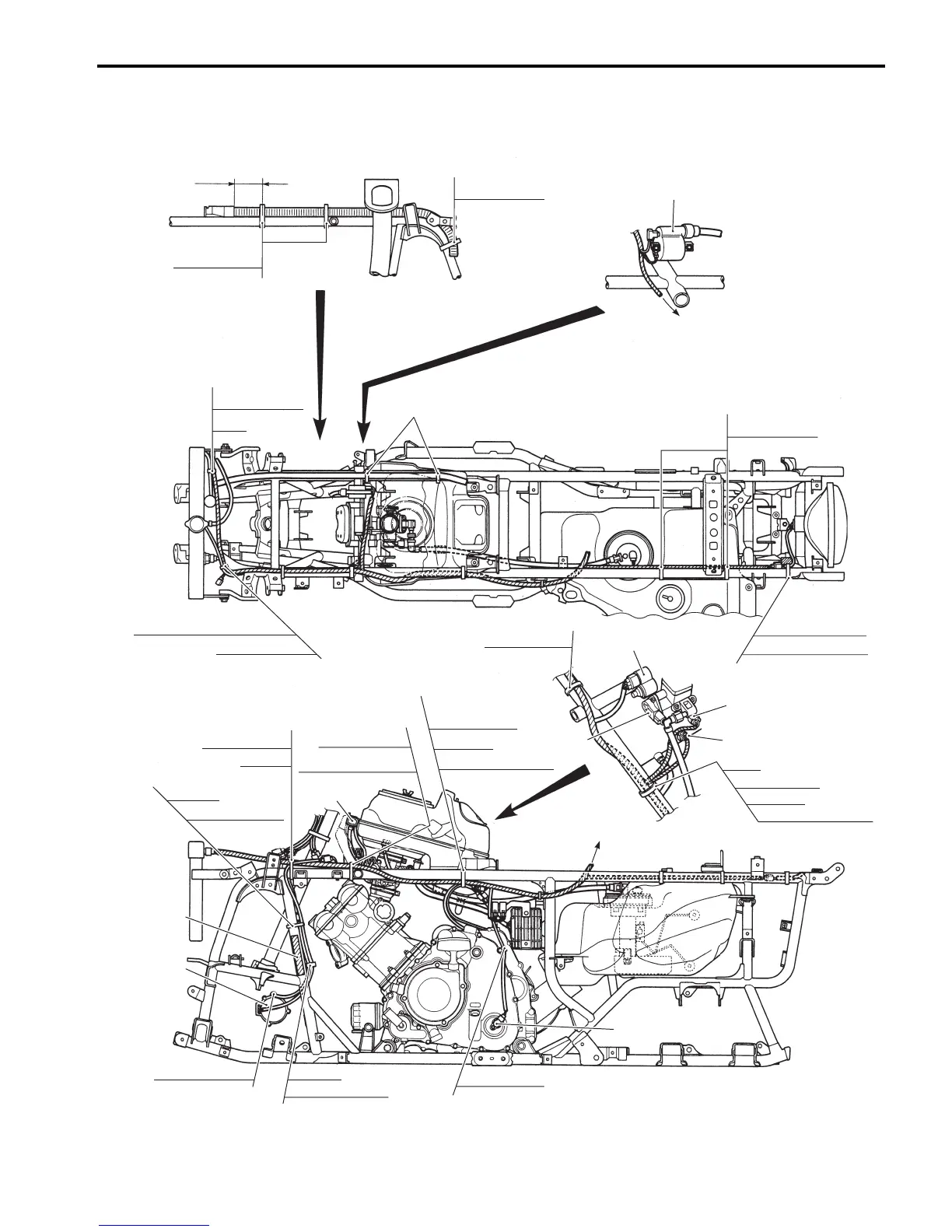

Wiring Harn
ess Routing Diagram
B831G29102002
Clamp
Wiring harness
Wiring harness
Wiring harness
60 – 80 mm (2.36 – 3.15 in)
Clamp
Wiring harness
Clamp
Clamp
Clamp
Wiring harness
Clamp
Clamp
Brake light/taillight
Back up relay (P-17)
Clamp
Wiring harness
Generator
Gear position switch
Clamp
Speed sensor
Clamp
Actuator
Clamp
Clamp
Clamp
Clamp
Actuator
Foot brake switch
Actuator
Foot brake switch
IAP sensor
IAP sensor
IAP sensor
T
o rear fender top
Speed sensor
Clamp
Wiring harness
TP sensor
Injector coupler
ECT sensor coupler
ISC valve
Ignition coil
T
o power source
Clamp
Wiring harness
Wiring harness
Wiring harness
Actuator
Gear position switch
Generator
Hose
Cooling fan thermo switch
Foot brake switch
Parking brake cable
ICES canada
label (P-28)
I831G1910903-07
534
536
