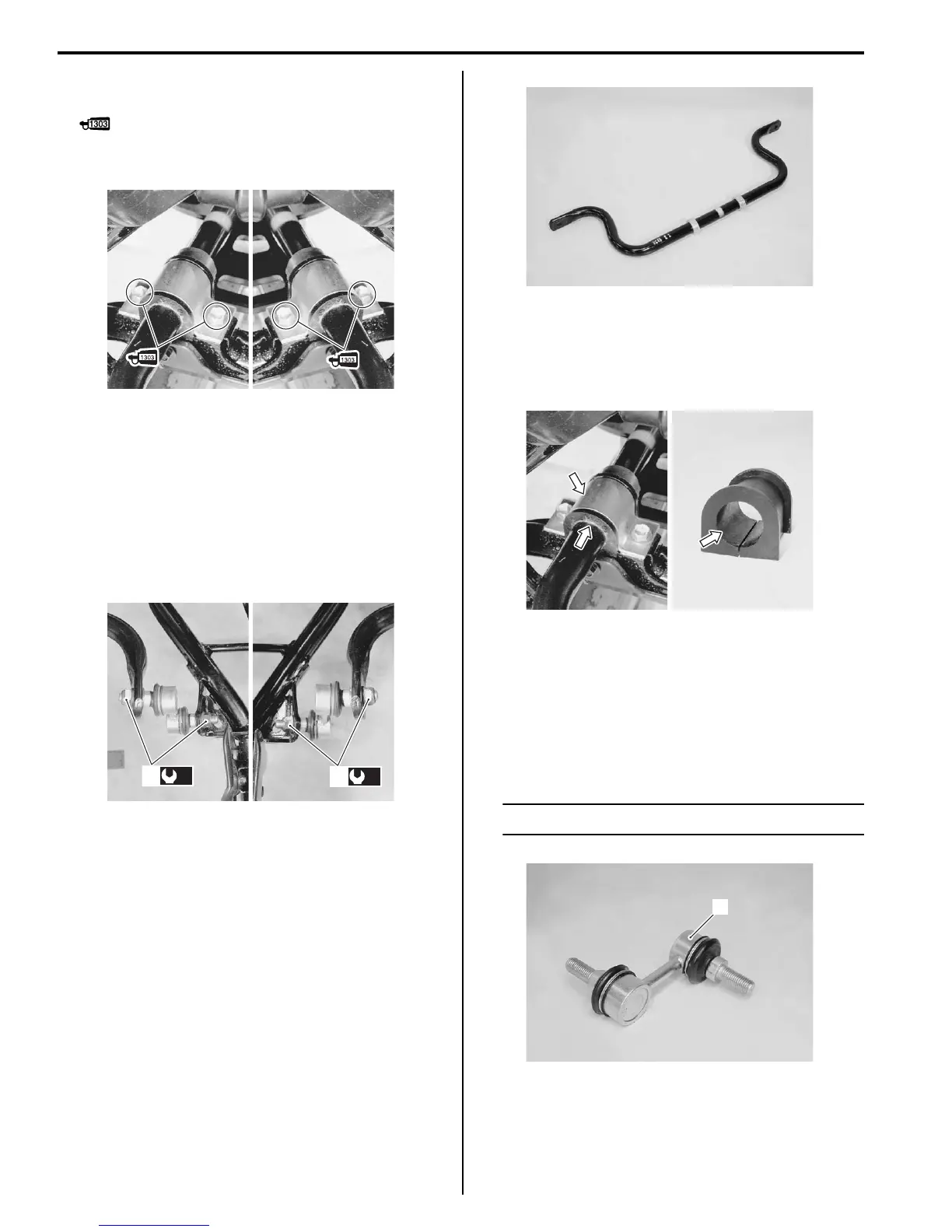

2C-15 Rear Suspension:
• Apply thread lock to the stabilizer plate mounting bolts
and tighten the bolts securely.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
• Tighten the stabilizer joint nuts (2) to the specified
torque.
Tightening torque
Rear stabilizer joint nut [Up to
5SAAR41A497105526] (a): 34 N·m (3.4 kgf-m, 24.5
lbf-ft)
Rear stabilizer joint nut [From
5SAAR41A497105527] (a): 60 N·m (6.0 kgf-m, 43.5
lbf-ft)
Stabilizer Parts Inspection
B931G22306016
Refer to “Rear Stabilizer Removal and Installation
(Page 2C-14)”.
Stabilizer Bar
Inspect for damage or deformation. If any defects are
found, replace the stabilizer bar with a new one.
Stabilizer Bushing / Plate
Inspect the bushing and plate for wear or damage. If any
defects are found, replace the bushing and/or plate with
a new one.
Stabilizer Joint
Inspect the stabilizer joint for wear or damage. If any
defects are found, replace the stabilizer joint with a new
one.
Inspect the stabilizer joint smooth movement. If there are
any abnormalities, replace the stabilizer joint with a new
one.
NOTE
Stabilizer joint (1) cannot be disassembled.
I831G1230056-03
(a)
2
(a)
2
I831G1230057-01
I831G1230058-01
I831G1230059-01
1
I831G1230060-01
