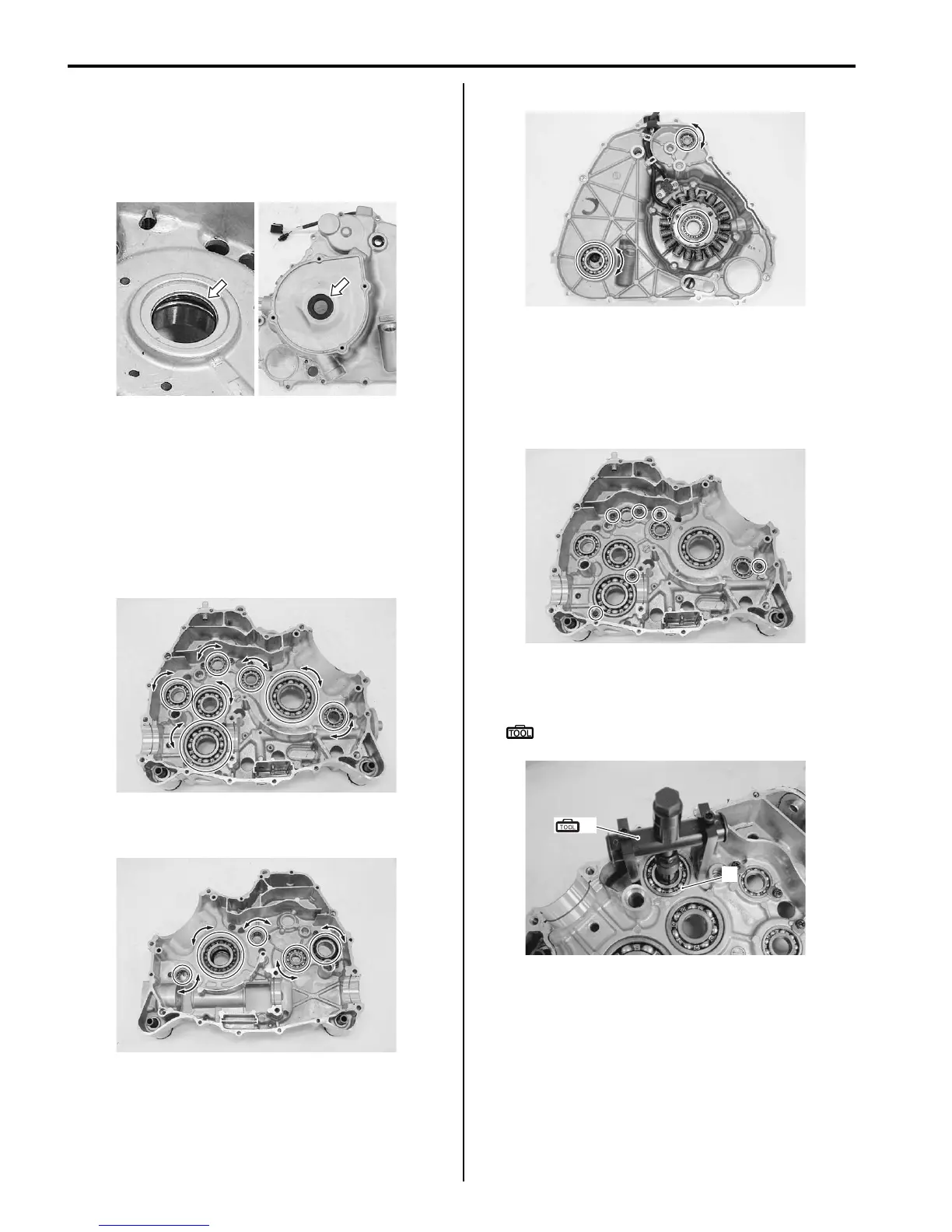

1D-61 Engine Mechanical:

Crankshaft Oil Seal Inspection

B831G21406037

Check the oil seal for damage. If any damage is found,

replace the oil seal with a new one. Refer to “Engine

Bottom Side Disassembly (Page 1D-45)” and “Bearing

Removal and Installation (Page 1D-61)”.

Bearing Inspection

B831G21406038

Refer to “Engine Bottom Side Disassembly (Page 1D-

45)”.

Rotate the bearing inner race by finger to inspect for

abnormal play, noise and smooth rotation while the

bearings are in the crankcase. Replace the bearing if

there is anything unusual.

Left crankcase

Right crankcase

Generator cover

Bearing Removal and Installation

B831G21406039

Removal

Left crankcase

1) Remove the each bearing retainers.

2) Remove the drive shaft bearing (1) with the special

tool.

Special tool

(A): 09921–20240 (Bearing remover set)

I831G1140296-01

I831G1140299-03

I831G1140300-03

I831G1140301-03

I831G1140302-01

(A)

I831G1140303-01
