1G-9 Fuel System:
7) Remove the fuel tank lower cover (4).
Installation
Install the fuel tank in the reverse order of removal.

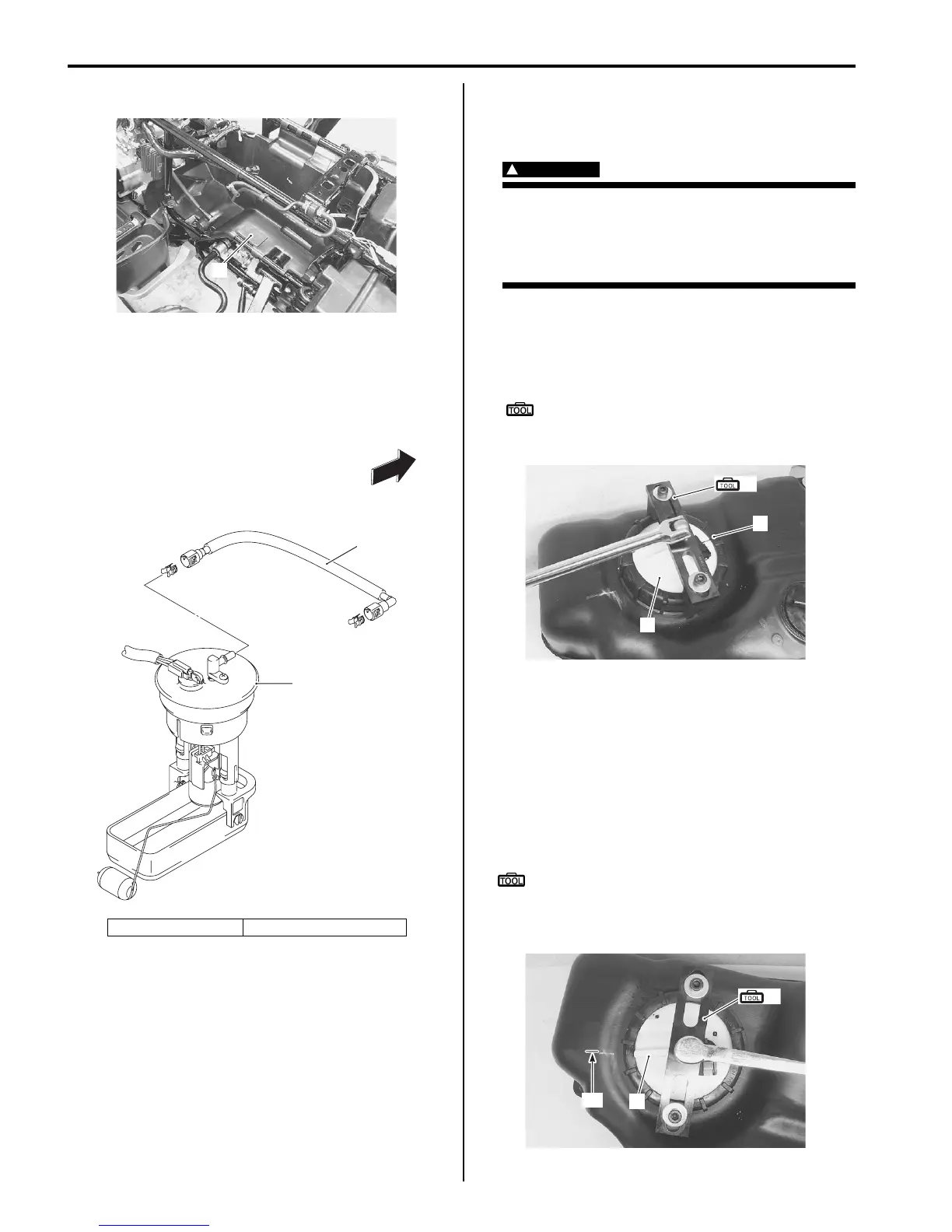

Fuel Pump Components
B831G21706010
Fuel Pump Assembly Removal and Installation
B831G21706011
Removal
WARNING
!
• Spilled gasoline should be wiped off
immediately.
• Keep away from fire or spark.
• Work in a well-ventilated area.
1) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation (Page 1G-8)”.
2) Remove the fuel pump retainer (1) with the special
tool.
Special tool
: 09941–51012 (Ring locknut wrench)
3) Remove the fuel pump assembly (2).
Installation
Install the fuel pump assembly in the reverse order of
removal.
Pay attention the following points:
• Align the fuel pump nipple (1) with alignment mark “A”
on the fuel tank.
• Tighten the fuel pump retainer with the special tool to
the specified torque.
Special tool
(A): 09941–51012 (Ring locknut wrench)
Tightening torque
Fuel pump retainer: 35 N·m (3.5 kgf-m, 25.5 lb-ft)
1. Fuel pump 2. Fuel feed hose
4
I831G1170017-01
FWD
FWD
1
2
I831G1170004-01
1
2
(A)
I831G1170018-01
(A)
1
“A”
I831G1170019-01
