Rear Suspension: 2C-12

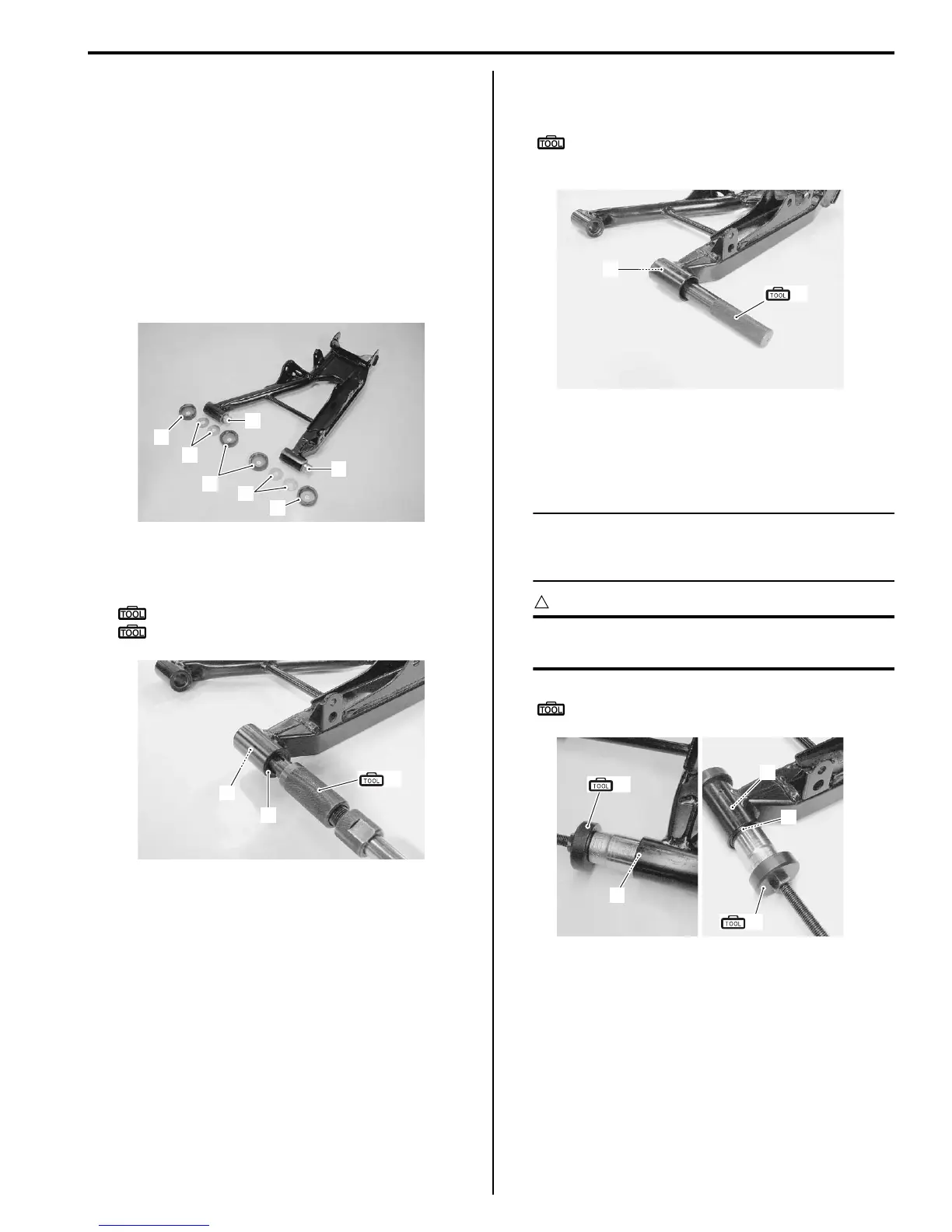

Rear Suspension Lower Arm Bushing Removal

and Installation

B931G22306013

Refer to “Rear Suspension Arm Upper / Lower Removal

and Installation (Page 2C-8)”.

Removal

1) Remove the following parts from the rear suspension

lower arm.

• Dust seal (1)

•Washer (2)

• Spacer (3)

2) Remove the rear suspension lower arm bushing (4)

along with inner dust seal (5) with the special tools.

Special tool

(A): 09923–73210 (Bearing remover)

: 09930–30104 (Rotor remover sliding shaft)

3) Remove the another inner dust seal (6) with the

special tool.

Special tool

(B): 09943–88211 (Bearing remover/

installer)

Installation

1) Install the rear lower arm bushings (1) and inner dust

seals (2) with the special tool and suitable socket.

NOTE

Position the bushings and dust seals by

referring to “Rear Suspension Assembly

Construction (Page 2C-2)”.

CAUTION

The removed bushings and dust seals must

be replaced with new ones.

Special tool

(A): 09941–34513 (Steering race installer)

I831G1230041-01

(A)

I831G1230043-03

(B)

I831G1230044-03

(A)

I831G1230045-01
