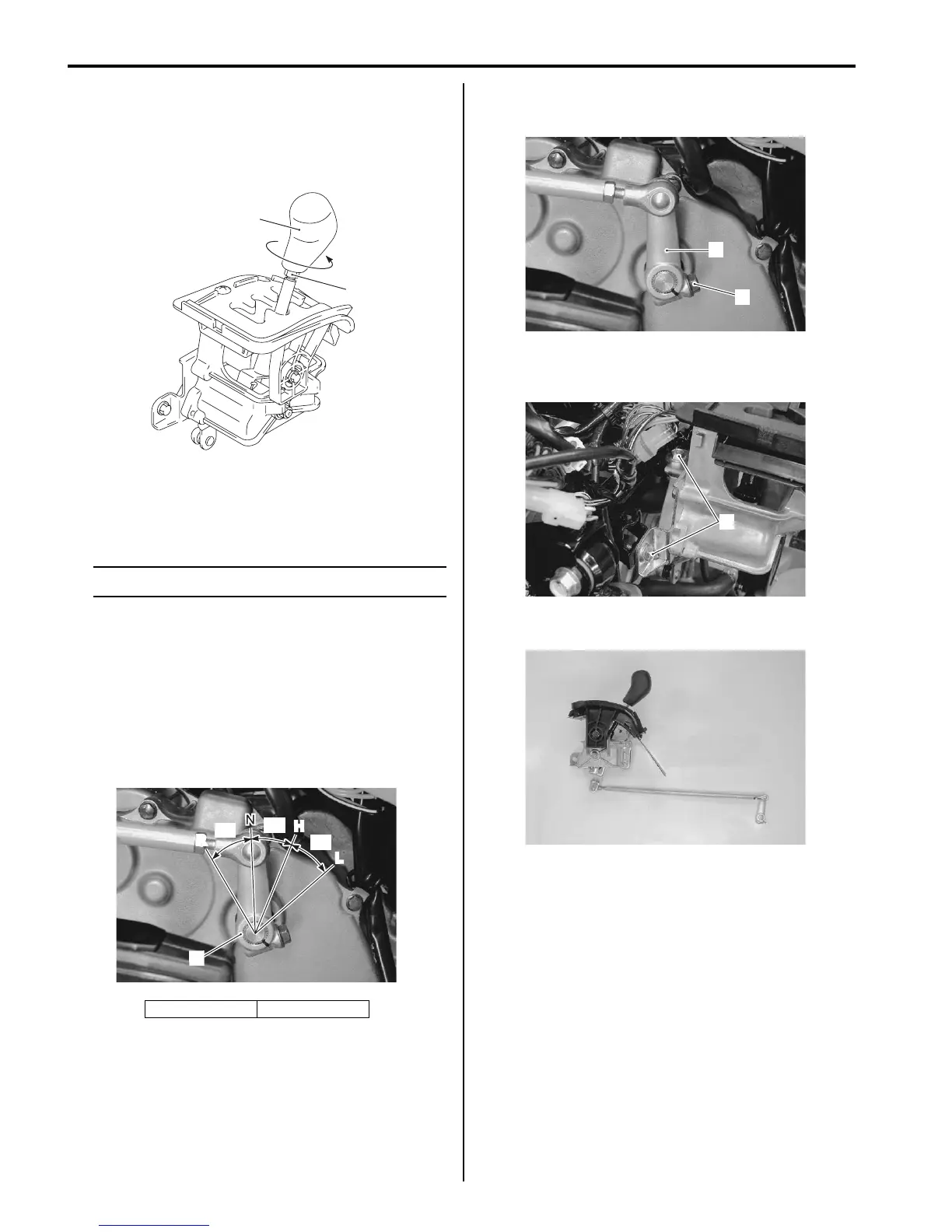

5A-24 Automatic Transmission:
Gear Shift Knob Removal and Installation
B831G25106017
Removal
1) Loosen the lock-nut (1).
2) Remove the gear shift knob (2).
Installation
Install the gear shift knob in the reverse order of
removal.
NOTE
Tighten the lock-nut securely.
Shift Lever Assembly Removal and Installation
B831G25106018
Removal
1) Keep the vehicle on a level ground.
2) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
3) Keep the gear shift arm (1) in the neutral position.
4) Loosen the bolt (2) and remove the gear shift arm
(1).
5) Remove the transfer gear shift lever mounting bolts
(3).
6) Remove the shift lever assembly.
“a”: 30° “b”: 33°
1
2
I831G1510115-01
1
R
L
H
“a”
“b”
“b”
I831G1510104-03
2
1
I831G1510105-03
3
I831G1510103-02
I831G1510106-01
To Next Page
