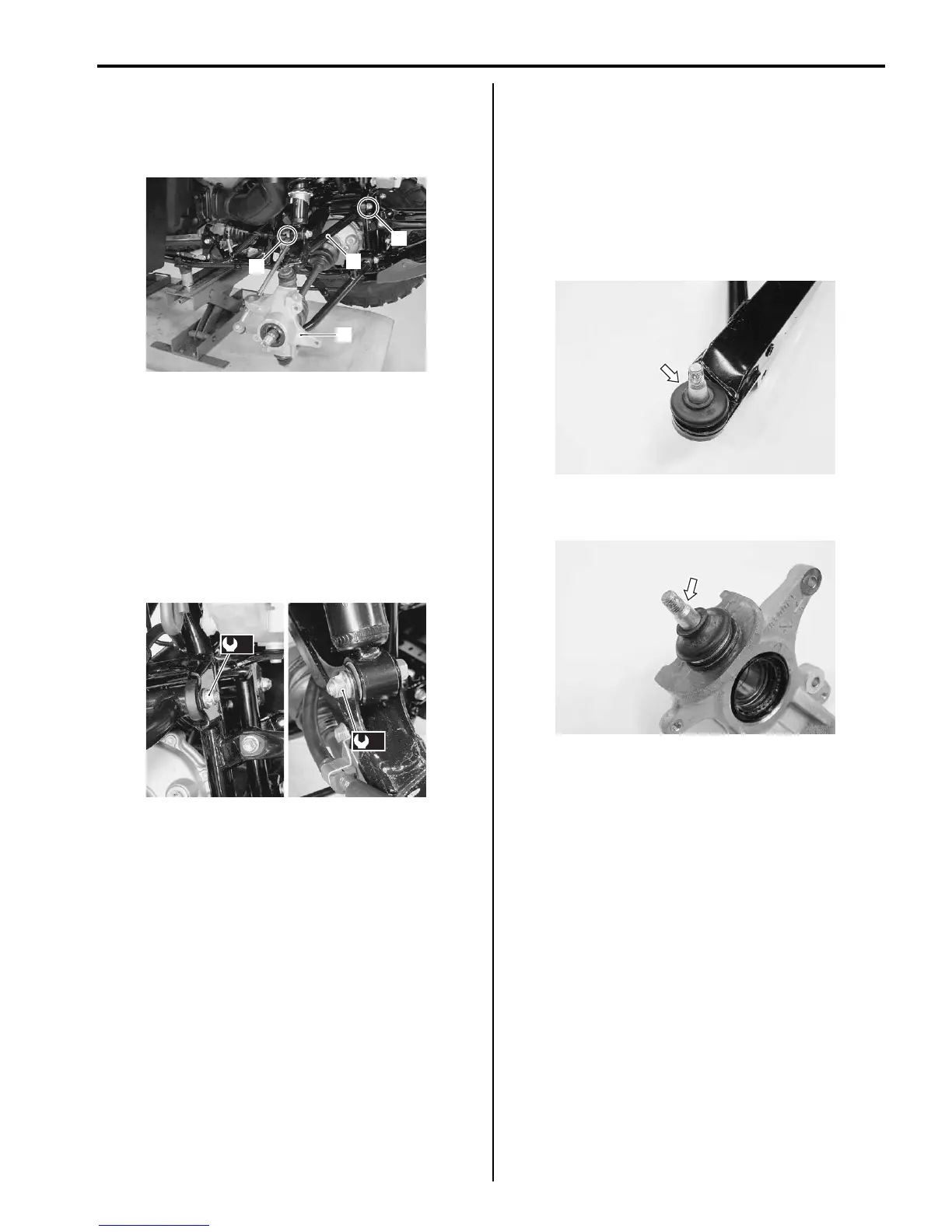

Front Suspension: 2B-10

3) Set the steering knuckle (3) and install the

suspension upper arm (4).

4) Temporarily tighten the suspension arm pivot nut

(upper) (5) and shock absorber mounting nut (6).

5) Tighten the steering knuckle end nut and tie-rod end

nut, and then install the wheel hub. Refer to “Front

Wheel Hub / Steering Knuckle Removal and

Installation (Page 2B-4)”.

6) Tighten the nuts to the specified torque.

Tightening torque

Suspension arm pivot nut (Upper) (b): 60 N·m (

6.0 kgf-m, 43.5 lb-ft)

Shock absorber mounting nut (c): 60 N·m (6.0

kgf-m, 43.5 lb-ft)

7) Install the brake hose. Refer to “Front Brake Hose

Removal and Installation in Section 4A (Page 4A-7)”.

8) Install the inner fender. Refer to “Front Side Exterior

Parts Removal and Installation in Section 9D

(Page 9D-6)”.

9) Install the front wheel assembly. Refer to “Front /

Rear Wheel Removal and Installation in Section 2D

(Page 2D-2)”.

Steering Knuckle End Inspection

B831G22206011

• Inspect the steering knuckle end for wear or damage.

If any defects are found, replace the front lower

knuckle end with a new one.

• Inspect front lower knuckle end for movement. If there

are any abnormalities, replace the front lower knuckle

end with a new one.

UPPER

LOWER

I831G1220037-02

(c)

(b)

I831G1220038-02

I831G1220039-01

I831G1220040-01
