Wheels and Tires: 2D-1
Suspension
Wheels and Tires
Precautions
Precautions for Wheel and Tire
B831G22400001
WARNING
!
• Proper tire pressure and proper tire loading are important factors. Over loading tire can lead to tire
failure and loss of vehicle control.
• Under-inflated tires make smooth cornering difficult, and can result in rapid tire wear.
• Over-inflated tires have a smaller amount of tire in contact with the load, which can contribute to
skidding and loss of control.
• Replace the wheel if find damage such as crack, nick or scratch.
• When tire replacement is necessary, the original equipment type tire should be used.
• Do not mix different types of tires on the same vehicle except in emergencies, because handling
may be seriously affected and may result in loss of control.
• Replacement wheel must be equivalent to the original equivalent wheel.
Repair Instructions

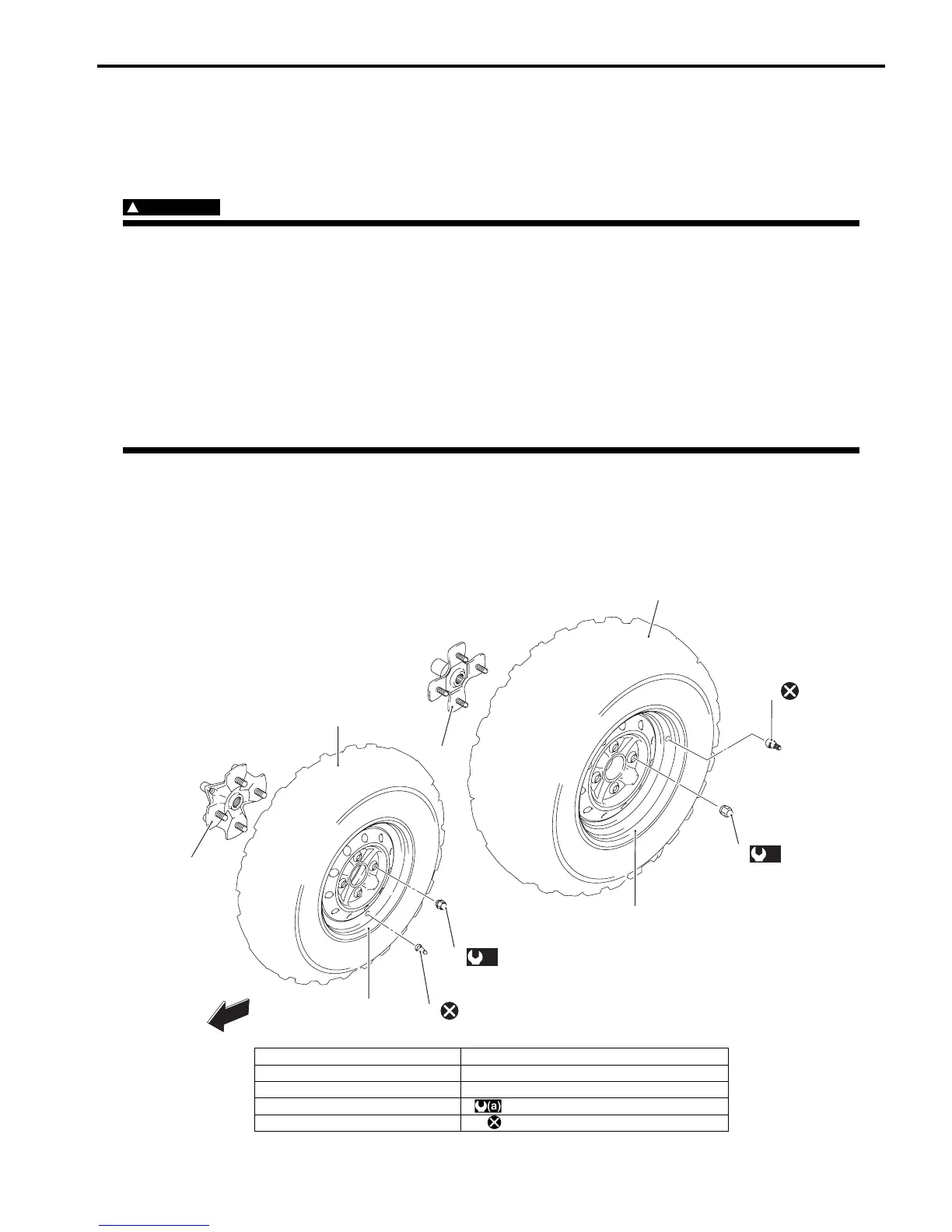

Front and Rear Wheel Components
B831G22406001
1
7
2
3
(a)
4
(a)
4
6
3
5
8
FWD
I831G1240001-01
1. Front tire 6. Rear wheel
2. Front wheel 7. Front wheel hub
3. Front wheel air valve 8. Rear wheel hub
4. Wheel nut : 60 Nâ‹…m (6.0 kgf-m, 43.5 lb-ft)
5. Rear tire : Do not reuse.
