Combination Meter / Fuel Meter / Horn: 9C-6

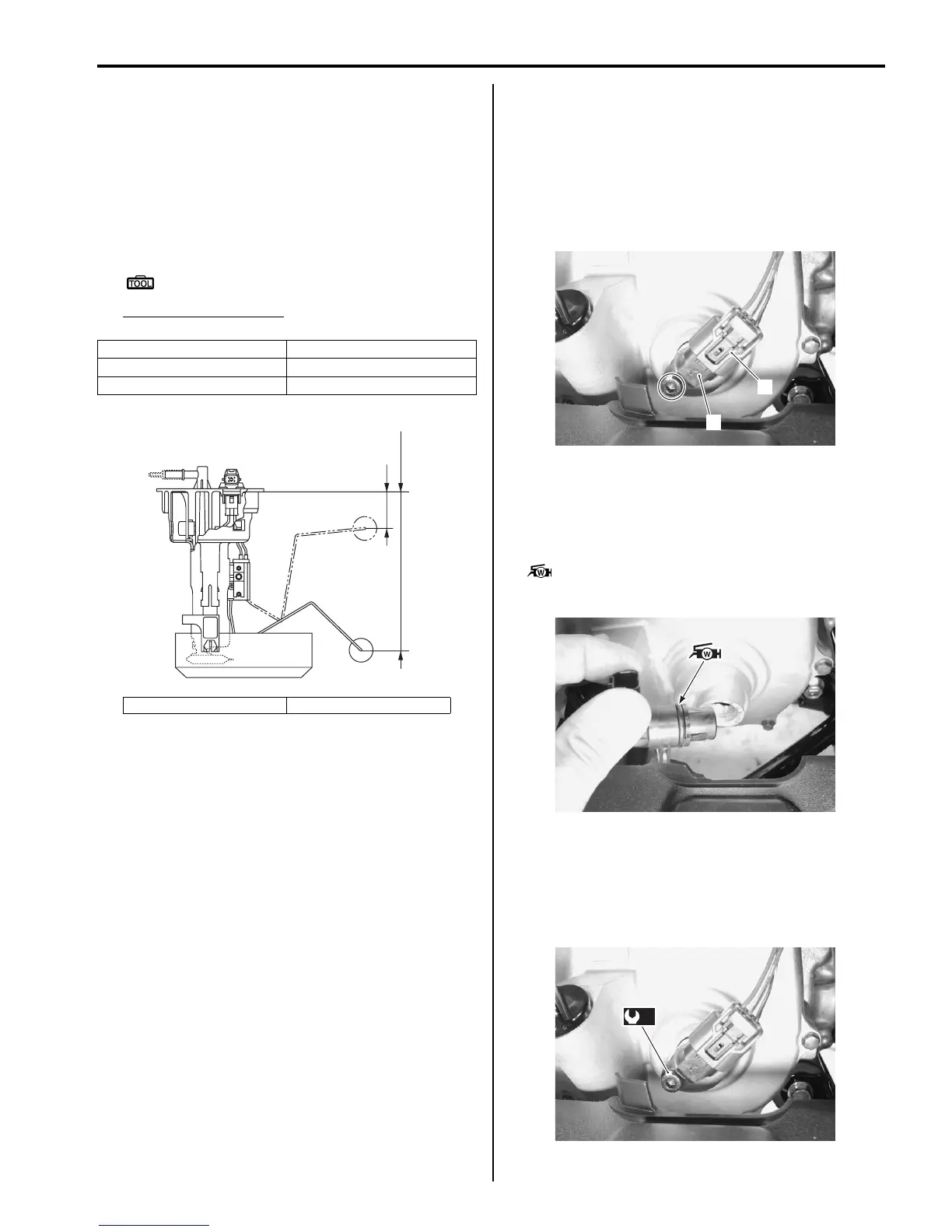

Fuel Level Gauge Inspection
B831G29306008
Inspect the fuel level gauge in the following procedures:
1) Remove the fuel pump. Refer to “Fuel Pump
Assembly Removal and Installation in Section 1G
(Page 1G-9)”.
2) Measure the resistance at each fuel level gauge in
float position. If the resistance is incorrect, replace
fuel pump with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Resistance (Ω)
3) Install the fuel pump. Refer to “Fuel Pump Assembly
Removal and Installation in Section 1G (Page 1G-
9)”.
Speedometer Inspection
B831G29306009
If the speedometer, odometer or trip meter does not
function properly, inspect the speed sensor and the
coupler connections. If the speed sensor and coupler
connections are OK, replace the combination meter unit
with a new one. Refer to “Combination Meter Removal
and Installation (Page 9C-3)”.
Speed Sensor Removal and Installation
B831G29306010
Removal
1) Remove the engine side cover. Refer to “Rear Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-9)”.
2) Disconnect the speed sensor coupler (1).
3) Remove the speed sensor (2).
Installation
Install the speed sensor in the reverse order of removal.
Pay attention to the following points:
• Apply grease to the speed sensor O-ring.
: Grease 99000–25160 (Water resistance
grease)
• Tighten the speed sensor mounting bolt to the
specified torque.
Tightening torque
Speed sensor mounting bolt (a): 10 N·m (1.0 kgf-
m, 7.0 lb-ft)
Float position Resistance
Full “a” 6.4 – 8.4 Ω
Empty “b” 216 – 222 Ω
“a”: 27.7 mm (1.09 in) “b”: 166 mm (6.54 in)
“a”
“b”
I831G1930014-01
1
2
I831G1930015-01
I831G1930016-02
(a)
I831G1930017-03
