Fuel System: 1G-12

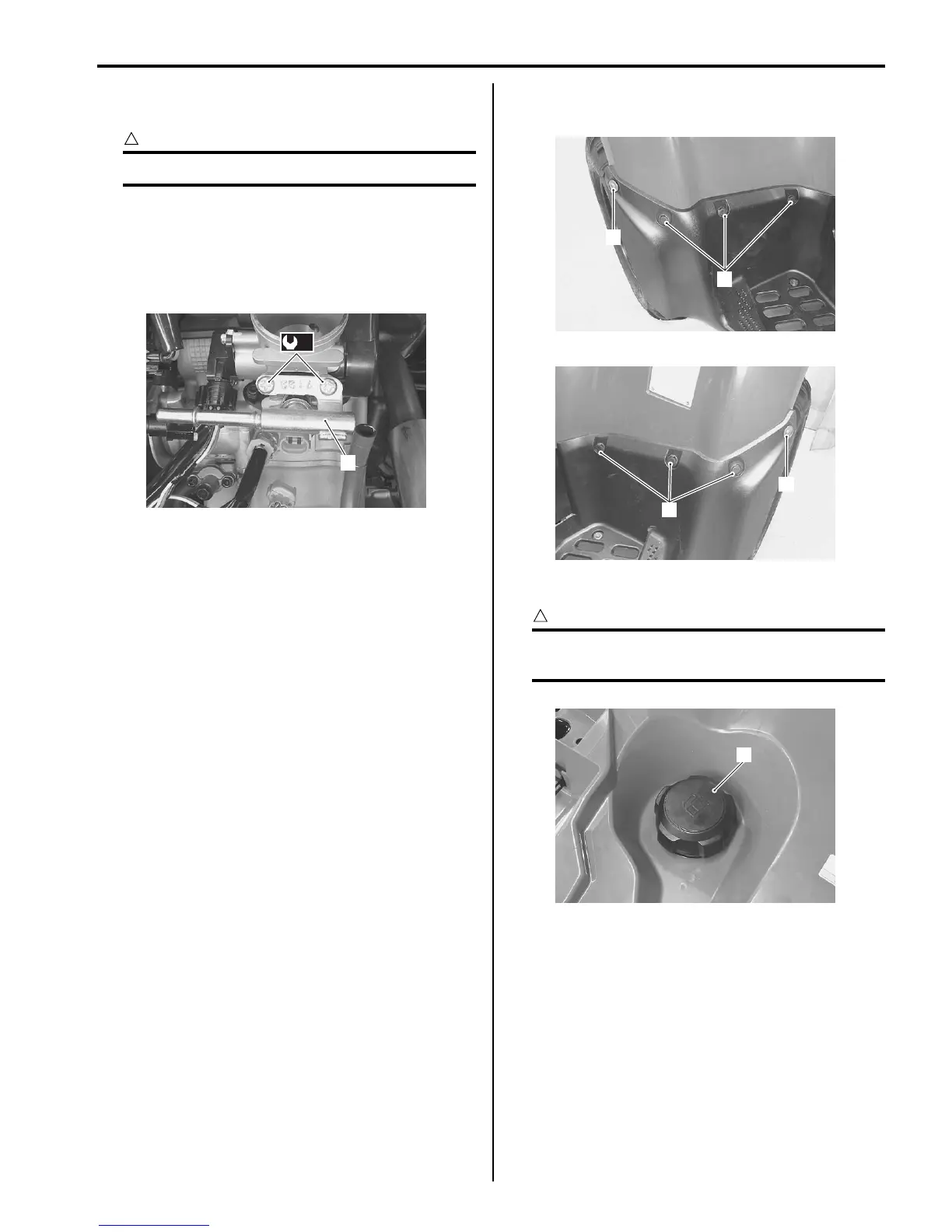

• Install the fuel delivery pipe assembly (5) to the

throttle body assembly.

CAUTION

Never turn the fuel injector while installing it.

• Tighten the fuel delivery pipe mounting screws to the

specified torque.

Tightening torque

Fuel delivery pipe mounting screw (a): 5 N·m (0.5

kgf-m, 3.5 lb-ft)

Fuel Tank Pressure Control (FTPC) Valve

Removal and Installation

B831G21706016

Removal

1) Remove the rear carrier. Refer to “Rear Carrier

Removal and Installation in Section 9E (Page 9E-5)”.

2) Remove the seat. Refer to “Seat Removal and

Installation in Section 9D (Page 9D-11)”.

3) Remove the side covers, left and right. Refer to

“Front Side Exterior Parts Removal and Installation

in Section 9D (Page 9D-6)”.

4) Remove the engine side cover. Refer to “Rear Side

Exterior Parts Removal and Installation in Section

9D (Page 9D-9)”.

5) Remove the mad guard mounting fasteners (1) and

screws (2).

6) Remove the fuel tank cap (3).

CAUTION

To prevent the fuel tank from contamination

with foreign particles, blind opening.

(a)

I831G1170028-01

I831G1170029-01

I831G1170030-01

I831G1170031-01
