Front Suspension: 2B-4

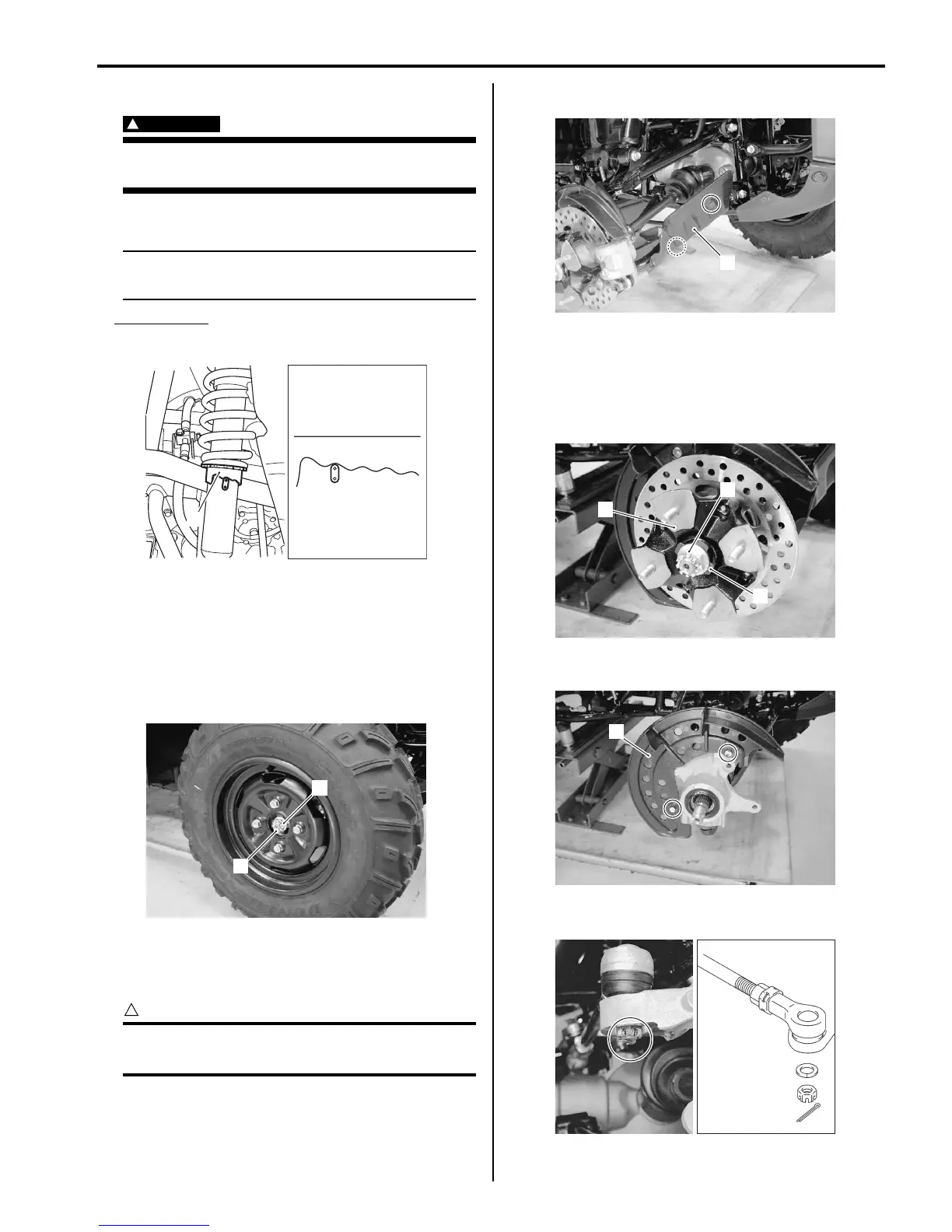

Spring Pre-load Adjustment

B831G22206006

WARNING

Be sure to adjust the spring pre-load on the

both suspensions equally.

• Turn the spring tension ring (1) to the desired position.

NOTE

Position 1 provides the softest spring tension

and position 5 provides the stiffest.

STD position

2nd position

• Install the removed parts.

Front Wheel Hub / Steering Knuckle Removal

and Installation

B831G22206007

Removal

1) Remove the cotter pin (1) and loosen the hub nut (2).

2) Remove the front wheel assembly. Refer to “Front /

Rear Wheel Removal and Installation in Section 2D

(Page 2D-2)”.

CAUTION

Make sure that the vehicle is supported

securely.

3) Remove the front drive shaft cover (3).

4) Remove the brake caliper. Refer to “Front Brake

Caliper Removal and Installation in Section 4B

(Page 4B-3)”.

5) Remove the front wheel hub (4) by removing hub nut

(5) and washer (6).

6) Remove the front disc cover (7).

7) Remove the cotter pin, tie-rod end nut and washer.

I831G1220058-01

I831G1220006-01

I831G1220007-01

I831G1220008-01

I831G1220010-01

I831G1220011-03
