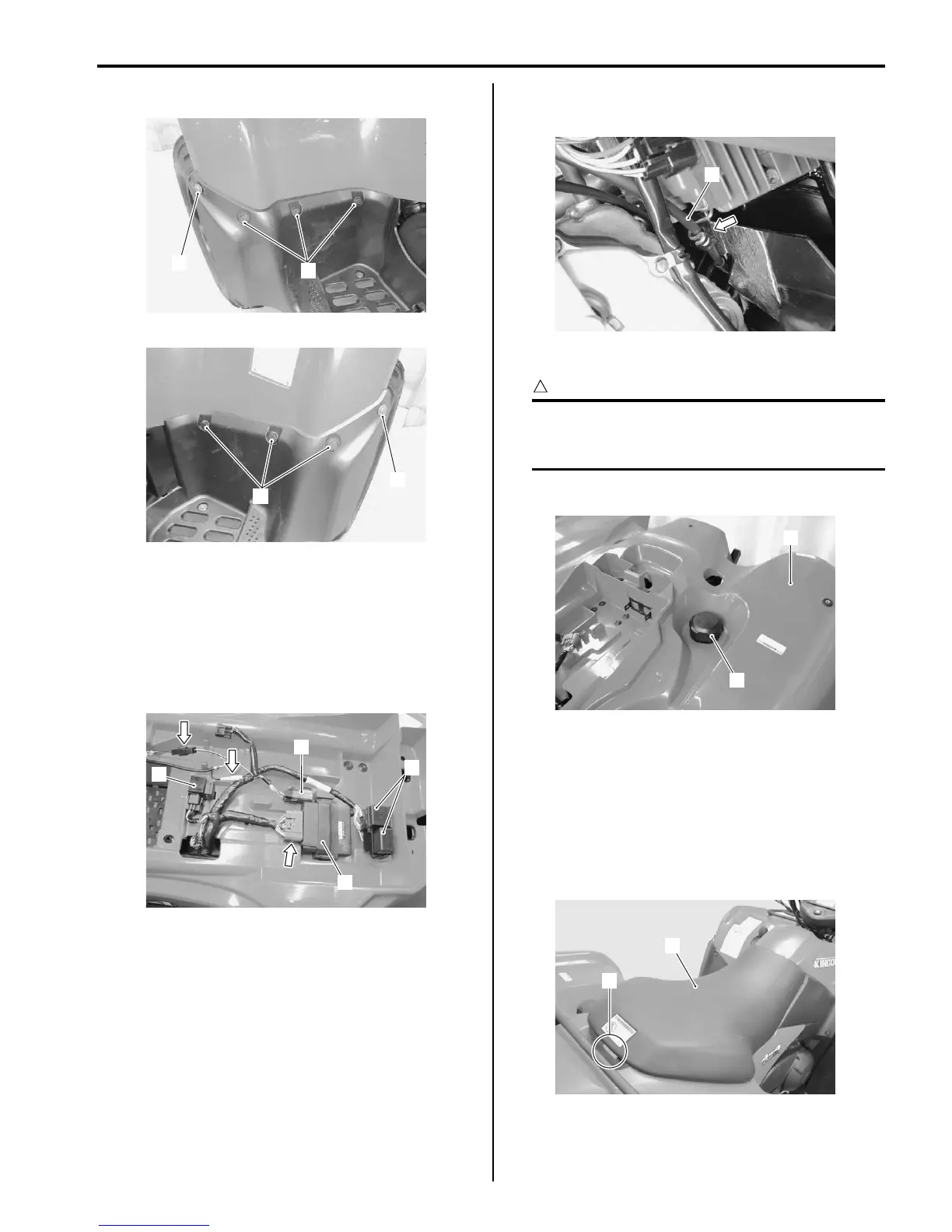

5) Remove the fasteners (1) and screws (2).

6) Remove the battery. Refer to “Battery Removal and

Installation in Section 1J (Page 1J-12)”.

7) Remove the starter relay. Refer to “Starter Relay

Removal and Installation in Section 1I (Page 1I-6)”.

8) Disconnect the couplers and remove the neutral

relay/fuse box (1), ECM (2), fuel pump relay (3) and

4WD/diff-lock relay (4).

9) Remove the parking brake cable (5) from the cable

guide.

10) Remove the fuel tank cap (6).

CAUTION

To prevent the fuel tank from contamination

with foreign particles, install the fuel tank

cap, after removing the rear fender.

11) Remove the rear fender (7).

Installation

Install the rear fender in the reverse order of removal.

Seat Removal and Installation

B831G29406007

Removal

Pull the seat lock lever (1) upward, and remove the seat

(2).

Installation

Install the seat in the reverse order of removal.
