Maintenance and Lubrication: 0B-23
Chassis Bolt and Nut Inspection
B931G20206025
Tighten chassis bolt and nut
Initially at 200 km (100 miles, 1 month) and every 1
000 km (600 miles, 3 months) thereafter

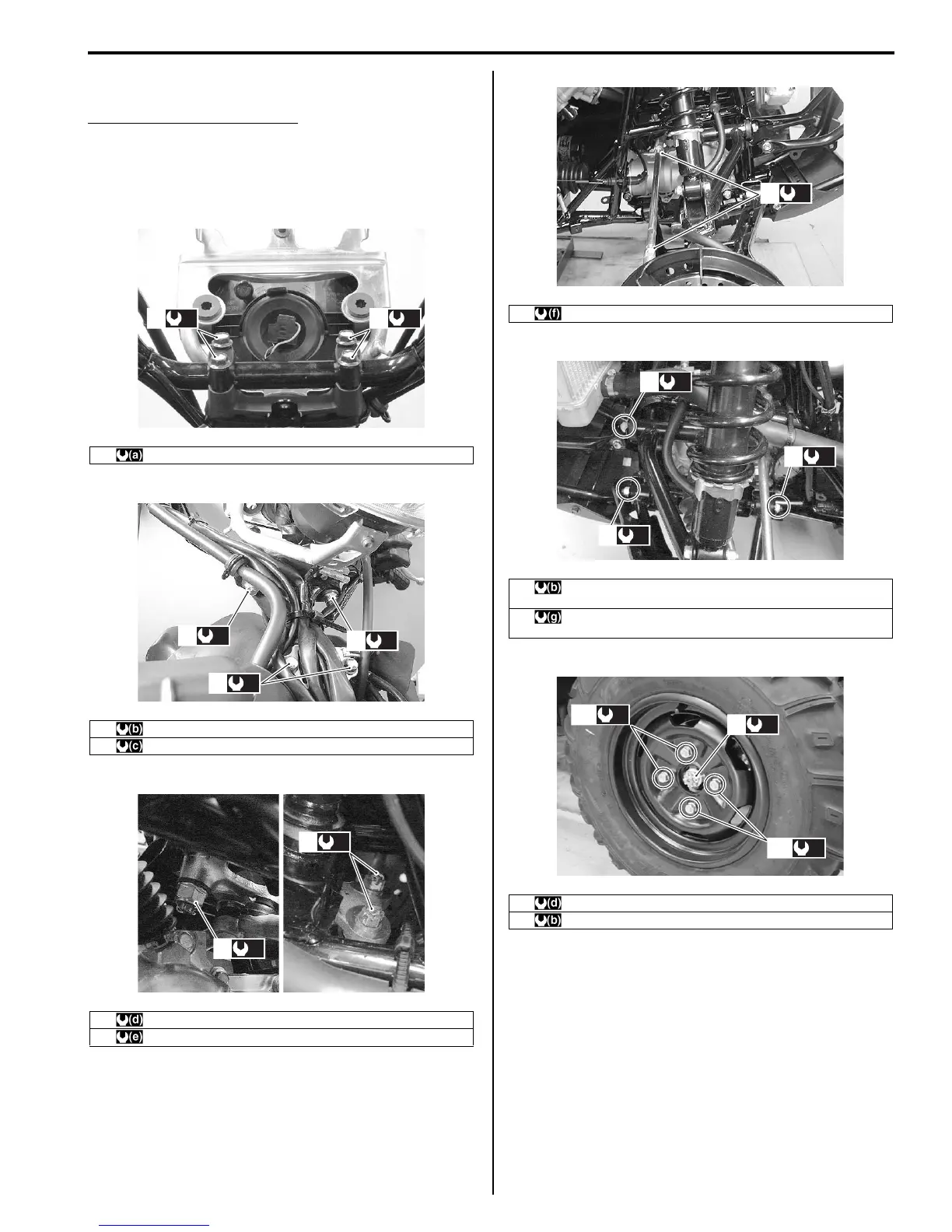

Check that all chassis bolts and nuts are tightened to
their specified torque.
1 Handlebar upper clamp bolt 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
2 Handlebar holder nut 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
3 Steering shaft holder bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
4 Steering shaft lower nut 162 N⋅m (16.2 kgf-m, 117.0 lb-ft)
5 Tie-rod end nut 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
(a)
1
(a)
1
I831G1020062-01
(b)
2
(b)
2
(c)
3
I831G1020063-01
(d)
4
(e)
5
I831G1020064-01
6 Tie-rod lock-nut 45 N⋅m (4.5 kgf-m, 32.5 lb-ft)
7 Front suspension arm pivot nut (Upper) 60 N⋅m (6.0 kgf-m, 43.5
lb-ft)
8 Front suspension arm pivot nut (Lower) 65 N⋅m (6.5 kgf-m, 47.0
lb-ft)
9 Front hub nut 110 N⋅m (11.0 kgf-m, 79.5 lb-ft)
10 Front wheel set nut 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
(f)
6
I831G1020065-01
(b)
7
(g)
8
(g)
8
I831G1020060-02
(b)
10
(b)
10
(d)ޓ
9
I831G1020066-03
