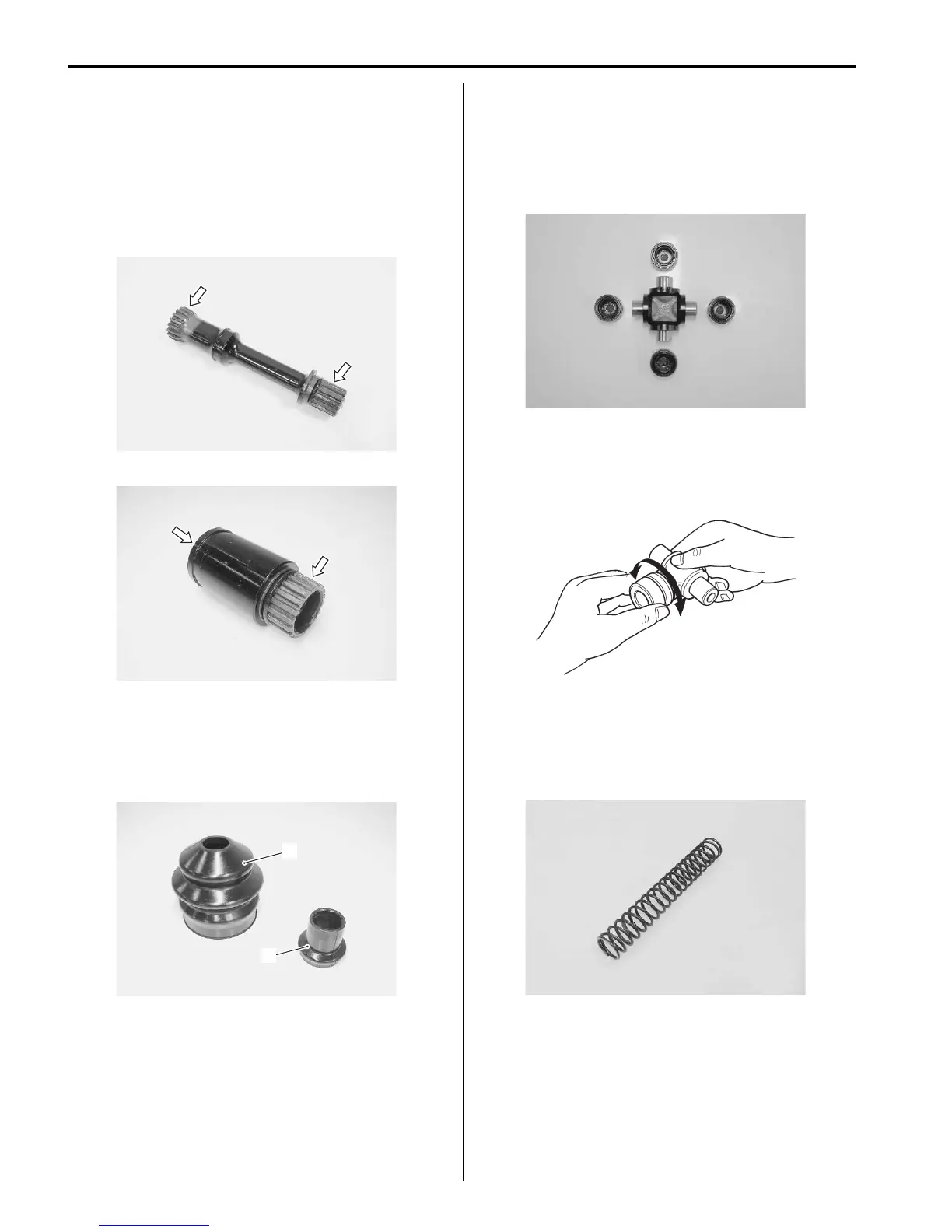

3D-22 Propeller Shafts:
Rear Propeller Shaft Related Parts Inspection
B831G23406015
Refer to “Rear Propeller Shaft Removal and Installation
(Page 3D-17)”.
Rear Propeller Shaft / Rear Propeller Shaft Joint
Inspect the rear propeller shaft and rear propeller shaft
joint for wear or damage. If any defects are found,
replace it with a new one.
Boots
Inspect the rear output joint boot (1) and propeller shaft
joint boot (2) for crack or damage. If any defects are
found, replace the boot with a new one.
Universal Joint
Inspect the universal joint in the following procedures:
1) Inspect the universal joint and outer surface of the
bearing for scuffing, wear or damage. If any defects
are found, replace the bearings and universal joint
as a set.
2) Insert the universal joint to the bearing and check the
play by turning the universal joint, as shown in the
figure. If excessive play is found, replace the
bearings and universal joint as a set.
Rear Propeller Shaft Spring
Inspect the rear propeller shaft spring for wear or
damage. If any defects are found, replace it with a new
one.
I831G1340084-01
I831G1340085-01
1
2
I831G1340086-01
I831G1340087-01
I831G1340094-01
I831G1340089-01
