1D-5 Engine Mechanical:

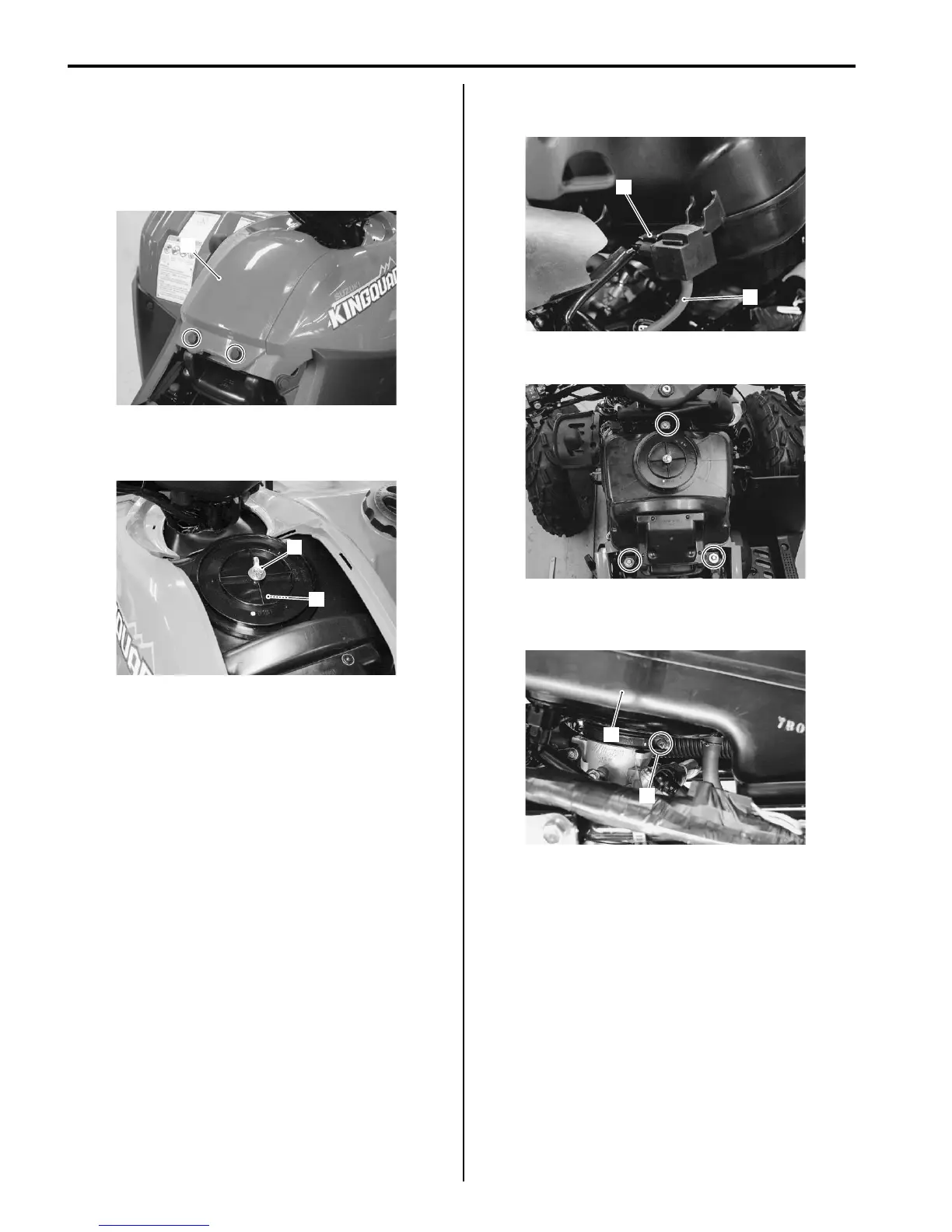

Air Cleaner Element Removal and Installation
B831G21406002
Removal
1) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D (Page 9D-11)”.
2) Remove the air cleaner box cover (1).
3) Remove the air cleaner element bolt (2).
4) Remove the air cleaner element (3).
Installation
Installation in the reverse order of removal.
Air Cleaner Element Inspection and Cleaning
B831G21406003
Refer to “Air Cleaner Element Inspection and Cleaning in
Section 0B (Page 0B-3)”.
Air Cleaner Box Removal and Installation
B831G21406004
Removal
1) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
2) Disconnect the IAP sensor lead wire coupler (1) and
vacuum hose (2).
3) Remove the air cleaner box mounting bolts.
4) Loosen the throttle body clamp screw (3) and
remove the air cleaner box (4).
1
I831G1140007-02
2
3
I831G1140008-01
1
2
I831G1140011-01
I831G1140012-01
3
4
I831G1140013-01
To Next Page
