Transfer: 3C-17

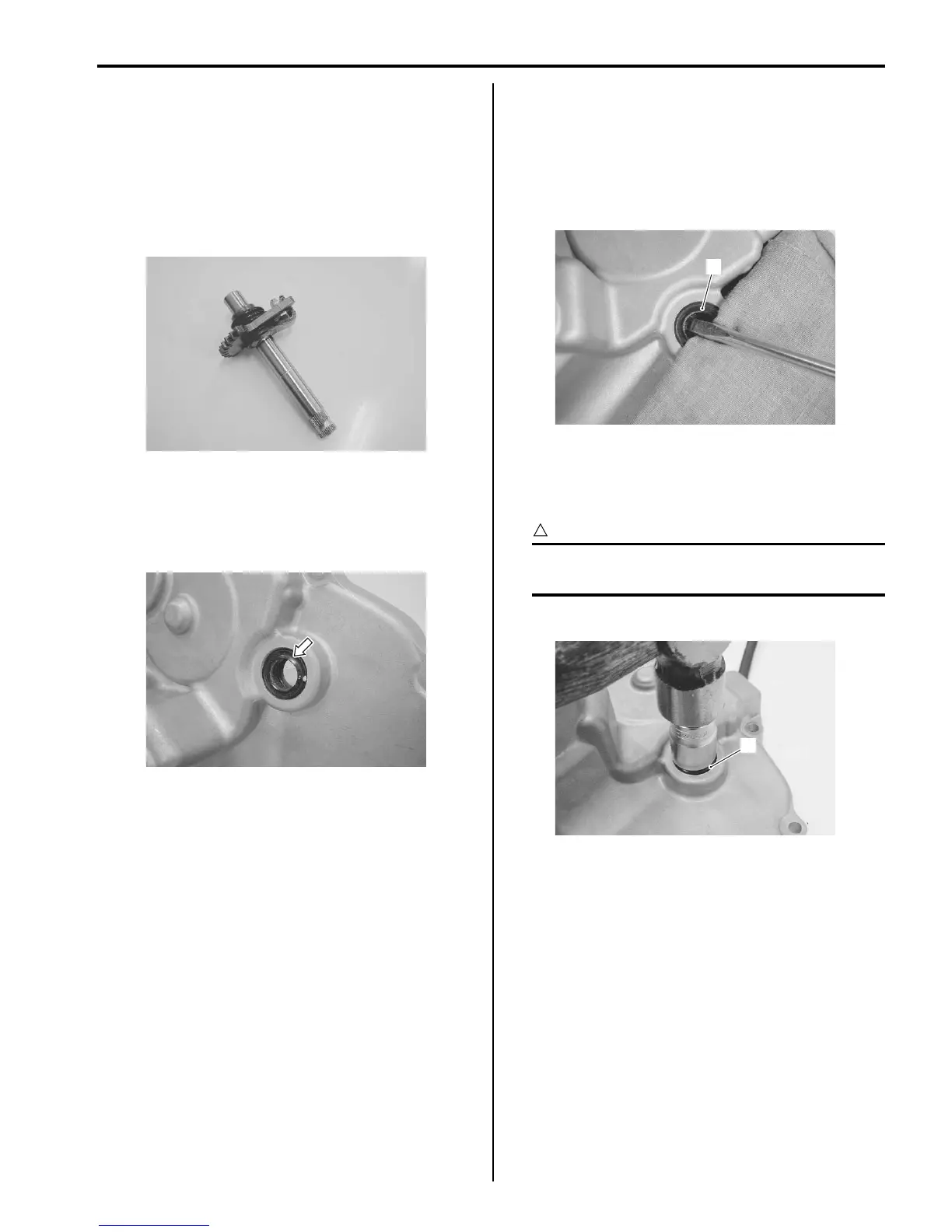

Gearshift Linkage Inspection
B831G23306015
Refer to “Gearshift Shaft No. 2 / Gearshift Cam Plate
Removal and Installation (Page 3C-14)”.
Gearshift Shaft
Check the gearshift for bend or wear.
Check the return spring for damage or fatigue.
If any defects are found, replace the defective part(-s).
Gearshift Shaft Oil Seal
Inspect the gearshift shaft oil seal lip for damage or
wear. If any defect are found, replace the oil seal with a
new one.
Gearshift Shaft Oil Seal Removal and
Installation
B831G23306016
Removal
• Remove the generator cover. Refer to “Generator
Removal and Installation in Section 1J (Page 1J-4)”.
• Remove the gearshift shaft oil seal (1).
Installation
Install the oil seal in the reverse order of removal. Pay
attention to the following points:
CAUTION
!
The removed oil seal must be replaced with
new one.
• Install the oil seal (1) with a suitable socket wrench.
• Install the generator cover. Refer to “Generator
Removal and Installation in Section 1J (Page 1J-4)”.
I831G1330058-01
I831G1330059-01
1
I831G1330060-01
1
I831G1330061-01
