Toshiba e-STUDIO556 User Manual

3
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
OUTLINE OF THE MACHINE
3 - 73
3.13 Developer Unit
3.13.1 Construction
This chapter describes about the following units related to the development process, parts, control
circuit, etc.
• Toner cartridge drive unit
• Toner recycle unit
• Developer unit
- Developer material
- Mixer unit
- Paddle
- Transport sleeve (magnetic roller)
- Upper/Lower developer sleeve
- Doctor blade
- Auto-toner sensor
- Scattered toner recovery roller
• Developer unit drive section

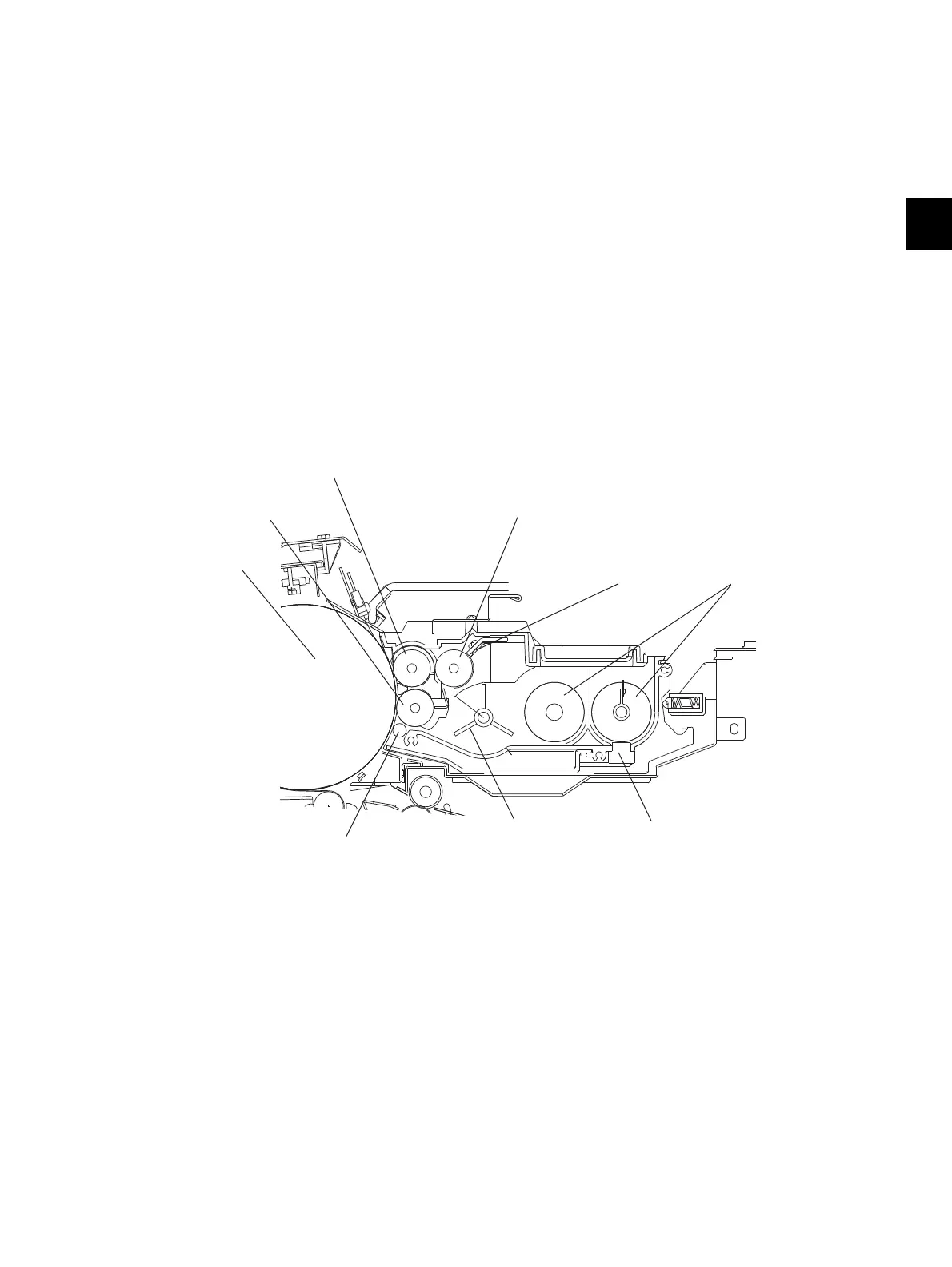

Fig. 3-44
Auto-toner sensor
Paddle
Mixer unit
Doctor blade
Drum
Upper developer sleeve
Transport sleeve
Lower developer sleeve
Scattered toner recovery roller
