4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 113

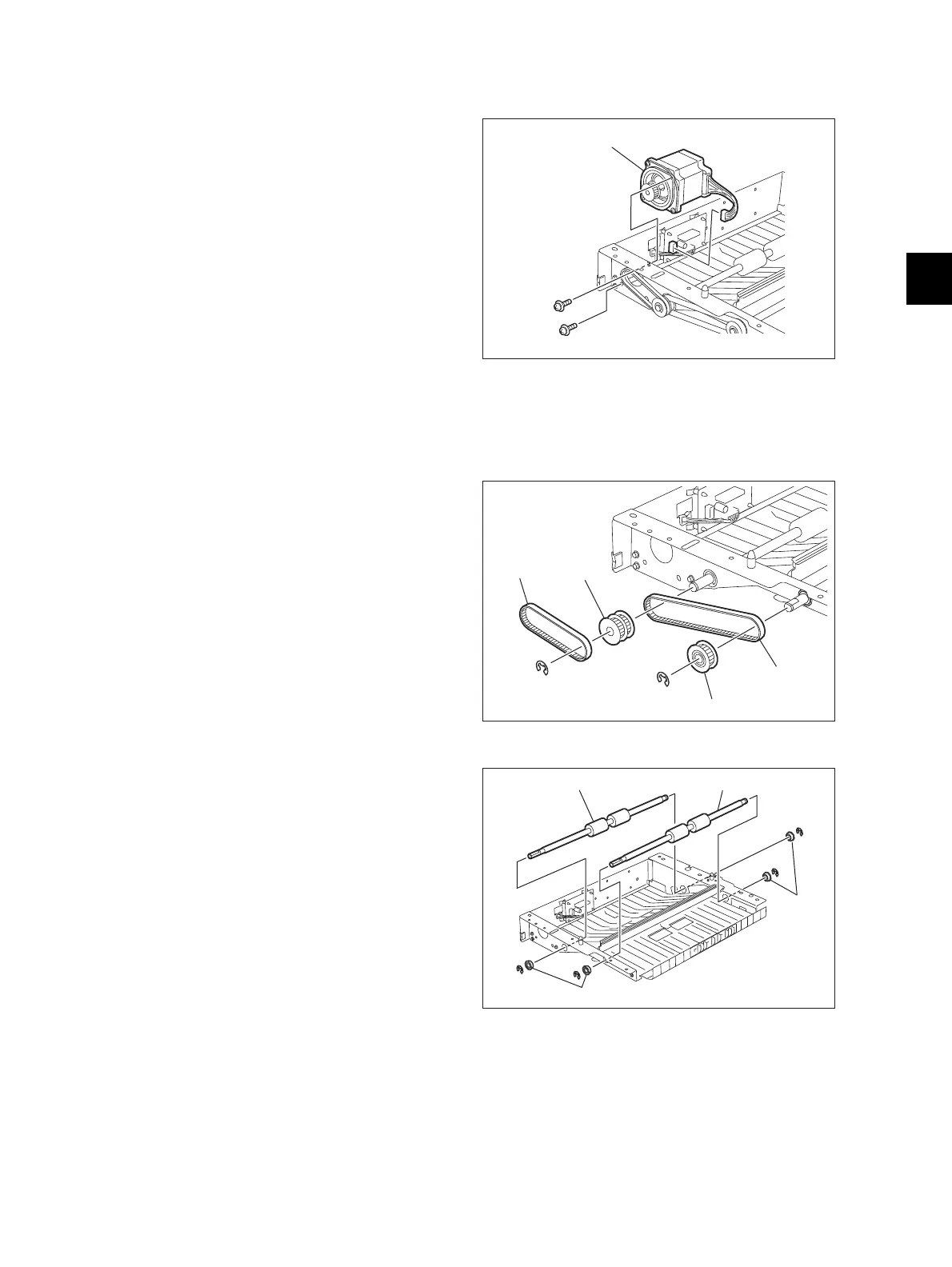

4.11.9 Reverse motor [M19]
4.11.10 Reverse roller-1 / Reverse roller-2
(1) Take off the reverse section driving unit.
( P.4-112 "4.11.8 Reverse section driving
unit / Reverse motor driving PC board
(MOT2-RV board)")
(2) Disconnect 1 connector, remove 2 screws
and then take off the reverse motor.
Fig. 4-316
(1) Take off the reverse section driving unit.
( P.4-112 "4.11.8 Reverse section driving
unit / Reverse motor driving PC board
(MOT2-RV board)")
(2) Take off the reverse motor.
( P.4-113 "4.11.9 Reverse motor [M19]")
(3) Remove 2 E-rings, 2 gears and 2 belts.
Fig. 4-317
(4) Remove 2 E-rings and 2 bearings to take off
the reverse roller-1.
(5) Remove 2 E-rings and 2 bearings to take off
the reverse roller-2.
Fig. 4-318
Reverse motor
Gear
Gear
Belt
Belt
Reverse roller-1Reverse roller-2
Bearing
Bearing
