4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 31
4.5 Paper Feeding System
4.5.1 Paper feeder unit / Bypass feed unit
(1) Take off the right rear cover.
( P.4-4 "4.1.9 Right rear cover")
(2) Open the right center cover to disconnect 1
connector.

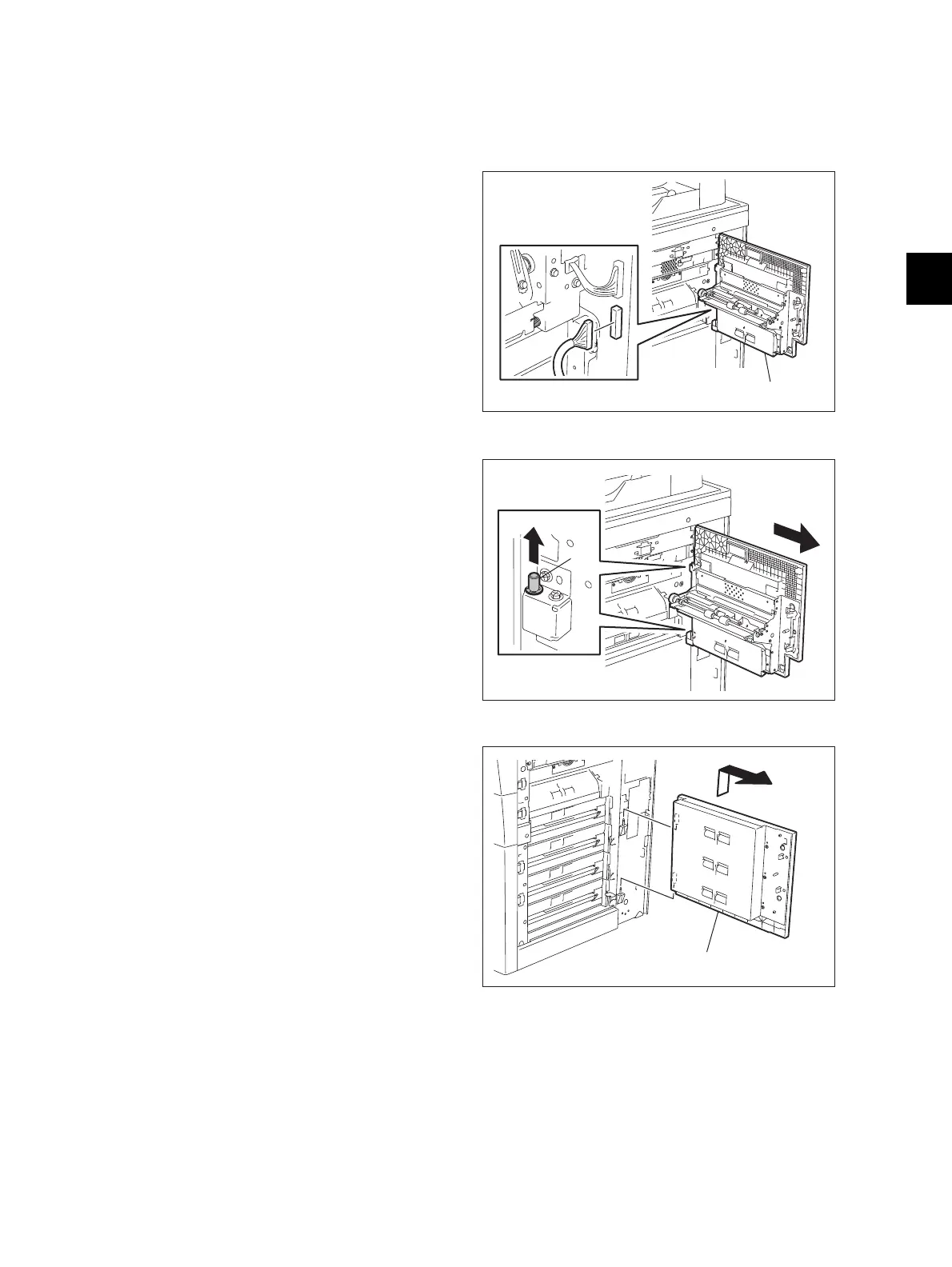

Fig. 4-86
(3) Remove 2 pins and take off the bypass feed
unit by lifting it and the feeder side center
cover up.
Fig. 4-87
(4) Open the right lower cover and take it off by
lifting it up.
(5) Pull out the drawer completely.
If the drawer is not pulled out completely,
when the paper feeder unit is taken off, the
sensor may get damaged.
Fig. 4-88
Bypass feed unit
Pin
Right lower cover
To Next Page
