DISASSEMBLY AND REPLACEMENT
4 - 48

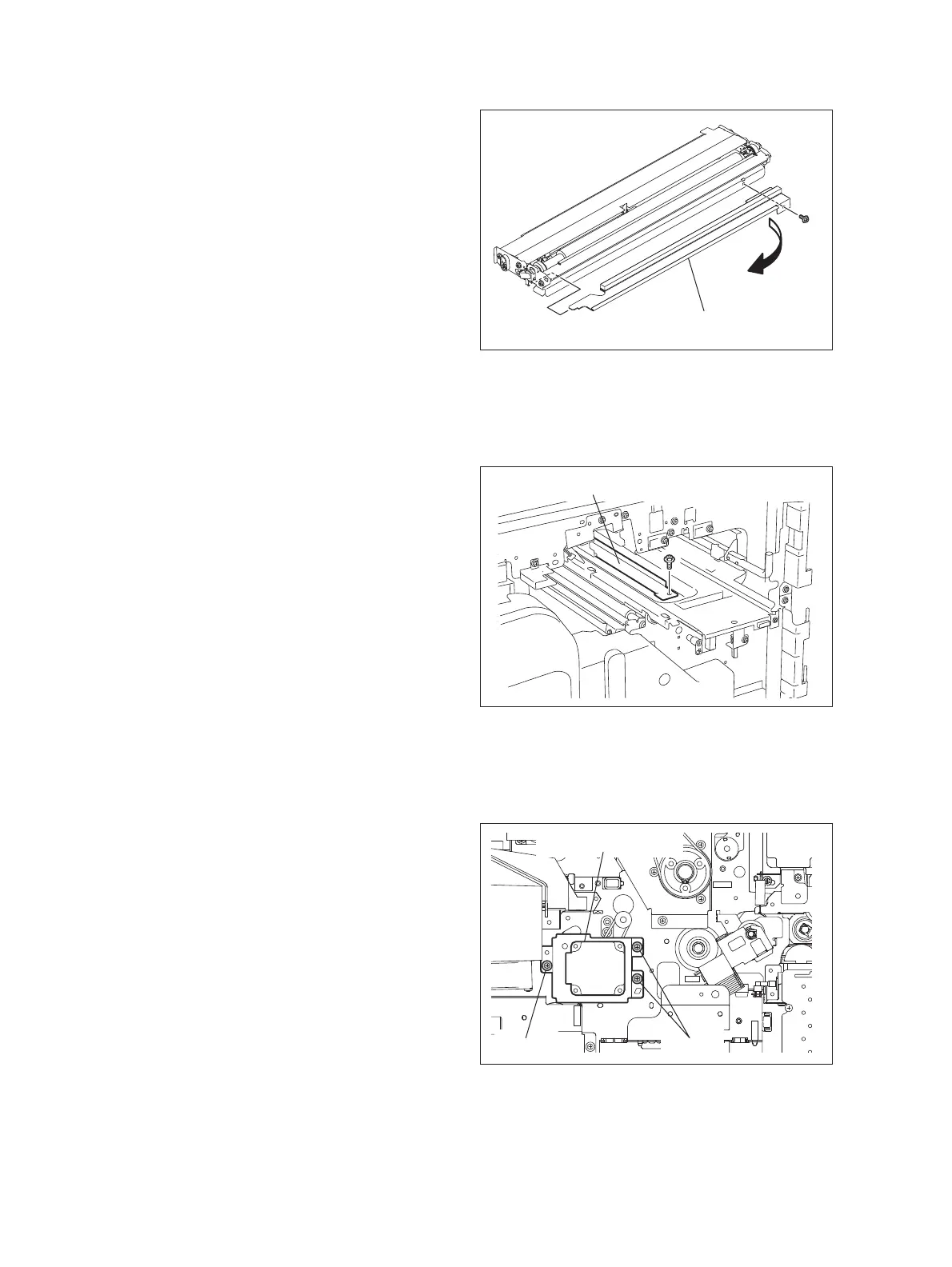

[ 3 ] Paper dust removal brush 1 (for the rubber registration roller)
4.5.8 Paper dust removal brush 2 (for the metallic registration roller)
4.5.9 Registration motor (M16)
(1) Remove 1 screw and take off the paper dust
removal brush.
Fig. 4-136
(1) Take off the developer unit.
( P.4-73 "4.8.8 Developer unit")
(2) Remove 1 screw and take off the paper dust
removal brush.
Fig. 4-137
(1) Take off the SYS board.
( P.4-5 "4.1.13 Rear cover")
(2) Remove 3 screws and take off the flywheel.
(3) Remove 3 screws and take off the motor with
the bracket.
(4) Remove 2 screws and take off the motor.
Fig. 4-138
Paper dust removal brush-1
Paper dust removal brush-2
Registration motor
Screw Screw
