DISASSEMBLY AND REPLACEMENT
4 - 89

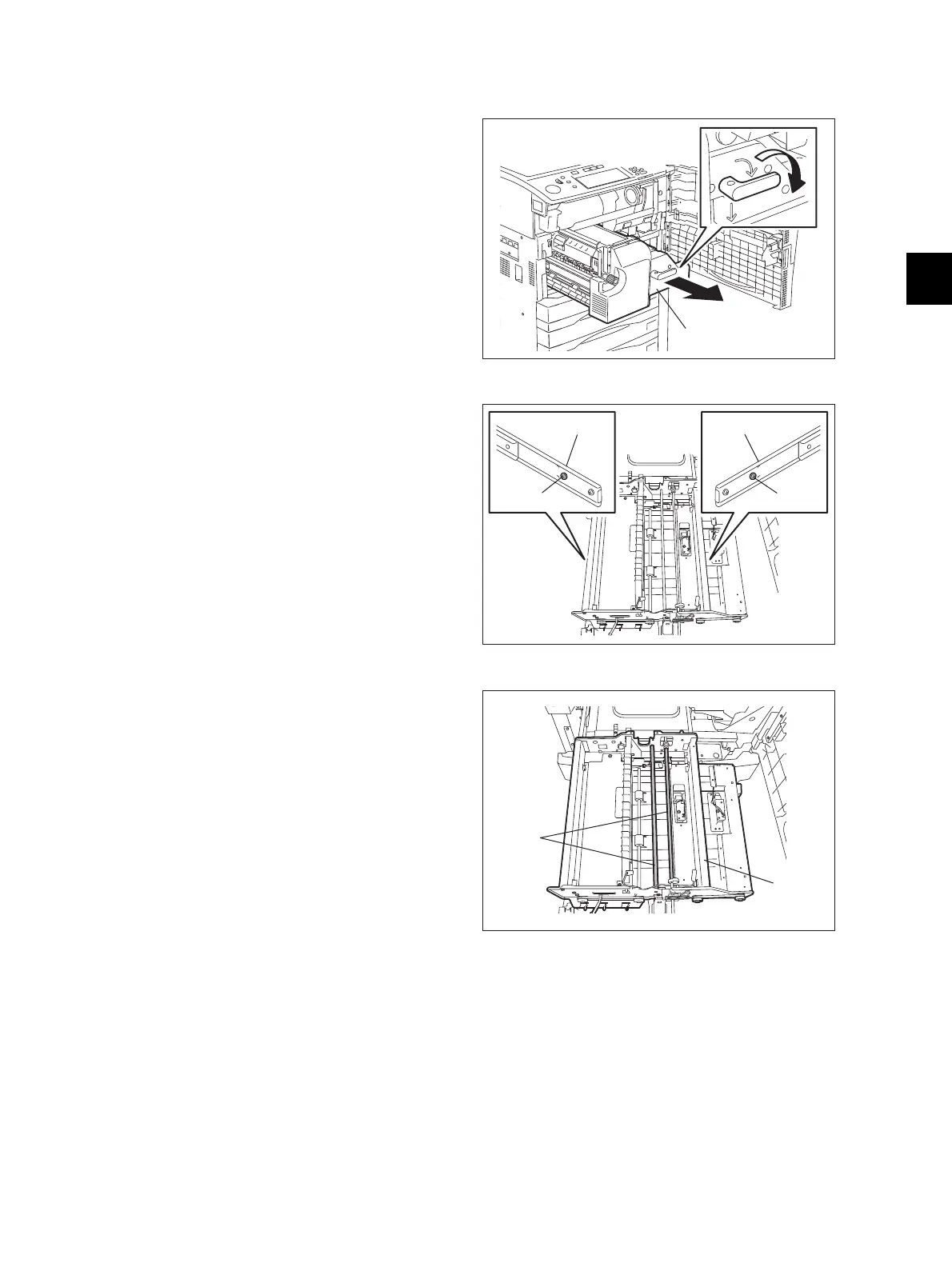

4.9.5 Transfer/Transport unit
(1) Take off the transfer unit.
( P.4-85 "4.9.1 Transfer unit")
(2) Take off the fuser unit.
( P.4-96 "4.10.2 Fuser unit")
Note:
Make sure to take off the fuser unit and
transfer unit before the transfer/transport
unit.
Fig. 4-252
(3) Remove 2 stepped screws fixing the slide
rail.
Fig. 4-253
(4) Hold A (shaft) or B (stay) with your left hand.
(5) Hold the slide rail on the right with your right
hand.
Fig. 4-254
Transfer/transport unit
Screw
Slide rail
Screw
Slide rail
A
B
