4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 61

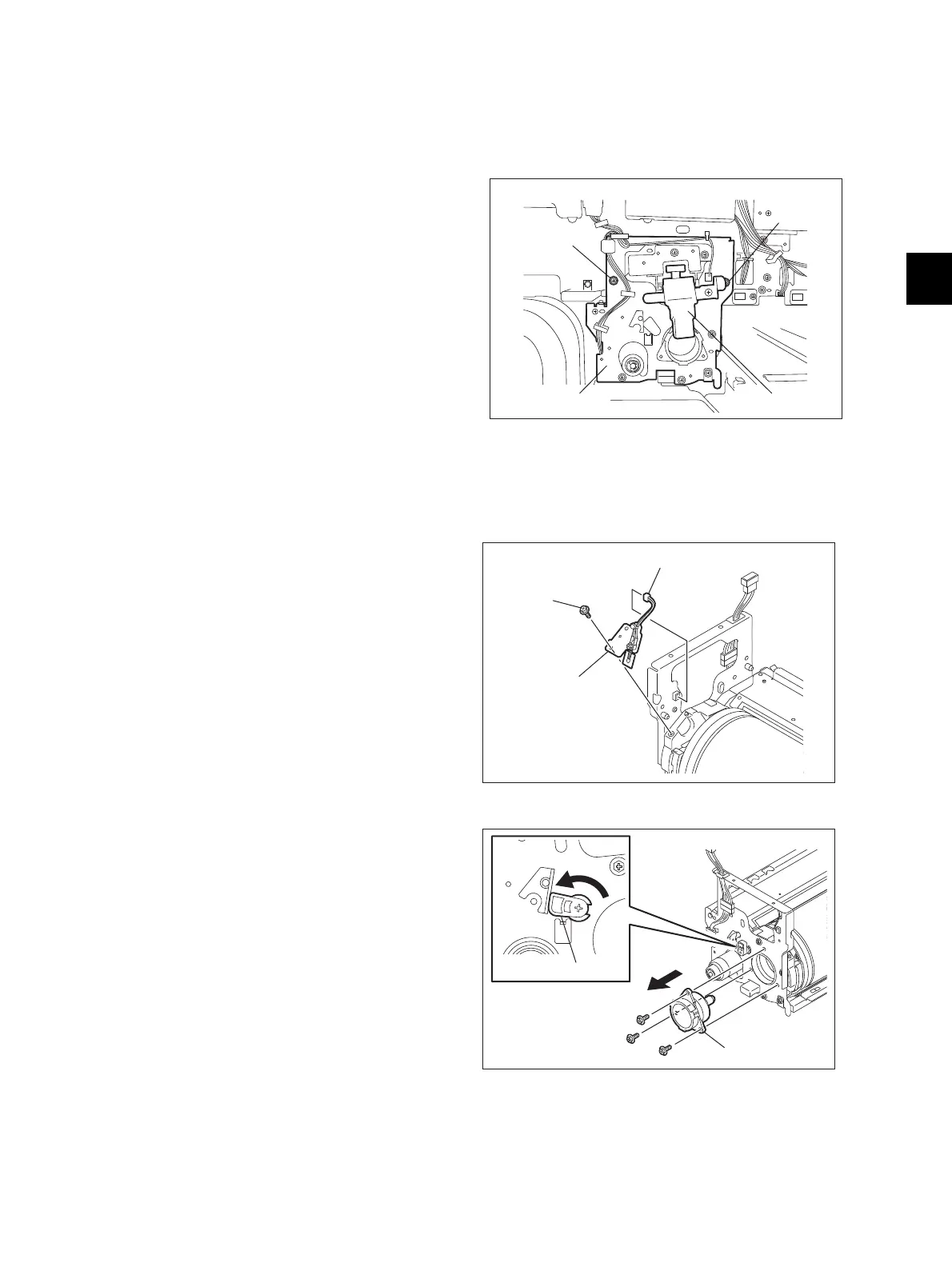

4.7 Drum/Cleaner Unit
4.7.1 Cleaner unit
4.7.2 Drum thermistor (THM5) and Drum
(1) Take off the main charger.
( P.4-54 "4.6.1 Main charger")
(2) Disconnect 1 connector and remove 2
screws to pull out the cleaner unit.
Fig. 4-171
(1) Take off the cleaner unit.
( P.4-61 "4.7.1 Cleaner unit")
(2) Disconnect 1 connector and remove 1 screw
to take off the drum thermistor with its
bracket.
(3) Remove 1 screw to take off the drum
thermistor.
When installing the thermistor, tighten it with
the 0.2-0.6N•m torque.
Fig. 4-172
(4) Turn the cam to release the pressure of the
cleaning blade.
(5) Remove 3 screws to take off the drum shaft.
Fig. 4-173
Main charger
Cleaner unit
Screw
Screw
Drum thermistor
Connector
Screw
To Next Page
