OUTLINE OF THE MACHINE
3 - 78

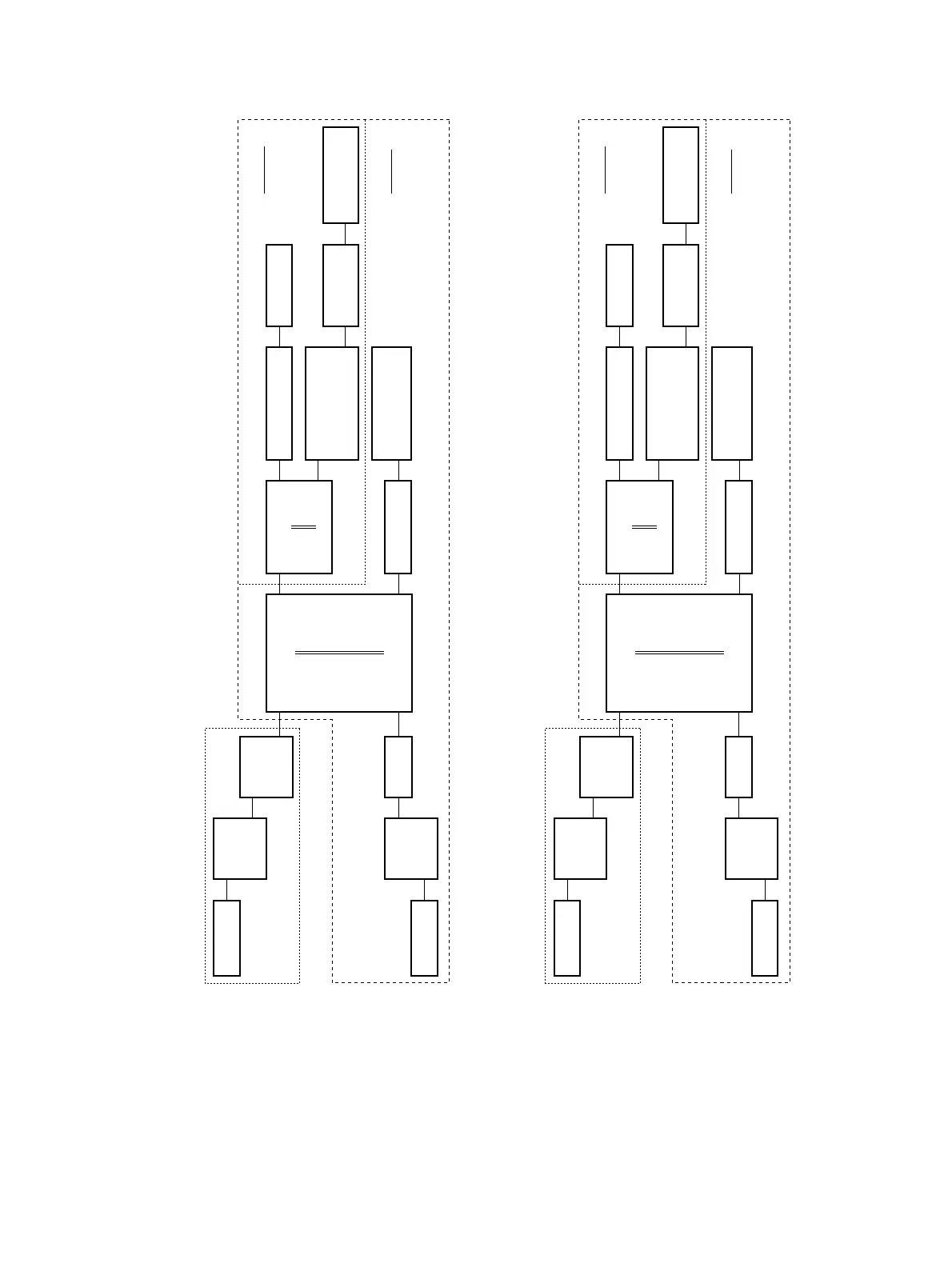

3.13.3 Developer Unit Drive
Developer unit drive
Fig. 3-47
e-STUDIO555/655
Drive from the developer motor
Developer unit
Motor shaft
G10
Idle gear
G48
||
P25
Paddle drive input gear
G27
Mixer-1
G19
||
G45
Idle gear
G24
Rear paddle gear
G25
Mixer-2
G45
e-STUDIO755/855
Idle gear
P25
||
G25
Front paddle gear
G16
G15
Idle gear
G23
Idle gear
G19
Idle gear
G30
||
G16
Transport sleeve
G23
Idle gear
G20
Scattered toner
recovery roller
G20
Front side
Rear side
Upper developer sleeve Lower developer sleeve
G17
Drive from the developer motor
Developer unit
Motor shaft
G10
Idle gear
G48
||
P25
Paddle drive input gear
G27
Mixer-1
G24
||
G45
Idle gear
G24
Rear paddle gear
G31
Mixer-2
G45
Idle gear
P25
||
G25
Front paddle gear
G18
G16
Idle gear
G20
Idle gear
G19
Idle gear
G30
||
G16
Transport sleeve
G23
Idle gear
G20
Scattered toner
recovery roller
G20
Front side
Rear side
Upper developer sleeve Lower developer sleeve
G17
