3
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
OUTLINE OF THE MACHINE
3 - 79
3.14 Transfer/Transport Unit
3.14.1 General Description
The transfer/transport unit consists of the following 3 sections.
• Transfer section: Separates the paper from the drum with the transfer belt, and transports the paper
to the fuser unit.
• Fuser unit: Fuses the toner onto the paper.
• Horizontal transport section: Transports the reversed paper to the intermediate transport roller
during duplex printing.
The general descriptions of the transfer section and the horizontal transport section are shown below.
(The general description of the fuser unit is written in Chapter 3.16.)
Transfer section:
The paper transported from the registration roller and the toner on the drum are transferred to the
transfer belt by a static attraction (the paper is separated from the drum here), and then the separated
paper is transported to the fuser unit. The toner adhered on the transfer belt is cleaned in the belt
cleaning mechanism, and then transported to the used toner bag. The transfer section is driven by the
transfer belt motor (M14).
Horizontal transport section:
The reversed paper for duplex printing is transported to the horizontal transport section. At the
horizontal transport section, the paper is transported to the intermediate transport roller. The section
includes 4 transport rollers controlled by 3 clutches (CLT1/2/3). The fuser motor (M3) drives the
operation of this section.

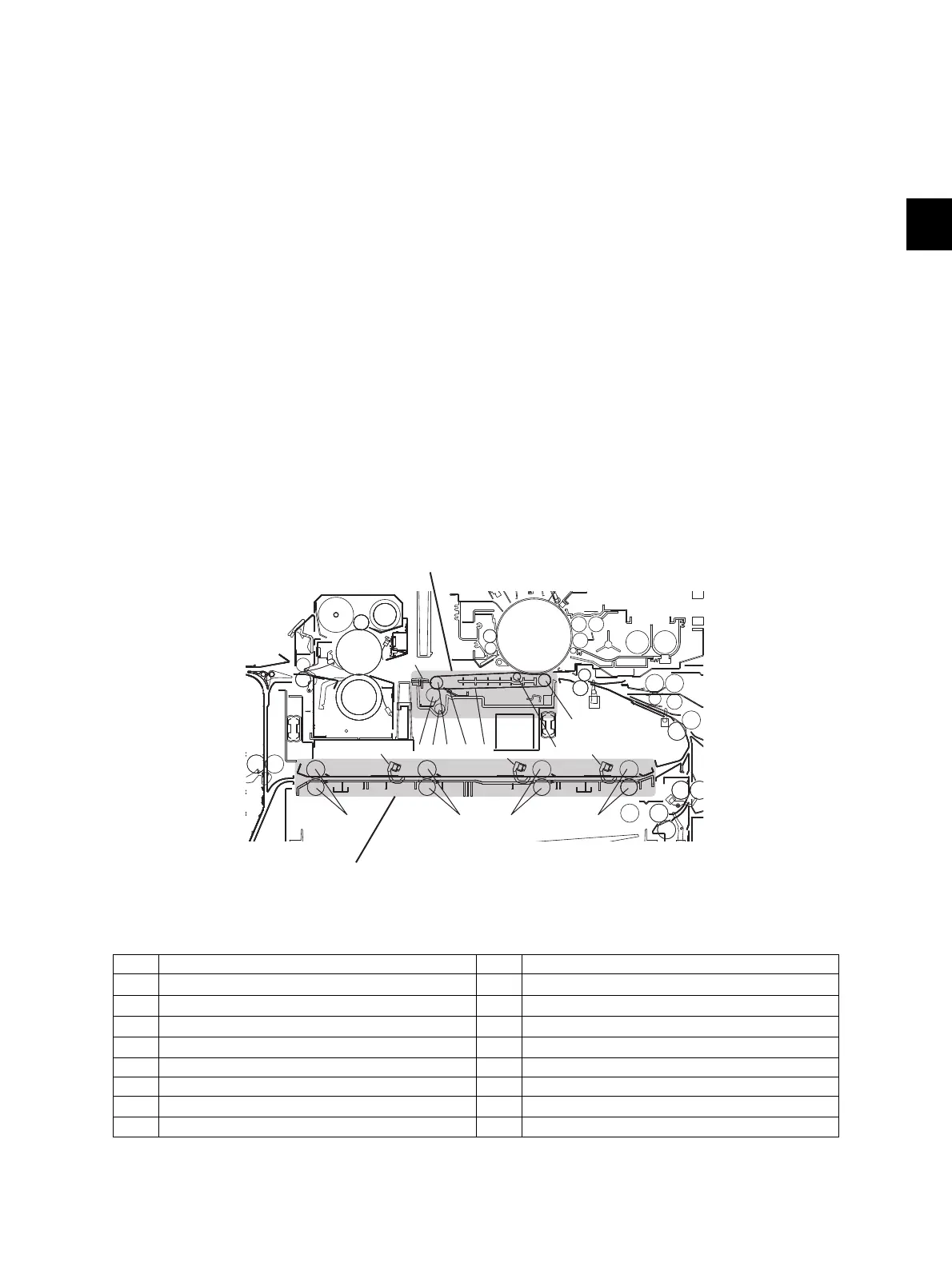

Fig. 3-48
No. Name No. Name
1 Follower roller
9 Horizontal transport roller-1
2 Power supply roller 10
Horizontal transport roller-2
3 Transfer belt 11
Horizontal transport roller-3
4 Transfer belt drive roller 12
Horizontal transport roller-4
5 Cleaning brush 13 Horizontal transport sensor-1
6 Recovery auger 14 Horizontal transport sensor-2
7
Cleaning blade
15 Horizontal transport sensor-3
8
Transport guide
1
2
374
8
12
119
Horizontal transport
section
Transfer section
10
56
13
14
15
To Next Page
