DISASSEMBLY AND REPLACEMENT
4 - 4
4.1.9 Right rear cover
4.1.10 Left upper cover
4.1.11 Left lower cover (Exit cover)

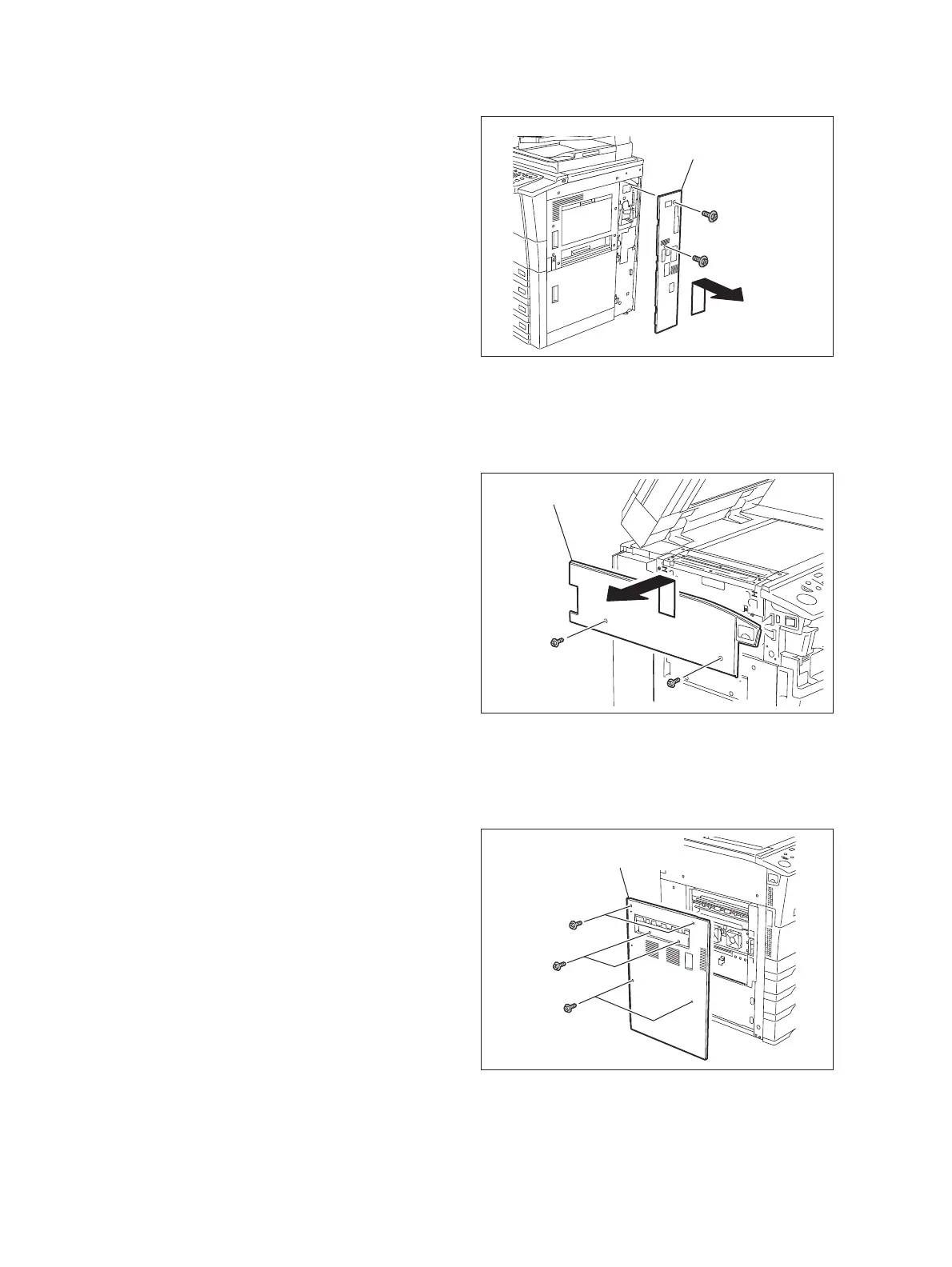

(1) Remove 2 screws and take off the right rear
cover.
Fig. 4-10
(1) Take off the top left cover.
( P.4-2 "4.1.5 Top left cover")
(2) Remove 2 screws to take off the left upper
cover.
Fig. 4-11
(1) Remove 6 screws to take off the left lower
cover.
Fig. 4-12
Right rear cover
Left upper cover
Left lower cover
(
Exit cover
)
