4.12.4 Original jam access cover
(1) Take off the RADF front cover.
( P.4-116 "4.12.2 RADF front cover")

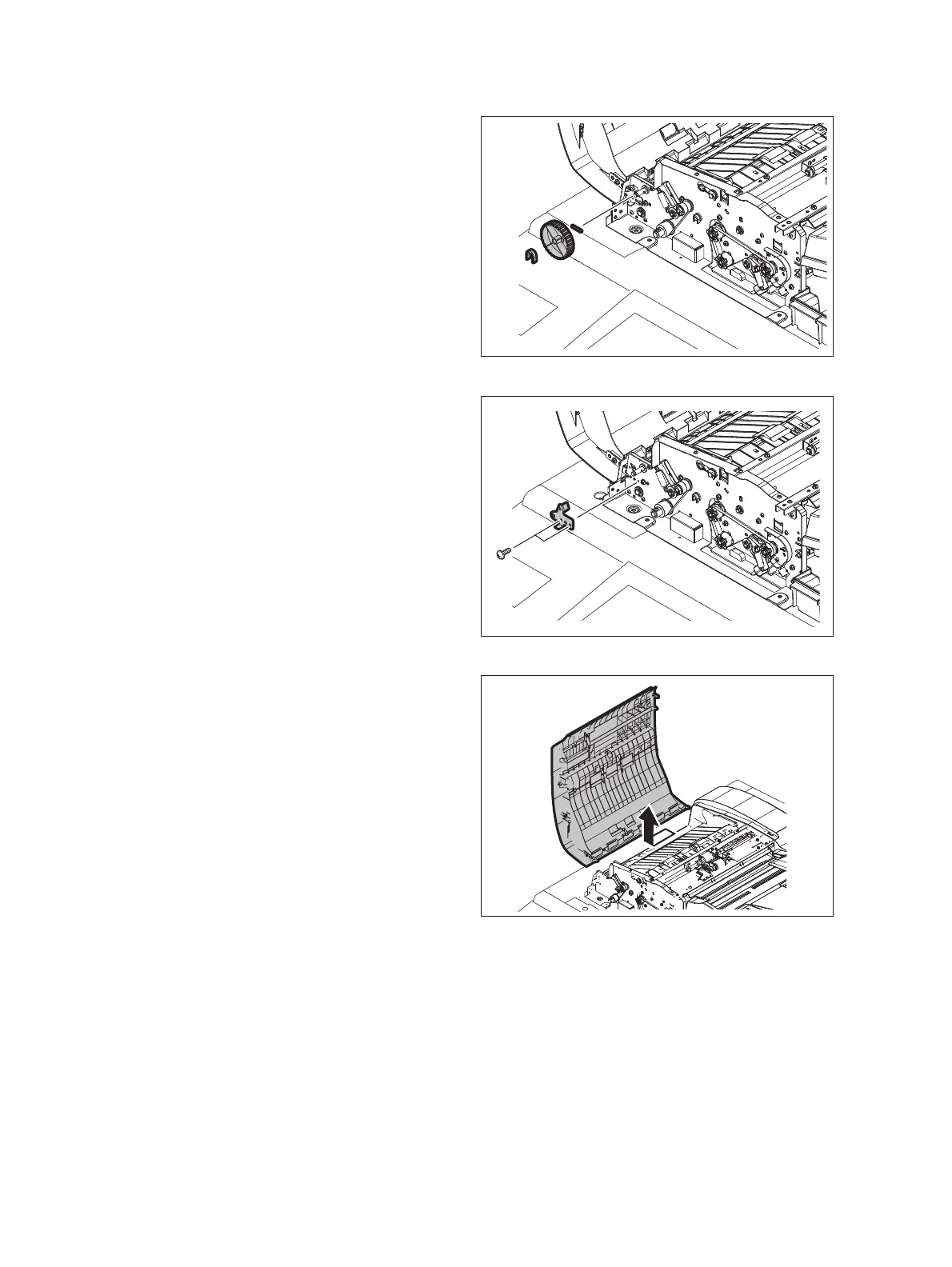

(2) Remove 1 clip and then the dial and pin.
Fig. 4-331
(3) Remove 2 screws and the hinge pin.
Fig. 4-332
(4) Slide the original jam access cover to take it
off.
Fig. 4-333
