4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 137

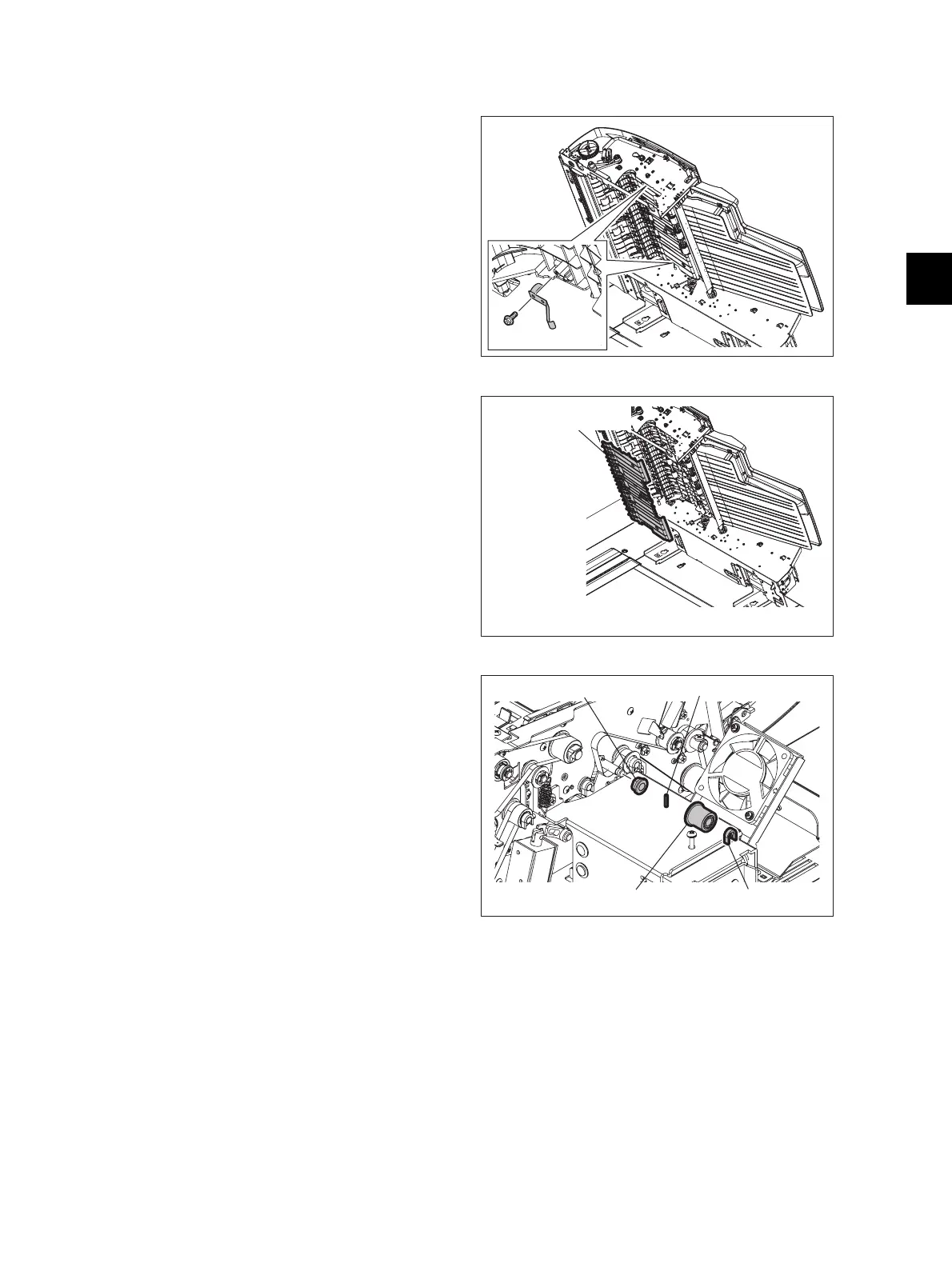

4.12.23 Reverse roller
(1) Take off the assembly of the exit guide and
the exit/reverse guide.
( P.4-123 "4.12.11 Exit guide / Exit/reverse
guide / Reading end guide")
(2) Remove 2 screws and take off the 2 leaf
springs.
Fig. 4-389
(3) Remove 3 screws and take off the upper
reverse guide.
Fig. 4-390
(4) Take off the original feed motor bracket with
the motor.
( P.4-139 "4.12.25 Original feed motor
bracket")
(5) Remove 1 clip, 1 pulley, 1 pin and 1 bushing.
Fig. 4-391
To Next Page
