4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 129

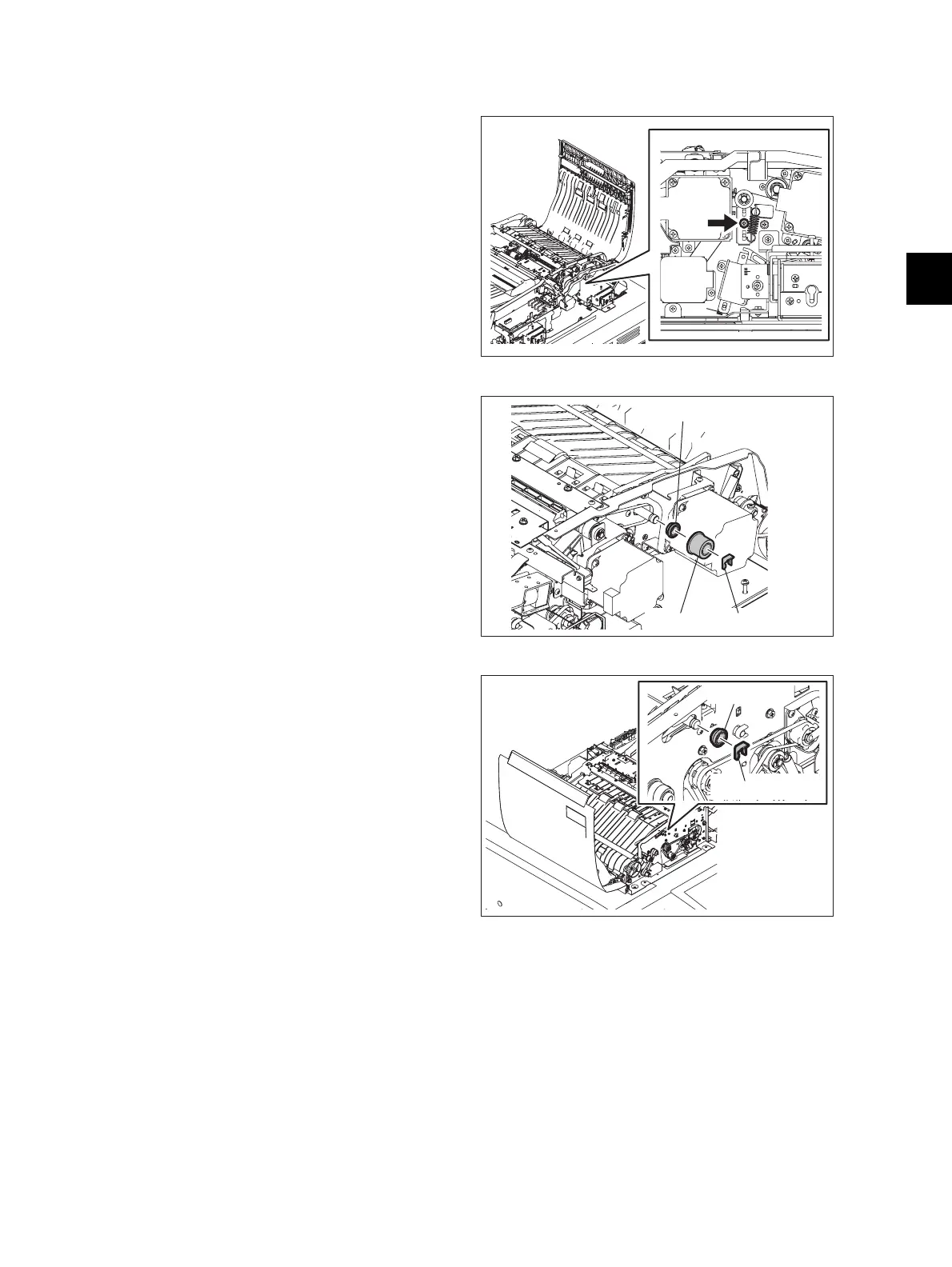

4.12.16 Original registration roller
(1) Take off the RADF front cover.
( P.4-116 "4.12.2 RADF front cover")
(2) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(3) Loosen 1 screw.
Fig. 4-365
(4) Remove 1 clip, 1 pulley and 1 bushing.
Fig. 4-366
(5) Remove 1 clip and 1 bushing.
Fig. 4-367
Bushing
Pulley Clip
Clip
Bushing
