ADJUSTMENT

6 - 78

6.14.6 RADF copy ratio adjustment

Note:

First check if the image adjustment has been performed properly and then start this adjustment

for the RADF. Also, the RADF position and height shall be adjusted correctly.

(1) Check the image using the chart (original)

with vertical and horizontal lines in the

following procedure.

Place the chart provided as an original with

its face up on the original tray of the RADF.

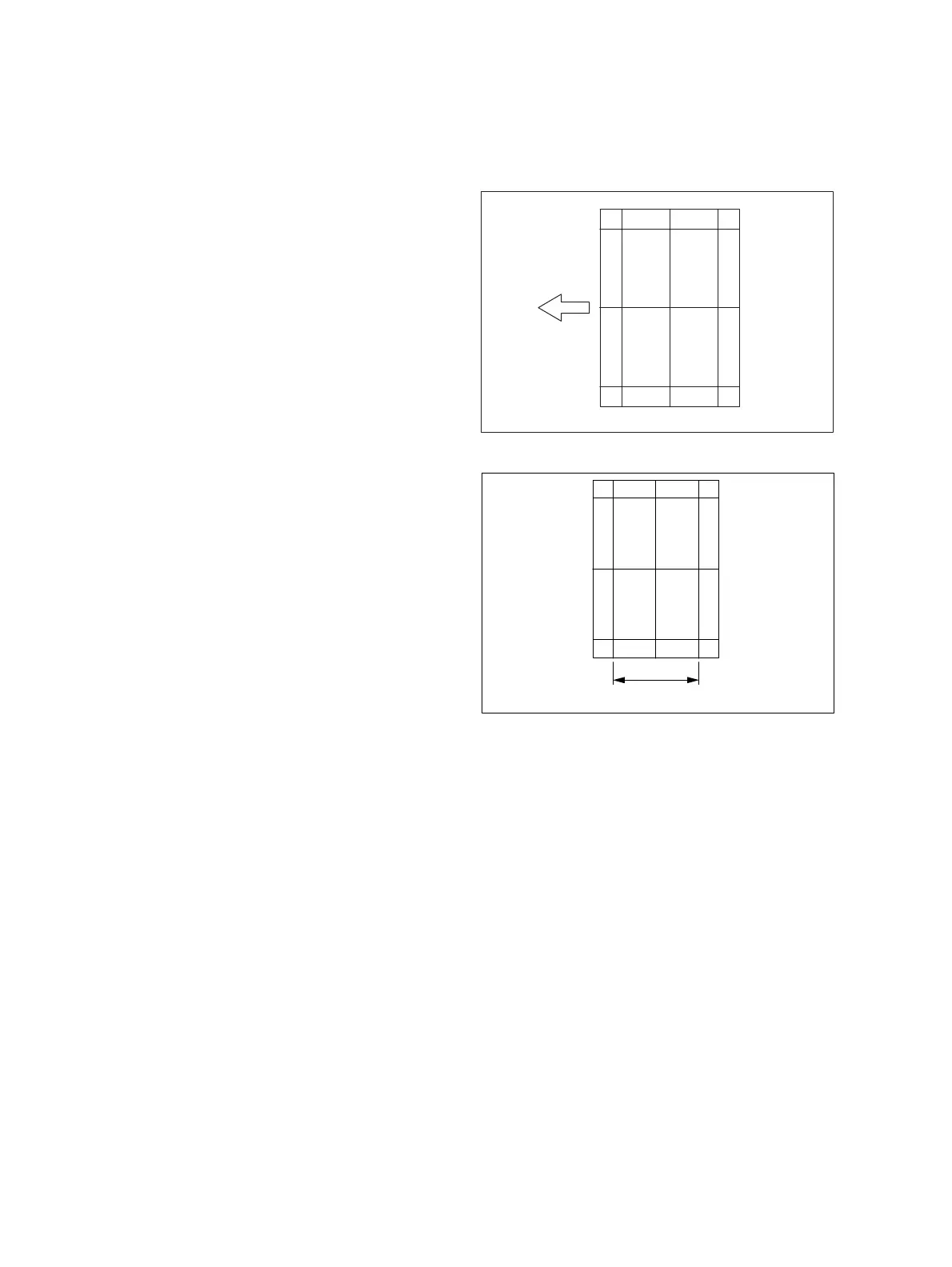

Fig. 6-89

(2) Press the [START] button.

(3) Superimpose the chart on the copy and

check the image dimension “I“.

(4) If the adjustment is necessary, shut down the

equipment and turn the power ON while

pressing [0] and [5] simultaneously.

(5) Key in [357] and then press the [START]

button.

(6) If the copy image dimension “I” is larger than

the chart dimension, enter a value smaller

than the current one. If the copy image

dimension “I” is smaller than the chart

dimension, enter a value larger than the

current one.

Note:

When the value is increased (decreased) by

1, the copy image (ratio in the secondary

scanning direction) is affected

correspondingly by 1%.

(7) Press the [OK] button.

Fig. 6-90

Chart
