e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 84
4.8.22 Toner bag full detection sensor (S11)
4.8.23 Used toner transport motor (M9)

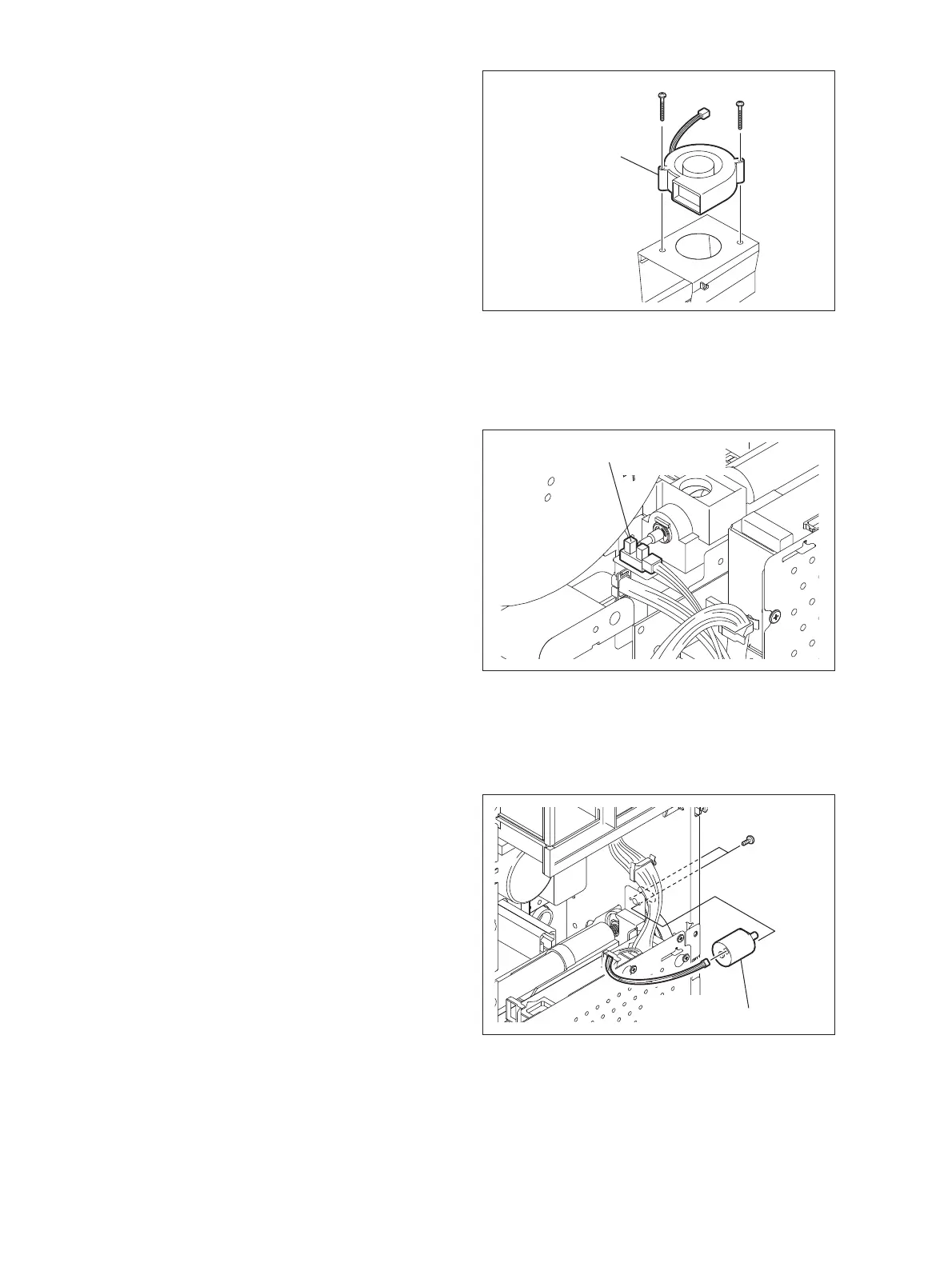

(5) Remove 3 screws to take off the fan.
Fig. 4-237
(1) Take off the SYS board case.
( P.9-1 "9.1.1 SYS board cover")
(2) Disconnect 1 connector and remove 1 screw
to take off the toner bag full detection sensor.
Fig. 4-238
(1) Take off the rear cover.
( P.4-5 "4.1.13 Rear cover")
(2) Take off the left rear cover.
( P.4-5 "4.1.12 Left rear cover")
(3) Disconnect 1 connector and remove 2
screws to take off the used toner transport
motor.
Pay attention to the size (length) of the
screws. If incorrect ones are used, the motor
could be damaged.
Fig. 4-239
Developer unit fan
Toner bag full detection sensor
Used toner transport motor
To Next Page
