Toshiba e-STUDIO556 User Manual

e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 154

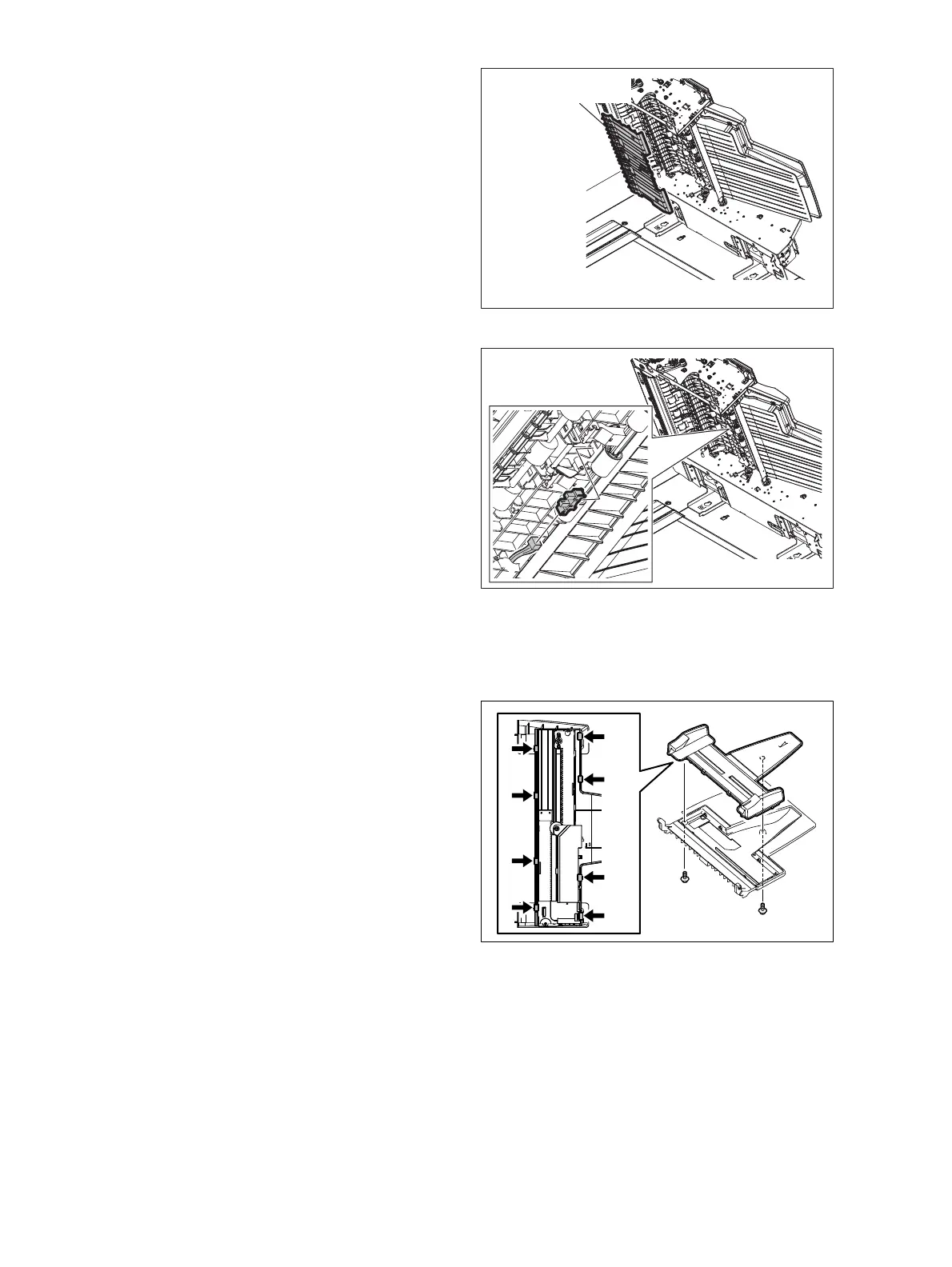

4.12.45 Original tray sensor (SR1)
(3) Remove 3 screws and take off the upper
reverse guide.
Fig. 4-438
(4) Disconnect 1 connector. Release 2 latches
and take off the original exit sensor.
Fig. 4-439
(1) Take off the original reverse tray.
( P.4-120 "4.12.7 Original reverse tray")
(2) Remove 2 screws and release 8 latches to
take off the original side guide unit.
Fig. 4-440
Upper reverse guide
