Toshiba e-STUDIO556 User Manual

e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 2
4.1.3 Top right cover
4.1.4 FAN cover
4.1.5 Top left cover

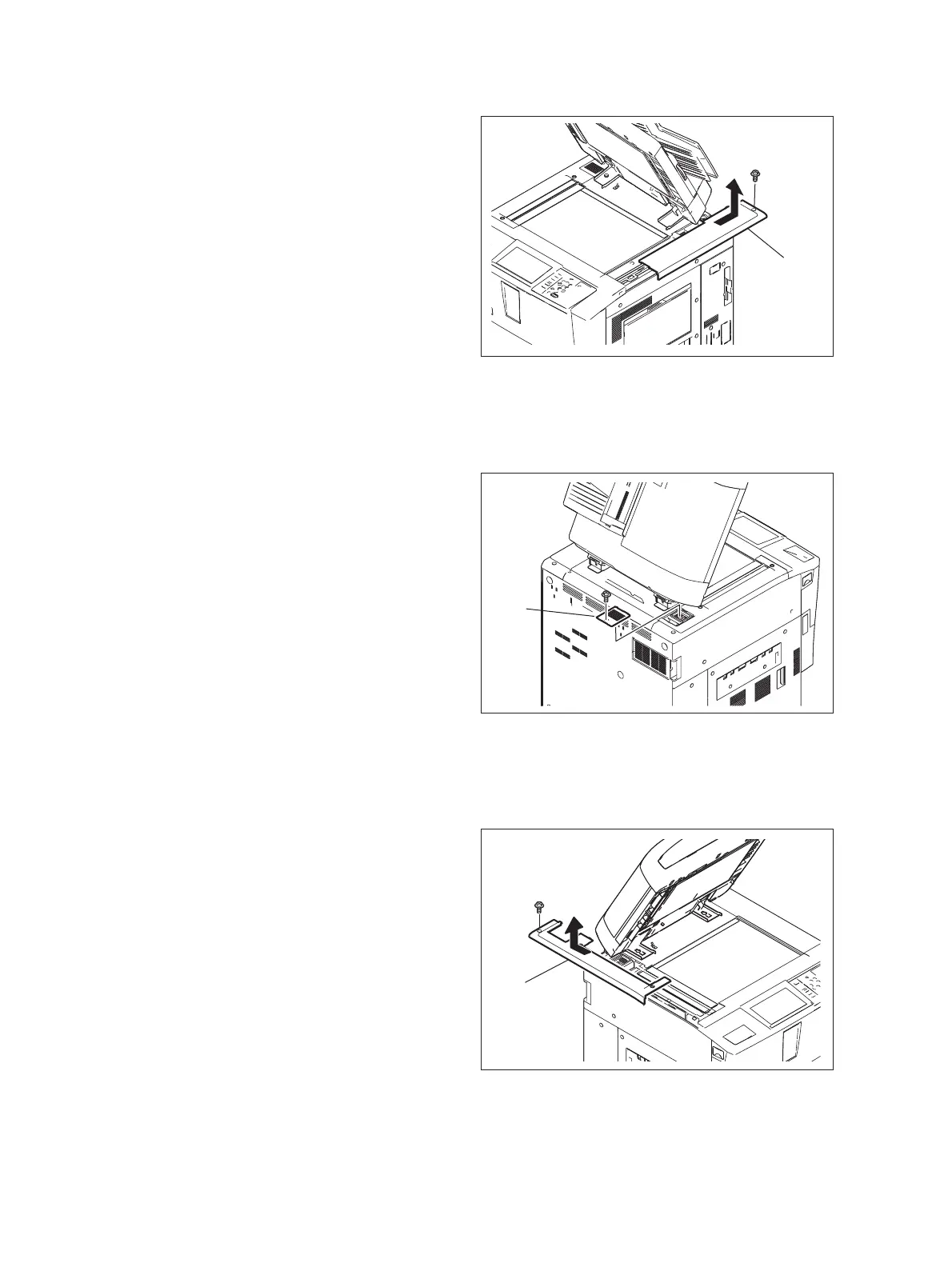

(1) Remove 1 screw and open the RADF.
(2) Slide the cover to the rear side to release the
hook, and then take off the top right cover [1].
Fig. 4-4
(1) Remove 1 screw and open the RADF.
(2) Slide the cover to the rear side to release the
hook, and then take off the FAN cover [1].
Fig. 4-5
(1) Take off the top FAN cover.
( P.4-2 "4.1.4 FAN cover")
(2) Remove 1 screw and open the RADF.
(3) Slide the cover to the rear side to release the
hook, and then take off the top left cover [1].
Fig. 4-6
[1]
[1]
[1]
