DISASSEMBLY AND REPLACEMENT
4 - 156

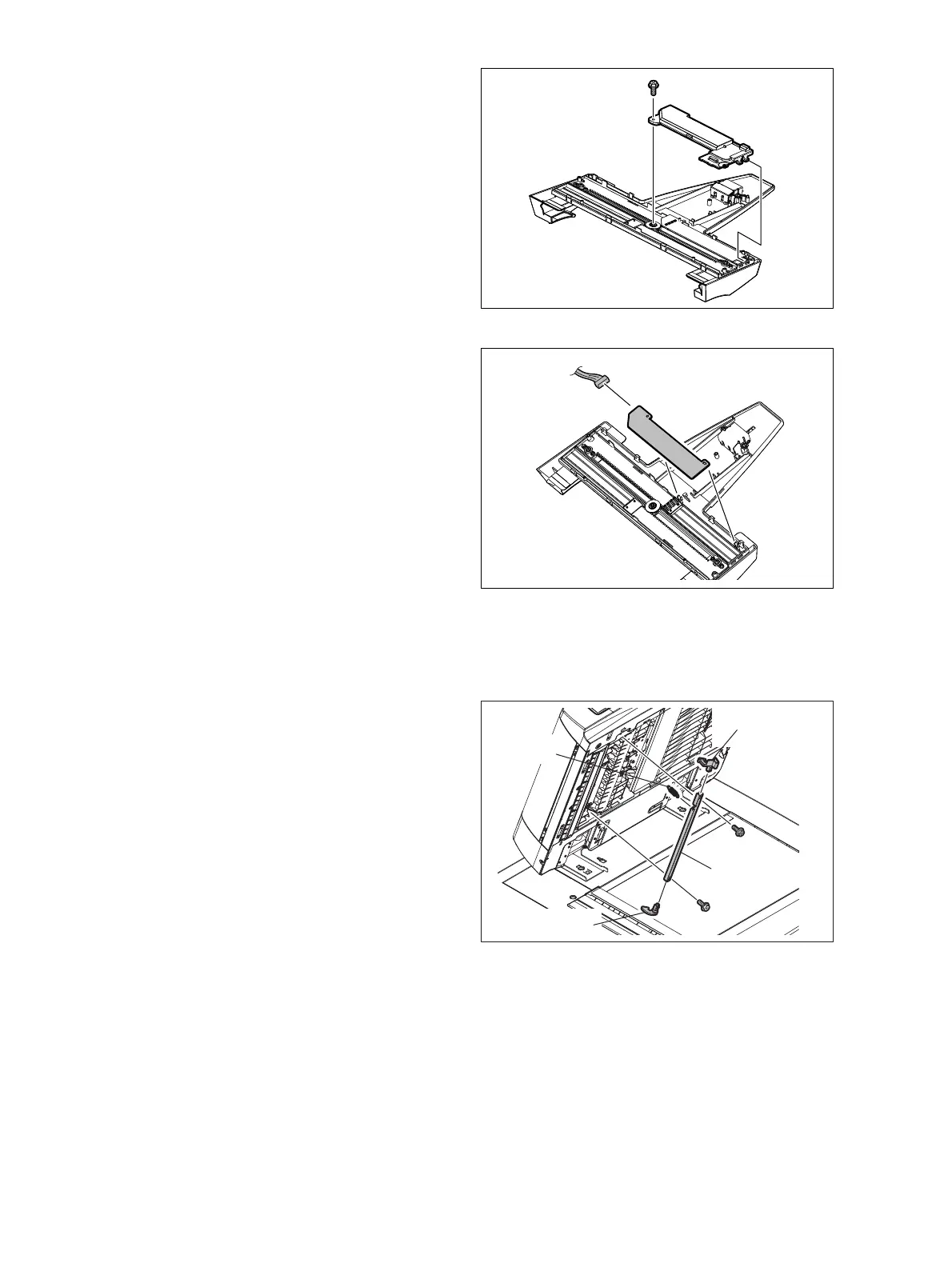

4.12.47 Original exit/reverse sensor (SR11)
(3) Remove 1 screw and take off the sensor
cover.
Fig. 4-444
(4) Disconnect 1 connector and take off the
original tray width sensor.
Fig. 4-445
(1) Take off the platen sheet unit.
( P.4-120 "4.12.8 Platen sheet unit")
(2) Remove 1 screw and take off the locking
lever on the front side. Remove 1 screw and
take off the locking lever on the rear side.
Remove 1 spring and take off the locking
bracket.
Fig. 4-446
Locking lever
Locking lever
Spring
Locking Bracket
