Toshiba e-STUDIO556 User Manual

e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 130
4.12.17 Intermediate transport roller

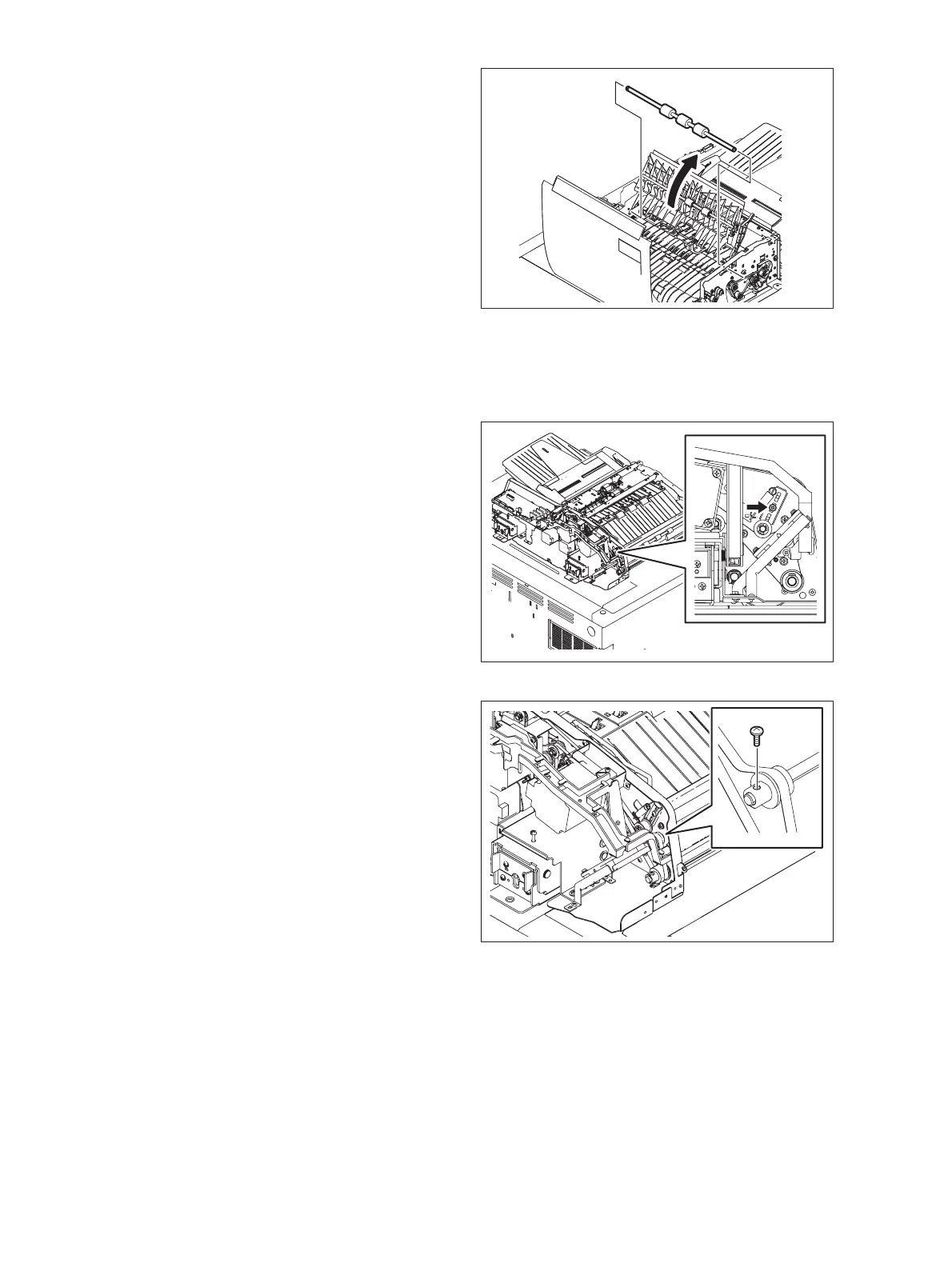

(6) Lift the guide. Take off the original
registration roller.
Note:
When installing the original registration roller,
refix the loosened screw and tighten the belt
tension.
Fig. 4-368
(1) Take off the reading start guide unit.
( P.4-122 "4.12.10 Reading start guide
unit")
(2) Loosen 1 screw.
Fig. 4-369
(3) Remove 1 screw.
Fig. 4-370
