4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 3

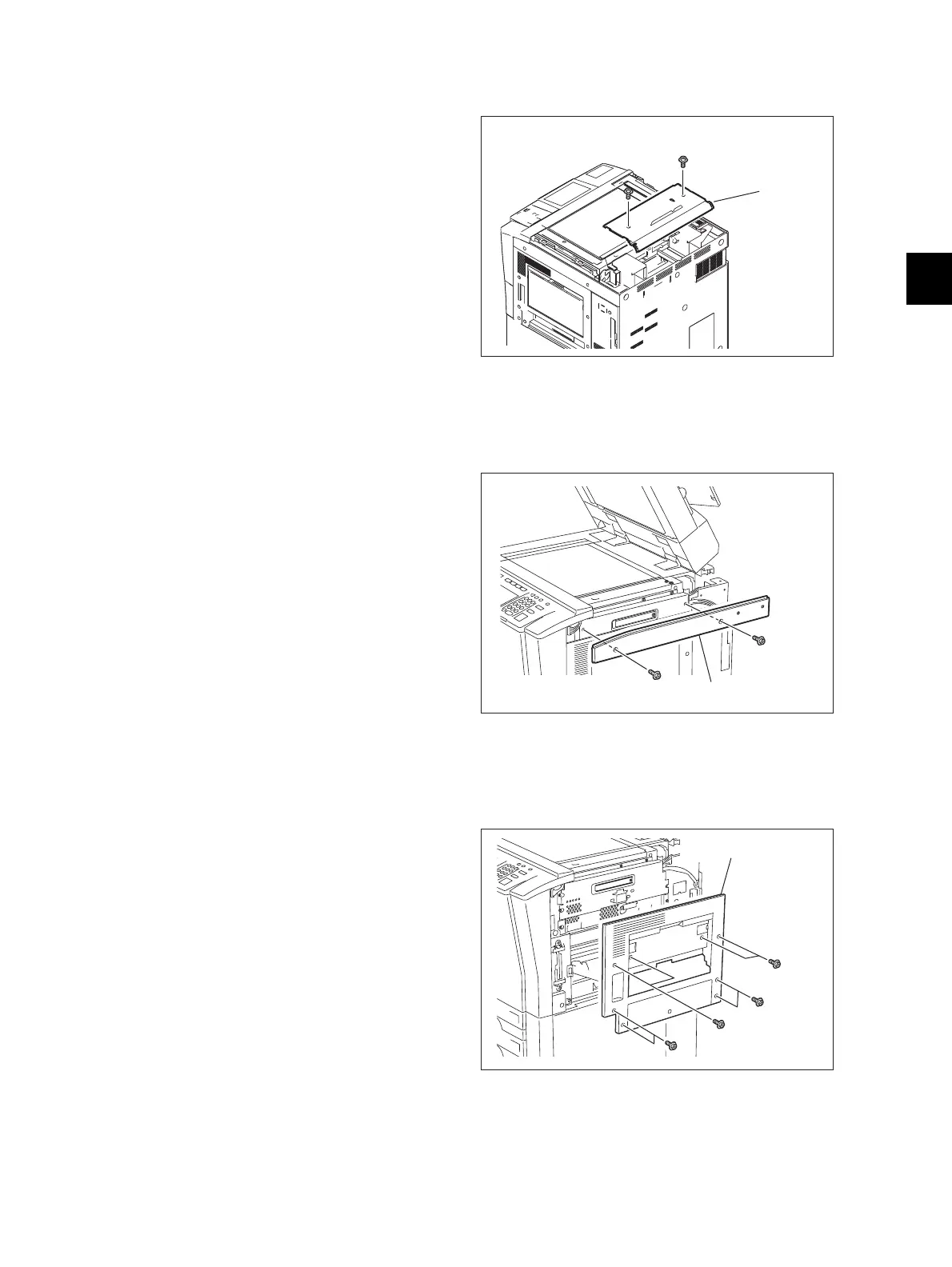

4.1.6 Top rear cover
4.1.7 Right upper cover
4.1.8 Right center cover
(1) Take off the RADF.
( P.4-115 "4.12.1 RADF")
(2) Take off the top right cover.
( P.4-2 "4.1.3 Top right cover")
(3) Take off the top left cover.
( P.4-2 "4.1.5 Top left cover")
(4) Remove 2 screws to take off the top rear
cover [1].
Fig. 4-7
(1) Take off the top right cover.
( P.4-2 "4.1.3 Top right cover")
(2) Remove 2 screws to take off the right upper
cover.
Fig. 4-8
(1) Open the bypass tray.
(2) Remove 8 screws to take off the right center
cover.
Fig. 4-9
[1]
Right upper cover
Right center cover
