4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 93

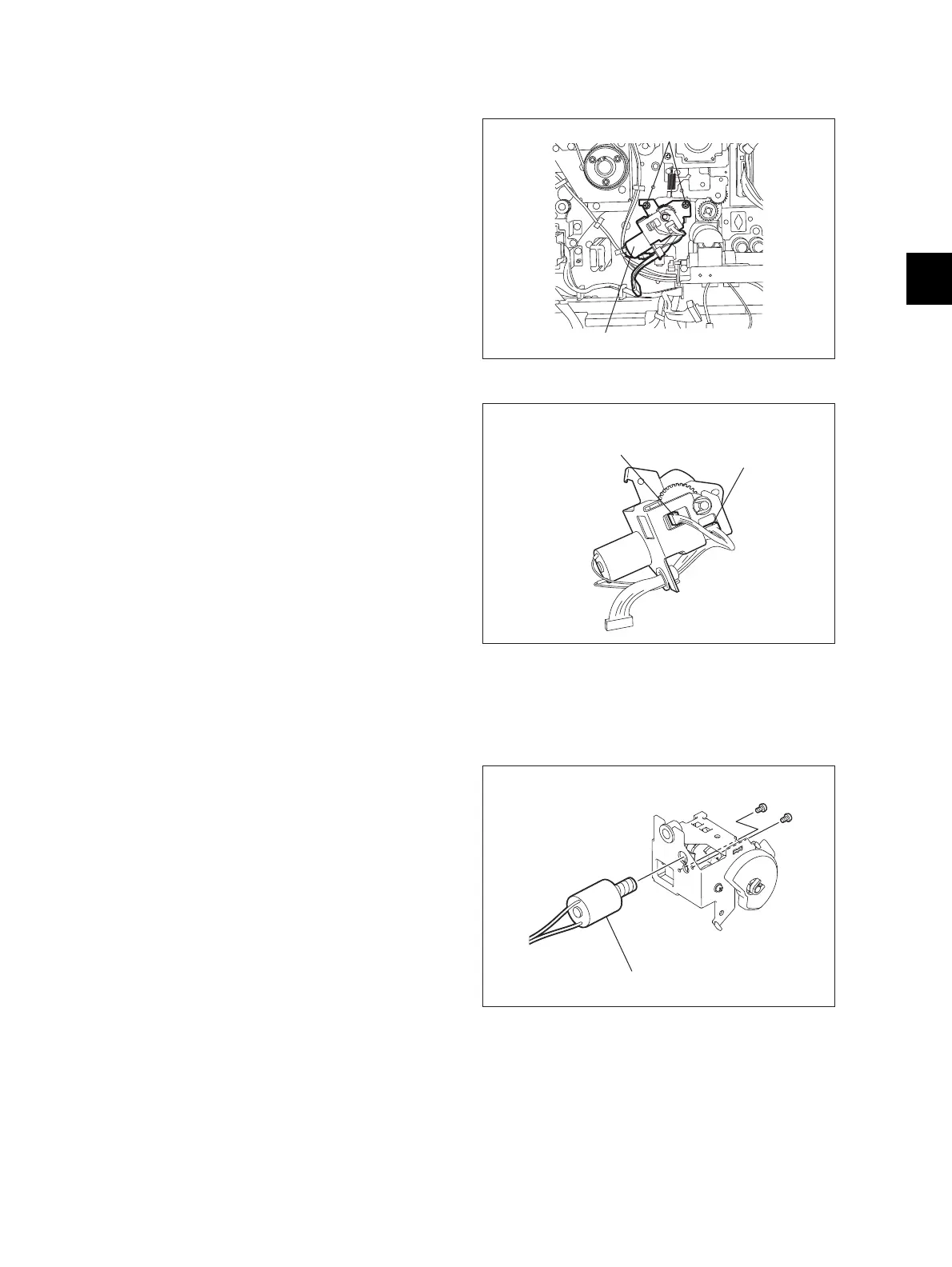

4.9.10 Transfer belt contact/release cam driving unit
4.9.11 Transfer belt cam motor (M15)
(1) Take off the rear cover.
( P.4-5 "4.1.13 Rear cover")
(2) Remove 3 screws to take off the flywheel.
(3) Disconnect 1 connector and remove 2
screws to take off the cam driving unit.
Fig. 4-263
(4) Remove 1 screw to take off the transfer belt
release detection sensor (S15).
(5) Remove 1 screw to take off the transfer belt
contact detection sensor (S16).
Fig. 4-264
(1) Take off the transfer belt contact/release cam
driving unit.
( P.4-93 "4.9.10 Transfer belt contact/
release cam driving unit")
(2) Remove 2 screws and disconnect 1
connector to take off the transfer belt cam
motor.
Pay attention to the size (length) of the
screws. If incorrect ones are used, the motor
could be damaged.
Fig. 4-265
Transfer belt contact/release cam drive unit
Screw
Transfer belt release
detection sensor
Transfer belt contact
detection sensor
Transfer belt cam motor
To Next Page
