DISASSEMBLY AND REPLACEMENT
4 - 117
4.12.3 RADF rear cover
(3) Take off the RADF front cover.

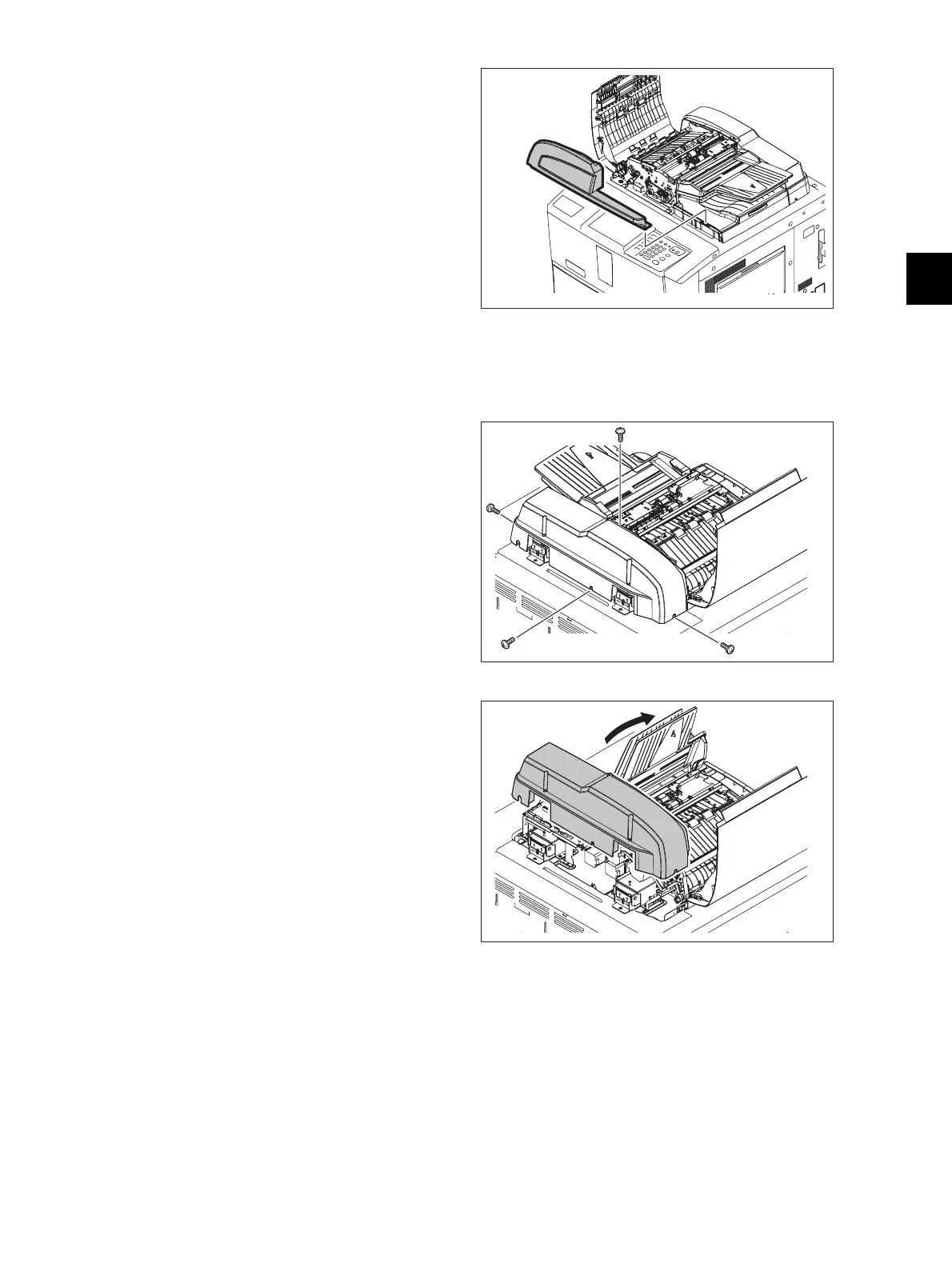

Fig. 4-328
(1) Open the original jam access cover and
remove 4 screws.
Fig. 4-329
(2) Lift up the original tray and take off the RADF
rear cover.
Note:
There is a Mylar attached to the hinge to
prevent your fingers from being caught. Treat
it carefully.
Fig. 4-330
