DISASSEMBLY AND REPLACEMENT
4 - 126

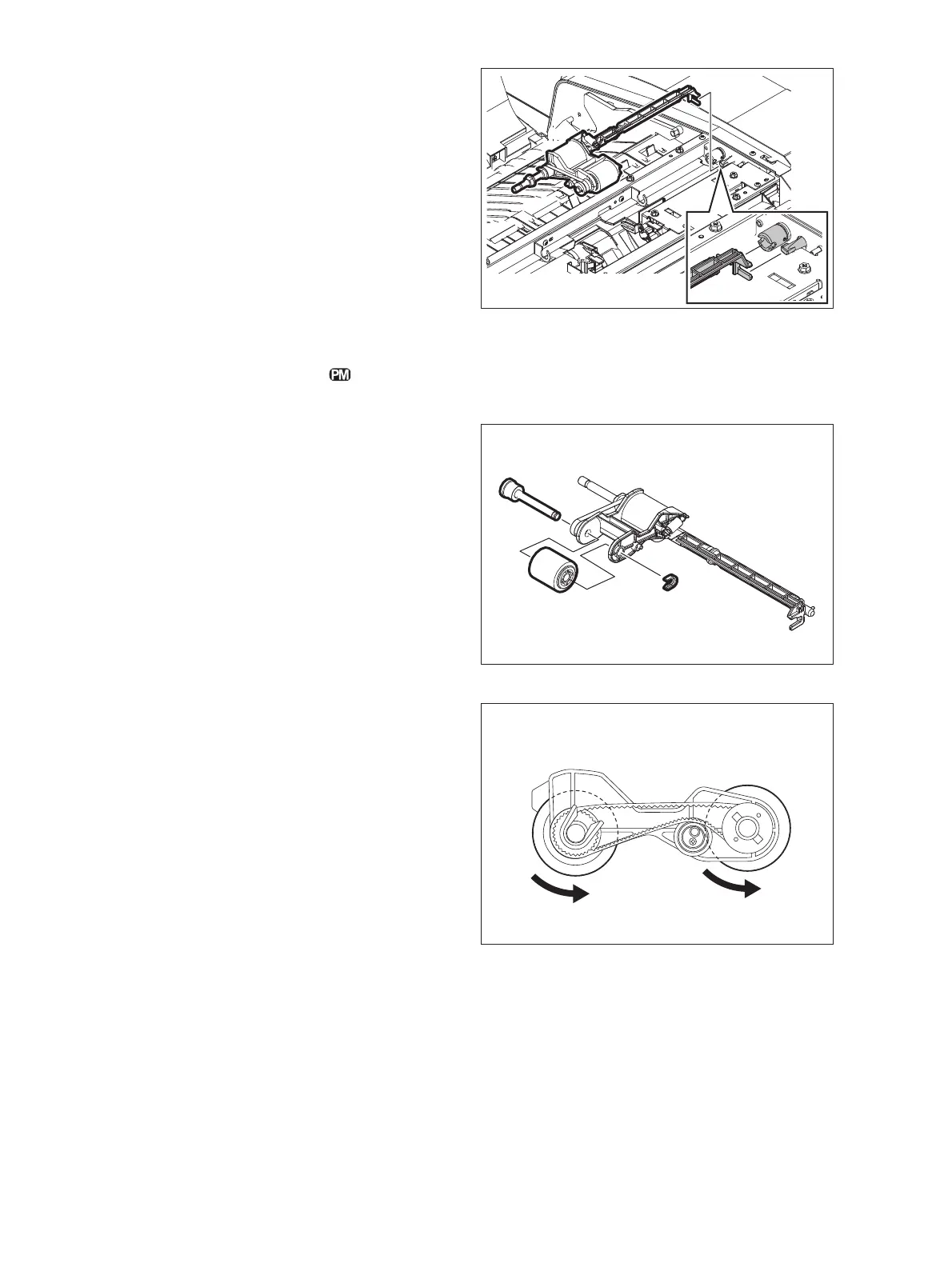

4.12.13 Pickup roller
(3) Take off the paper feeder unit.
Fig. 4-356
(1) Take off the paper feeder unit.
( P.4-125 "4.12.12 Paper feeder unit")
(2) Remove 1 clip. Then pull out the shaft and
take off the pickup roller.
Fig. 4-357
Note:
Make sure you assemble the pickup roller
with the one-way clutch in the correct
direction.
Fig. 4-358
Lock
Lock
