DISASSEMBLY AND REPLACEMENT
4 - 54
4.6 Process Related Section
4.6.1 Main charger
(1) Take off the toner cartridge drive unit.
( P.4-69 "4.8.1 Toner cartridge drive unit")
(2) Remove 3 screws and take off the left inner
cover.
(3) Remove 1 stepped screw and pull out the
main charger.

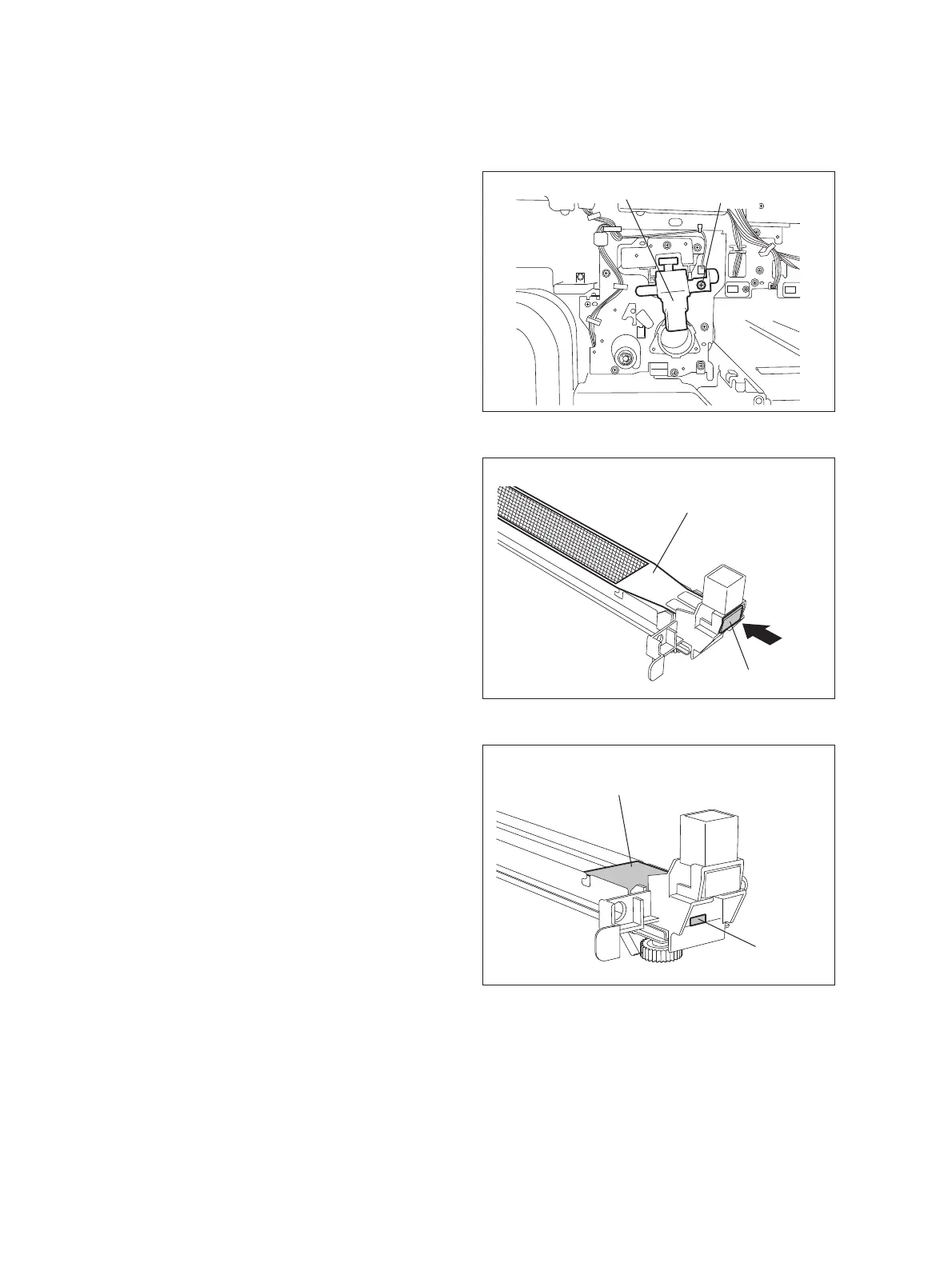

Fig. 4-152
(4) Press the button to release the tension of the
main charger grid, and then release the hook
to remove the grid.
Fig. 4-153
(5) Take off 1 finger and then the front terminal
cover.
Fig. 4-154
Main charger
Screw
Main charger grid
Button
Terminal cover
Latch
