e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 144

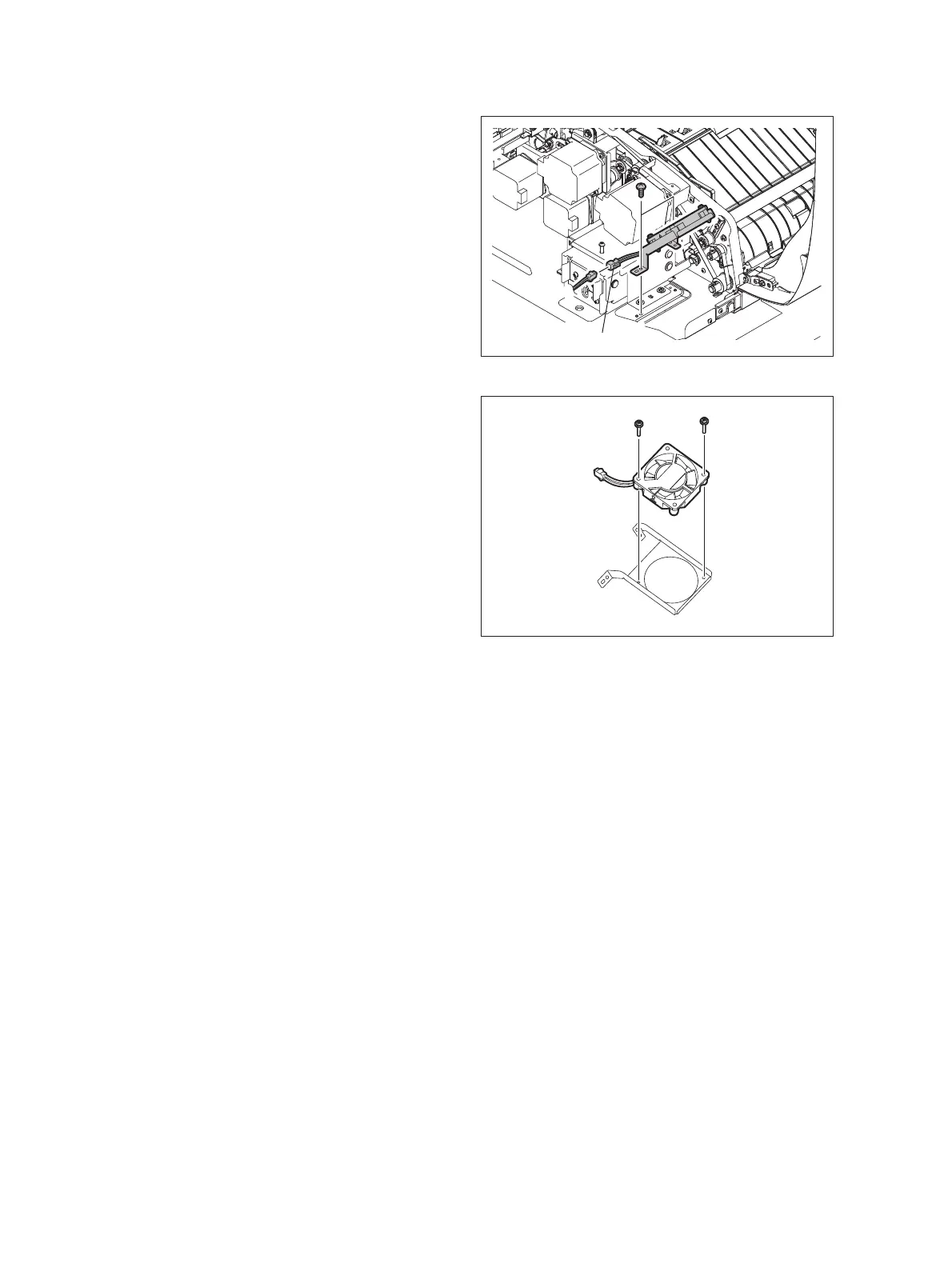

4.12.30 RADF cooling fan (FR1)
(1) Take off the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(2) Disconnect 1 connector.
(3) Remove 2 screws and take off the RADF
cooling fan with the bracket.
Fig. 4-409
(4) Remove 2 screws and take off the bracket
from the RADF cooling fan.
Fig. 4-410
Connector
