4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 115

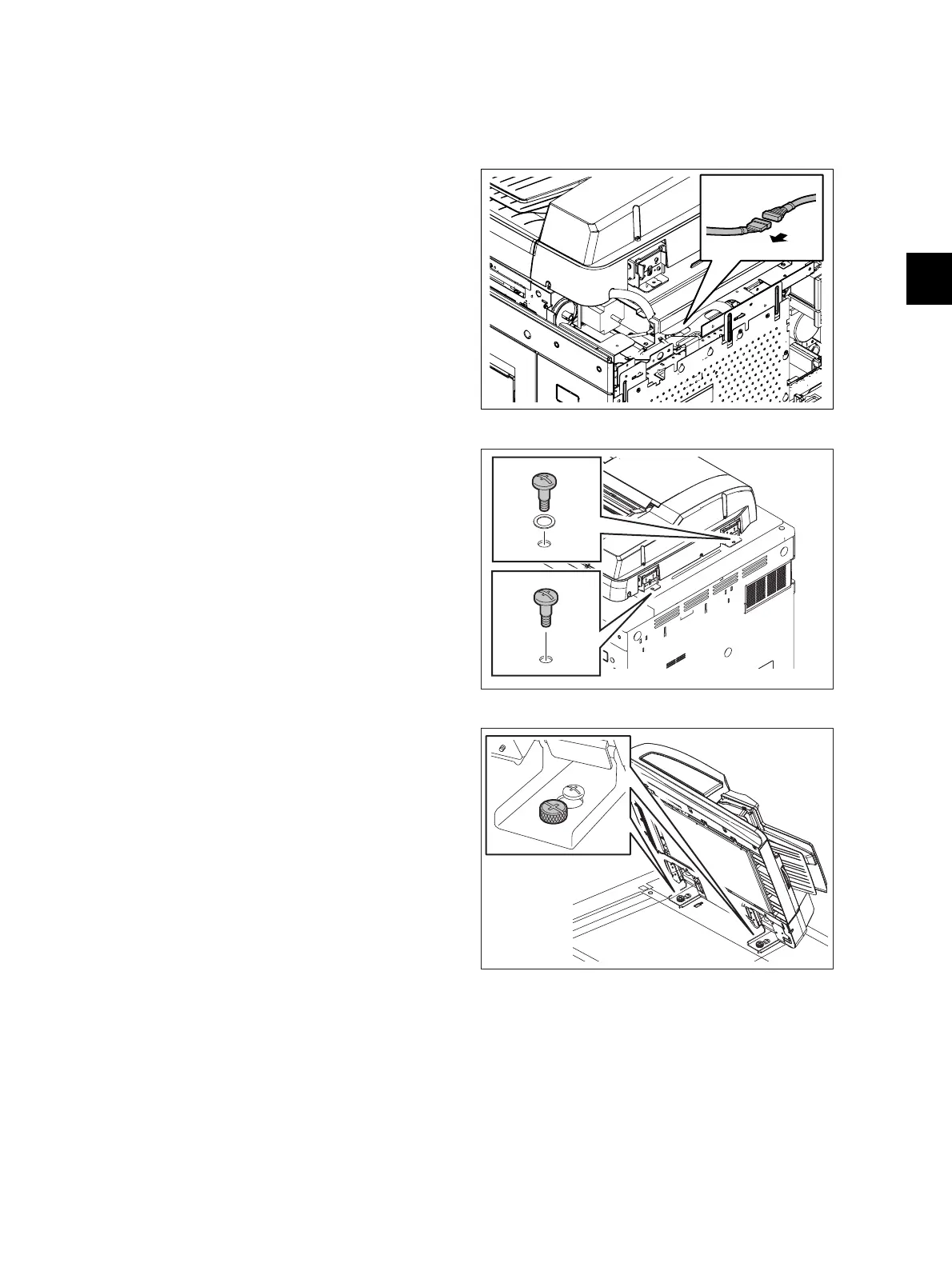

4.12 Reversing Automatic Document Feeder (RADF)
4.12.1 RADF
(1) Take off the top right cover, and rear cover.
( P.4-2 "4.1.3 Top right cover",
 P.4-5 "4.1.13 Rear cover")
(2) Disconnect the connector.
Fig. 4-322
(3) Remove 2 screws.
Fig. 4-323
(4) Open the RADF and remove 2 screws.
Fig. 4-324
