Toshiba e-STUDIO556 User Manual

e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 148
4.12.34 Original jam access cover opening/closing switch (SWR1)
4.12.35 RADF opening/closing switch (SWR2)
(1) Take off the RADF board bracket.
( P.4-117 "4.12.3 RADF rear cover")
(2) Take off the harness guide.
( P.4-139 "4.12.25 Original feed motor
bracket")
(3) Disconnect 3 connectors.

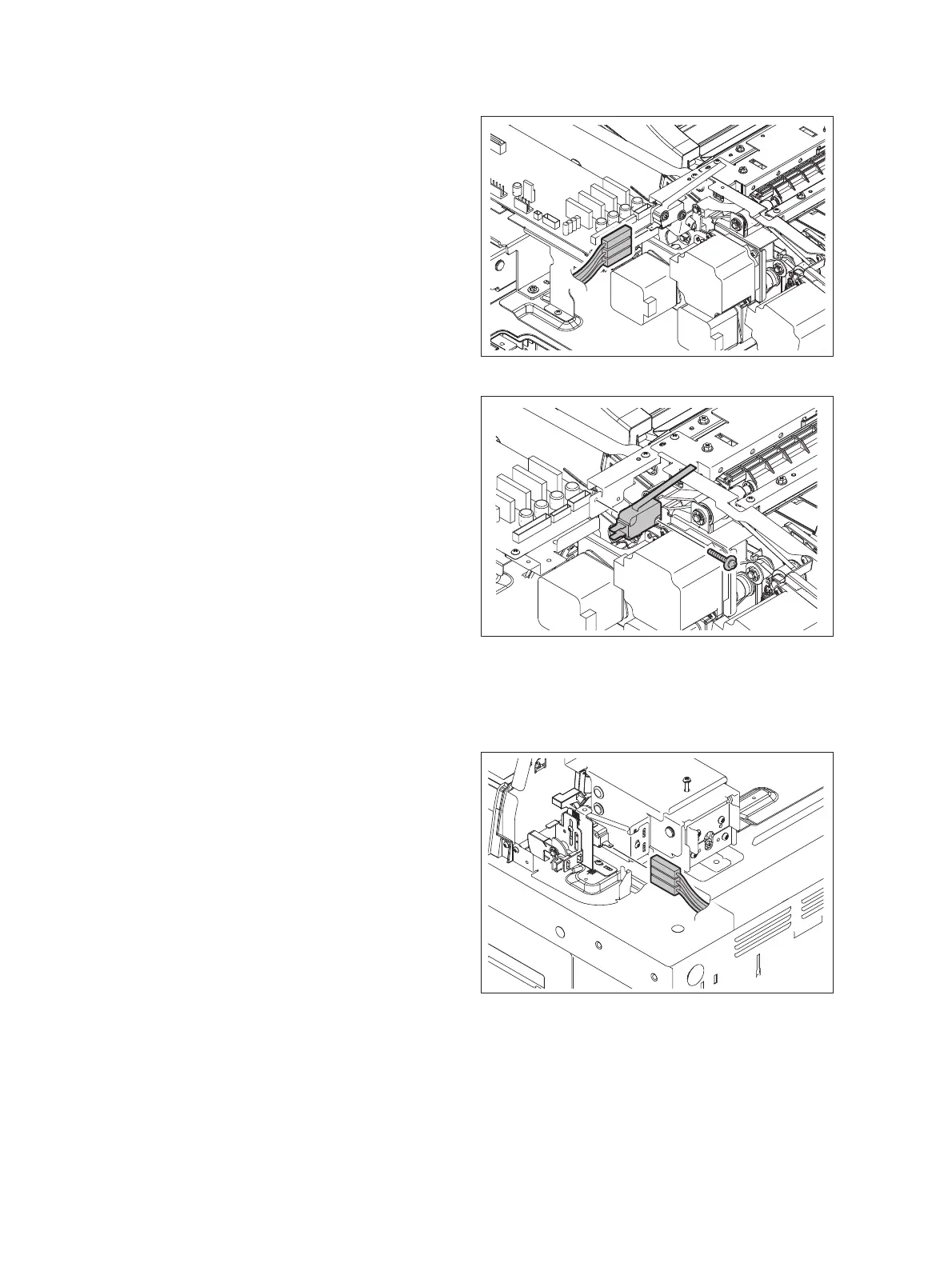

Fig. 4-420
(4) Remove 1 screw and take off the original jam
access cover opening/closing switch.
Fig. 4-421
(1) Take off the RADF board bracket.
( P.4-160 "4.12.54 RADF board bracket")
(2) Disconnect 3 connectors.
Fig. 4-422
