4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 119

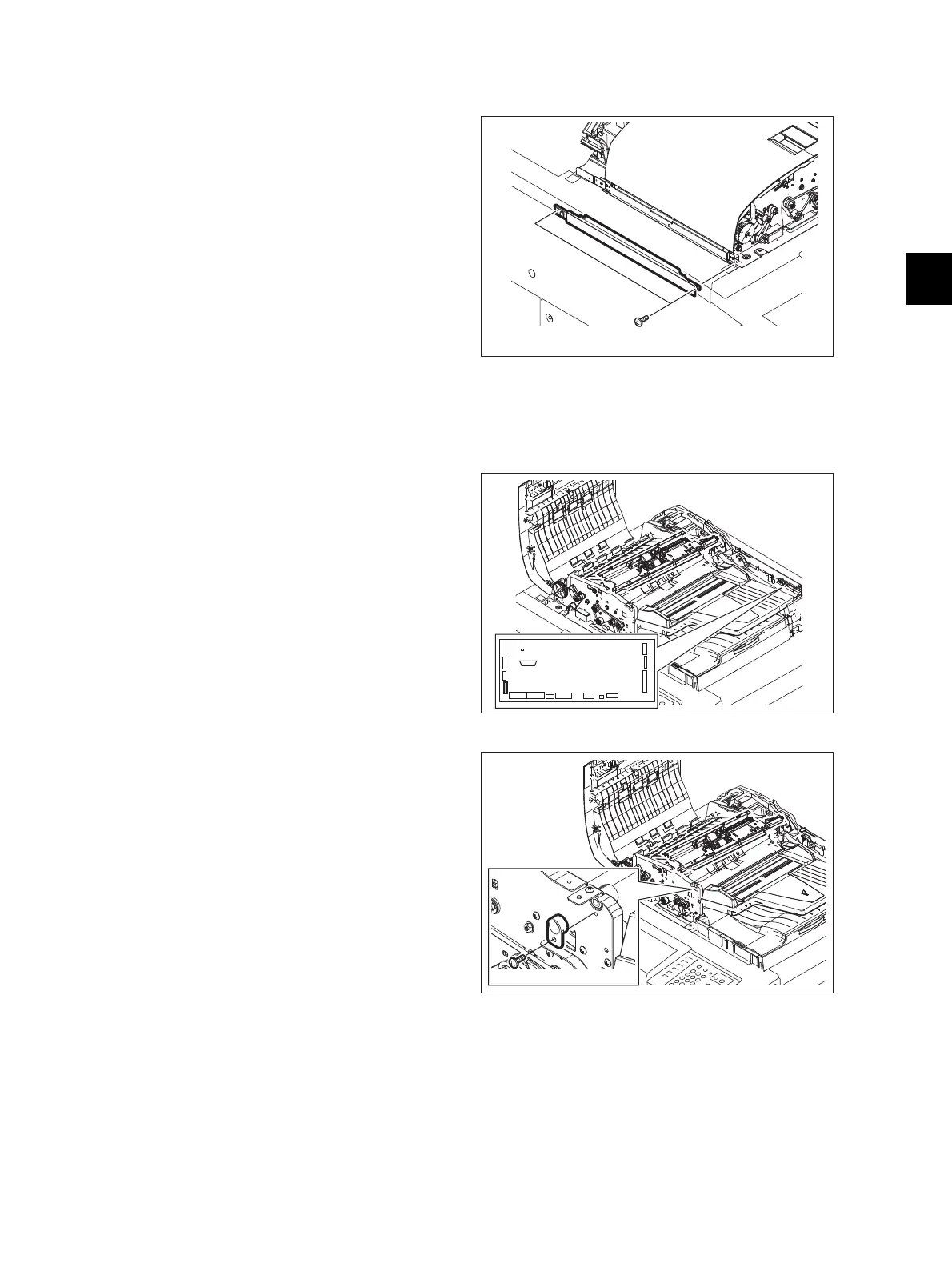

4.12.5 RADF left cover
4.12.6 Original tray
(1) Remove the RADF front cover.
( P.4-116 "4.12.2 RADF front cover")
(2) Remove the RADF rear cover.
( P.4-117 "4.12.3 RADF rear cover")
(3) Remove 2 screws and take off the RADF left
cover.
Fig. 4-334
(1) Take off the paper feeder unit.
( P.4-125 "4.12.12 Paper feeder unit")
(2) Disconnect 1 connector from the RADF
board.
Fig. 4-335
(3) Remove 1 screw and take off the bushing.
Fig. 4-336
LED3
