e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 88
4.9.4 Cleaning blade
(6) Remove 1 clip and then the bushing.
(7) Push the brush to the rear side, take off the
shaft on the front side and then pull it out to
the upper front side.
Do not touch the surface of the brush.

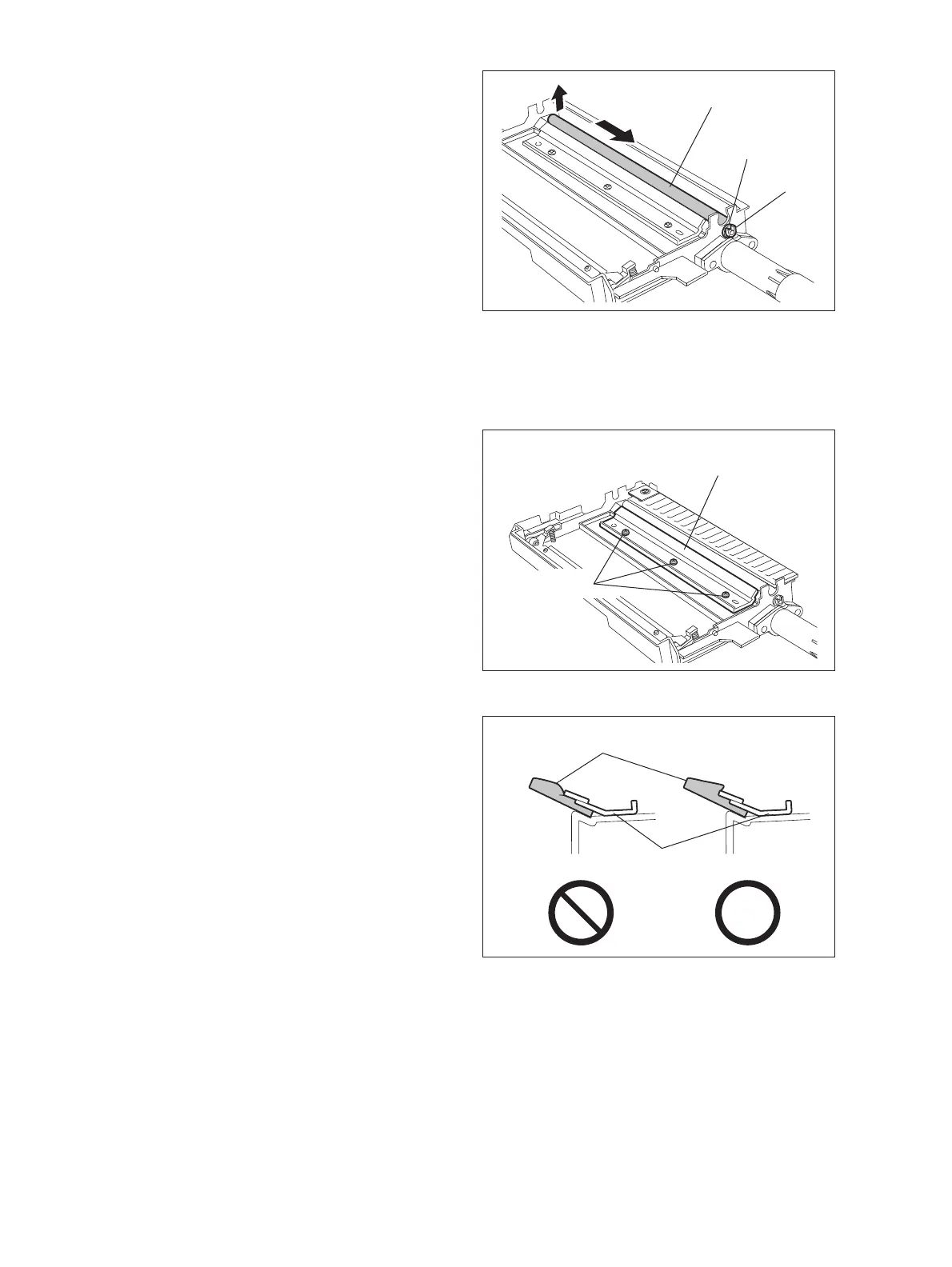

Fig. 4-249
(1) Take off the transfer unit.
( P.4-85 "4.9.1 Transfer unit")
(2) Remove 3 screws to take off the cleaning
blade.
Fig. 4-250
1. When installing the blade, fix the boss on
both sides with the screws.
2. Be careful not to touch, scratch or
damage the blade.
3. After installing the blade, be sure that the
seals on both sides are not damaged.
Fig. 4-251
Cleaning brush
Clip
Bush
Cleaning blade
Screw
Cleaning blade
Urethan seal
To Next Page
