Toshiba e-STUDIO556 User Manual

4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 11
4.3 Scanning Section
4.3.1 Original glass
4.3.2 Lens cover

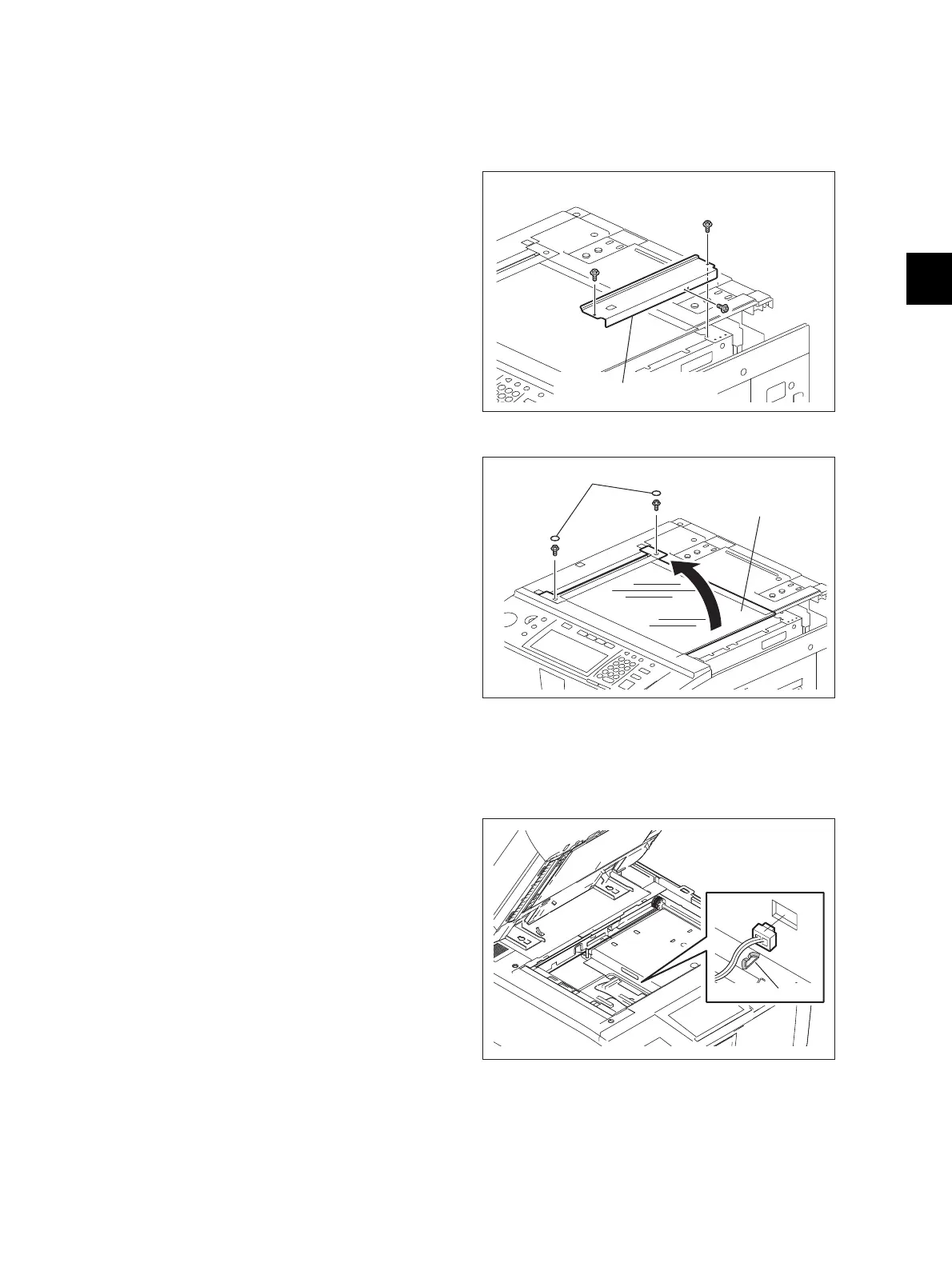

(1) Take off the top right cover.
( P.4-2 "4.1.3 Top right cover")
(2) Remove 3 screws to take off the original
glass holder.
Fig. 4-28
(3) Remove 2 caps and 2 screws to take off the
original glass.
Fig. 4-29
(1) Take off the original glass.
( P.4-11 "4.3.1 Original glass")
(2) Remove 3 screws to take off the original
glass holder.
Fig. 4-30
Original glass holder
Cap
Original glass
[1]

Toshiba e-STUDIO556 Specifications

General

Brand	Toshiba
Model	e-STUDIO556
Category	All in One Printer
Language	English
