DISASSEMBLY AND REPLACEMENT
4 - 106
4.10.9 Pressure roller
4.10.10 Web detection sensor (S8)
(13) Take off the fuser roller covering it with paper
and such not to make scars on it.

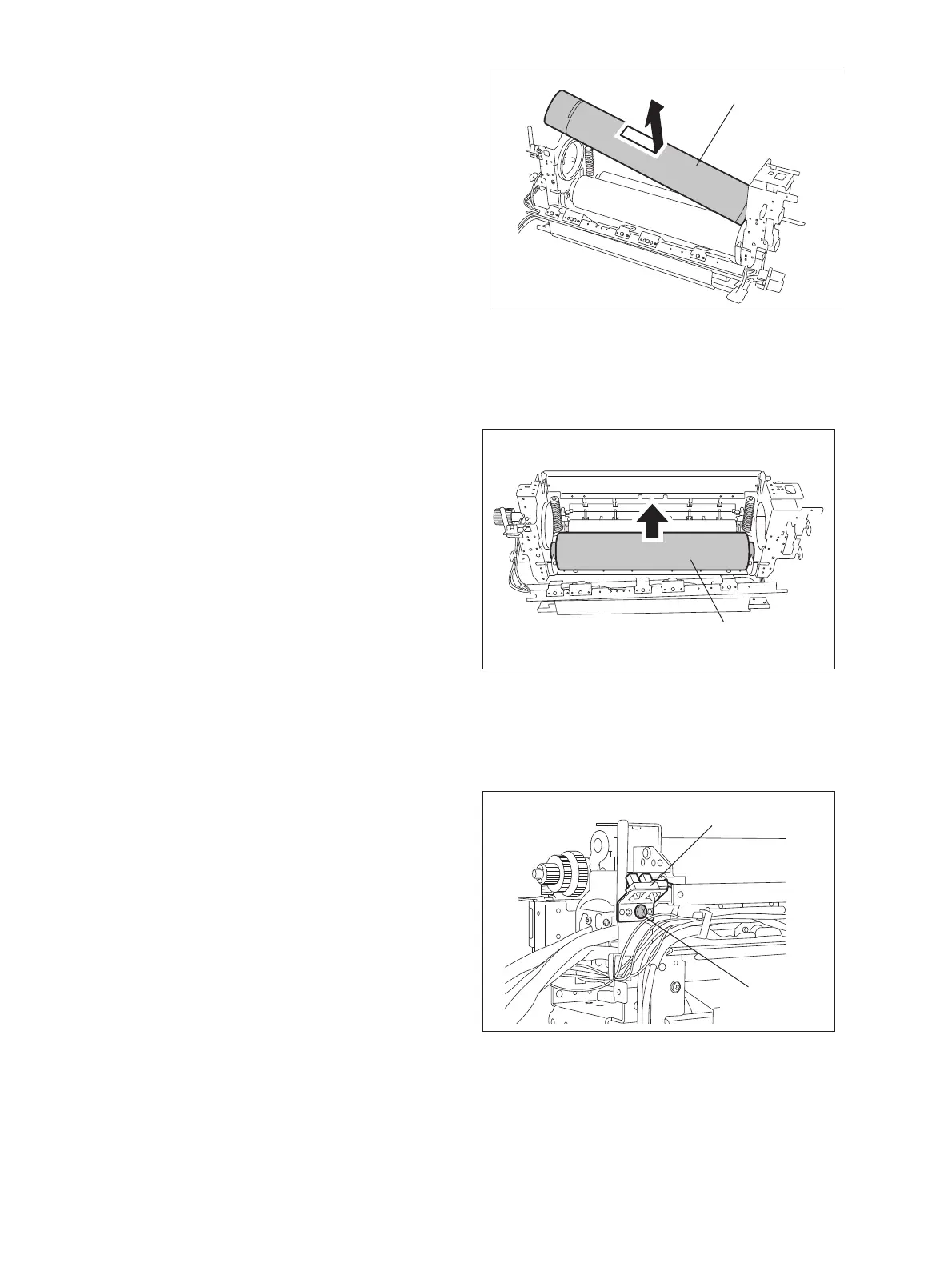

Fig. 4-296
(1) Take off the fuser roller.
( P.4-104 "4.10.8 Fuser roller")
(2) Take off the pressure roller with its bearing.
(3) Remove 2 bearings and 2 collars from the
pressure roller.
Fig. 4-297
(1) Take off the fuser unit.
( P.4-96 "4.10.2 Fuser unit")
(2) Take off the cleaning web unit.
( P.4-97 "4.10.3 Cleaning web unit /
Cleaning web")
(3) Take off the fuser unit cover (front).
(4) Disconnect 1 connector and remove 1 screw
to take off the web detection sensor with its
bracket.
(5) Release the latch of the sensor to take off the
web detection sensor.
Fig. 4-298
Fuser roller
Pressure roller
Web detection sensor
Screw
