4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 17

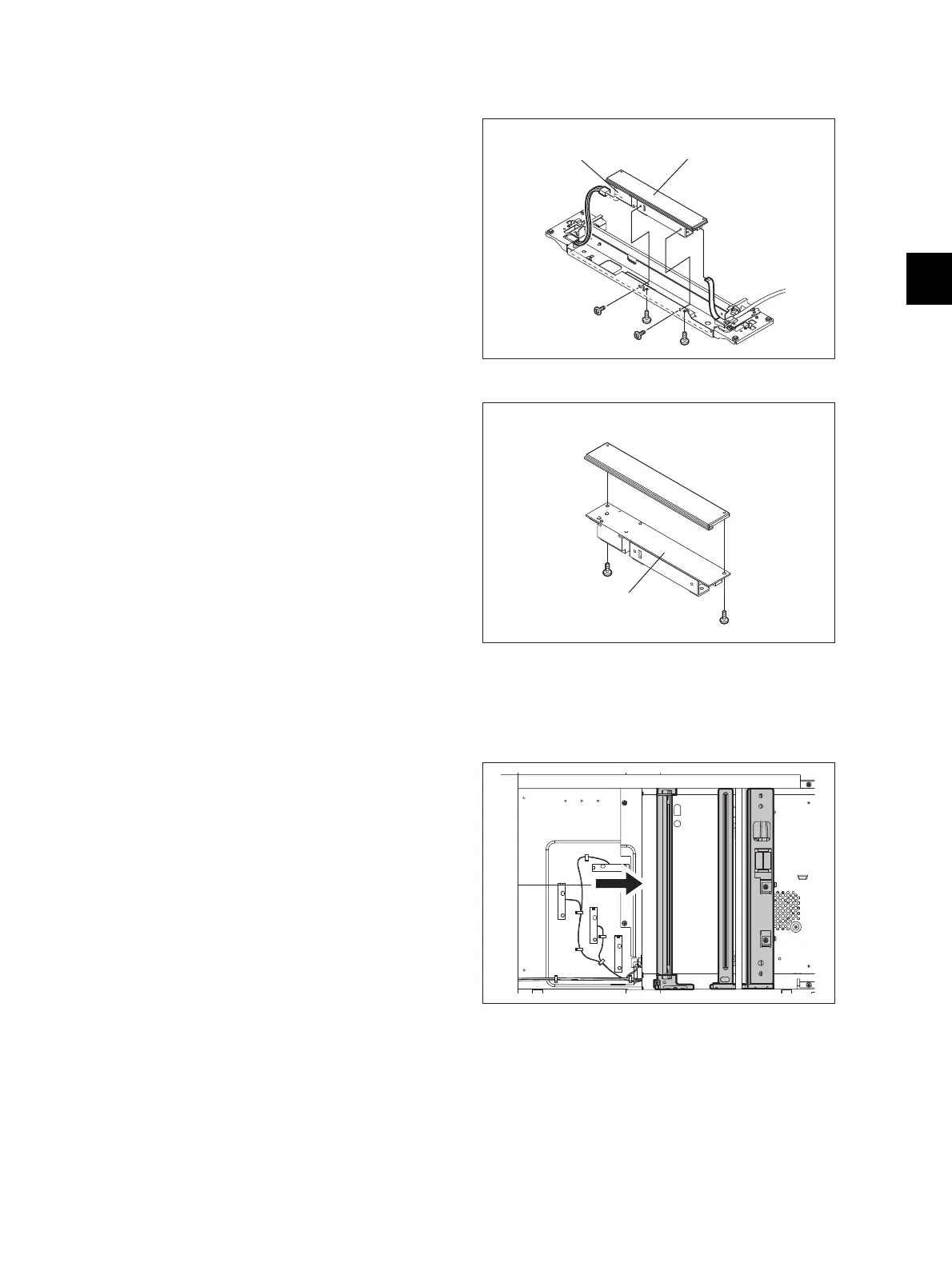

4.3.7 Lamp inverter board (INV-EXP)
4.3.8 Exposure lamp cooling fan-1 (M36)
(1) Take off the carriage-1.
( P.4-13 "4.3.5 Carriage-1")
(2) Disconnect 2 connectors.
(3) Remove 4 screws to take off the inverter
cover and inverter board.
Fig. 4-46
(4) Remove 2 screws to take off the inverter
board.
Fig. 4-47
(1) Take off the original glass.
( P.4-11 "4.3.1 Original glass")
(2) Move the carriage-1 to the right side.
Fig. 4-48
Inverter cover
Inverter board
Inverter board
To Next Page
