Toshiba e-STUDIO556 User Manual

4
© 2012 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO556/656/756/856(Ver03)
DISASSEMBLY AND REPLACEMENT
4 - 49

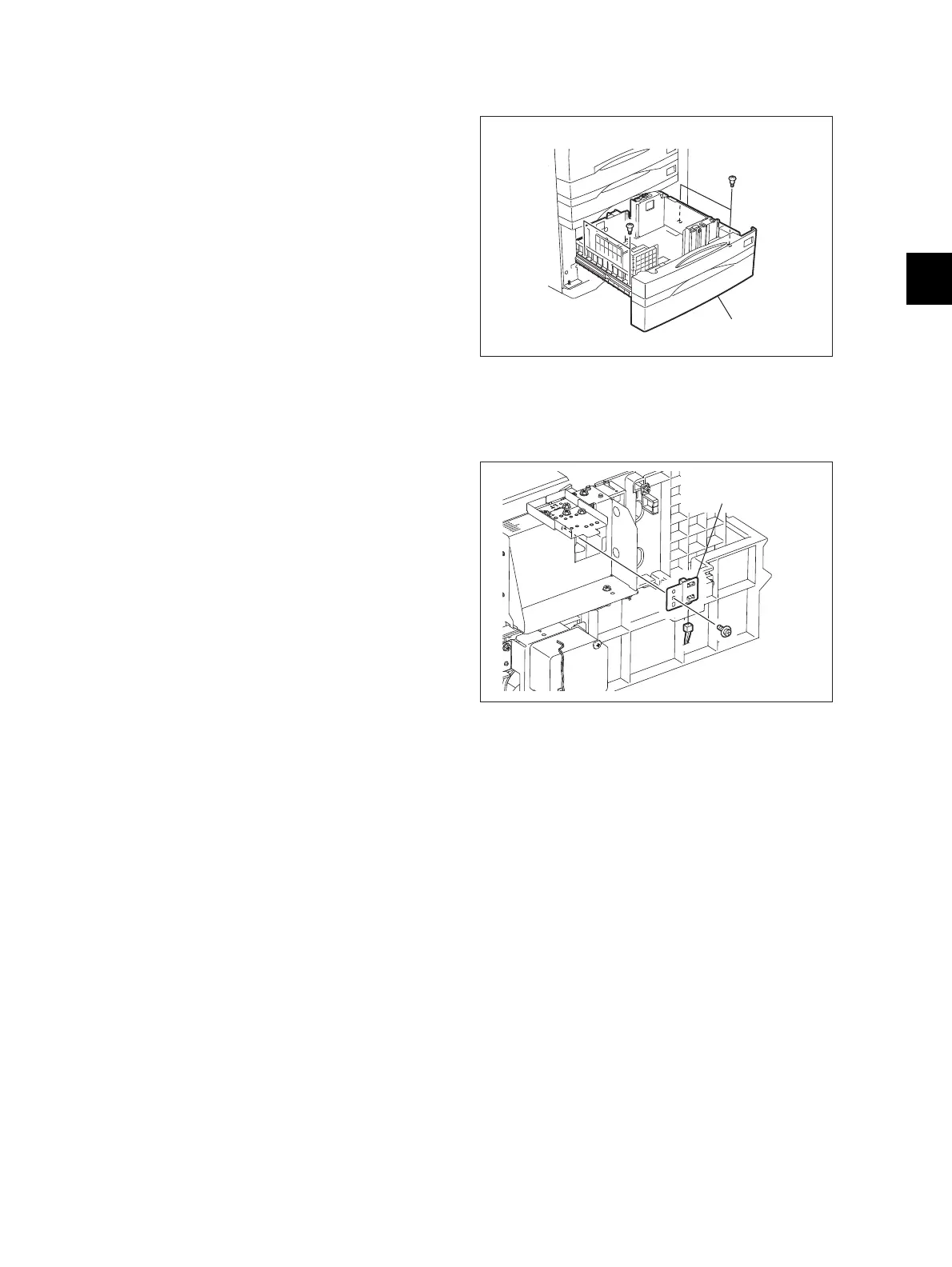

4.5.10 Tandem LCF
[ 1 ] Standby side mis-stacking sensor (S72)
(1) Pull out the tandem LCF
(2) Remove 4 screws and take off the tandem
LCF.
Fig. 4-139
(1) Remove 1 screw and take off the bracket.
(2) Disconnect 1 connector, release the latch
and take off the Standby side mis-stacking
sensor.
Fig. 4-140
Tandem LCF
Standby side
mis-stacking sensor
