e-STUDIO556/656/756/856(Ver03) © 2012 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY AND REPLACEMENT
4 - 92

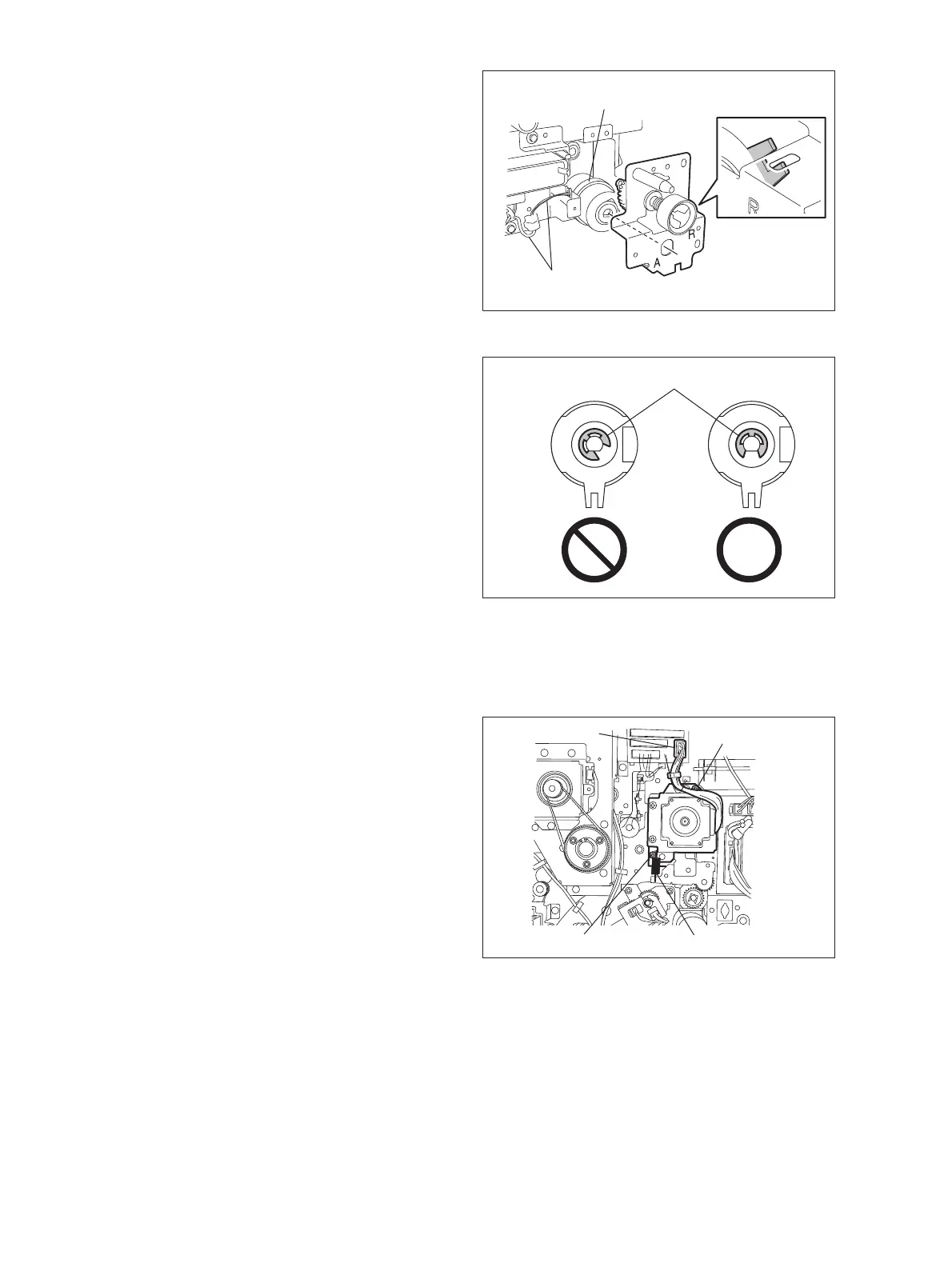

4.9.9 Transfer belt drive motor unit / Transfer belt motor (M14)
(4) Take off the driving clutch from the shaft.
Fix the stopper of the clutch in the "R"
marked side.
Fig. 4-260
1. When fixing the clutch with the E-ring, be
sure that the one side of the E-ring latch
does not overlap the flat part of the shaft.
2. Be sure that the stopper of the clutch is
inserted into the groove of the bracket.
3. Make sure that the bearing and gear are
installed correctly.
Fig. 4-261
(1) Take off the rear cover.
( P.4-5 "4.1.13 Rear cover")
(2) Remove 3 screws to take off the flywheel.
(3) Disconnect 1 connector, and then remove 1
spring and 2 screws to take off the drive
motor unit.
(4) Remove 3 screws to take off the bracket.
(5) Remove 2 screws to take off the transfer belt
motor.
When installing the motor, fix it by rotating it
counterclockwise.
Fig. 4-262
Black
Horizontal transport section
driving clutch-1
E-ring
Connector
Screw
Screw
Spring
To Next Page
